No. 1 Test, Code 11, Ecu (+B) Circuit (V6)

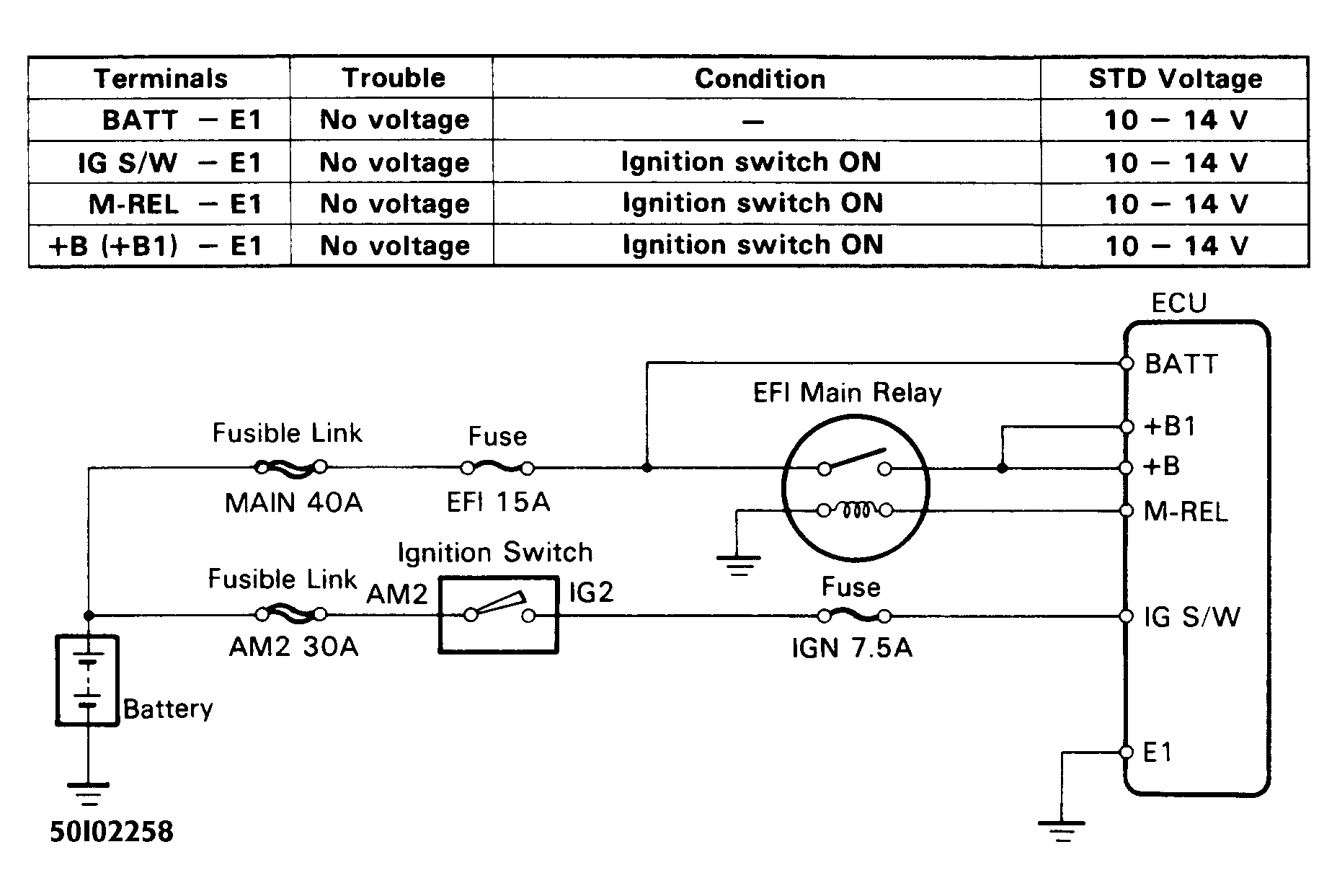

Fig 1: No. 1 Test, Code 11 Schematic, ECU (+B) Circuit (V6)
G50I02258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: No. 1 Test, Code 11 Flow Chart (1 Of 4), ECU (+B) Ckt (V6)
G50A02259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

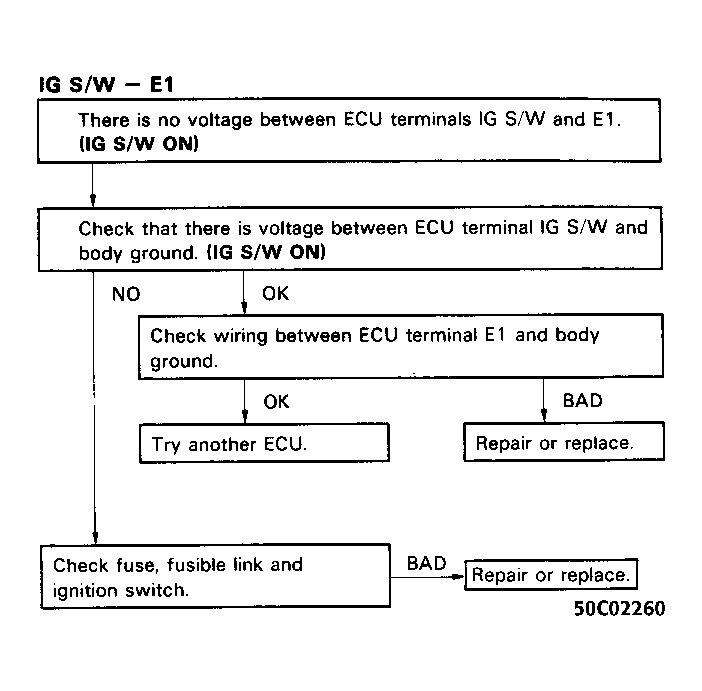

Fig 3: No. 1 Test, Code 11 Flow Chart (2 Of 4), ECU (+B) Ckt (V6)
G50C02260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

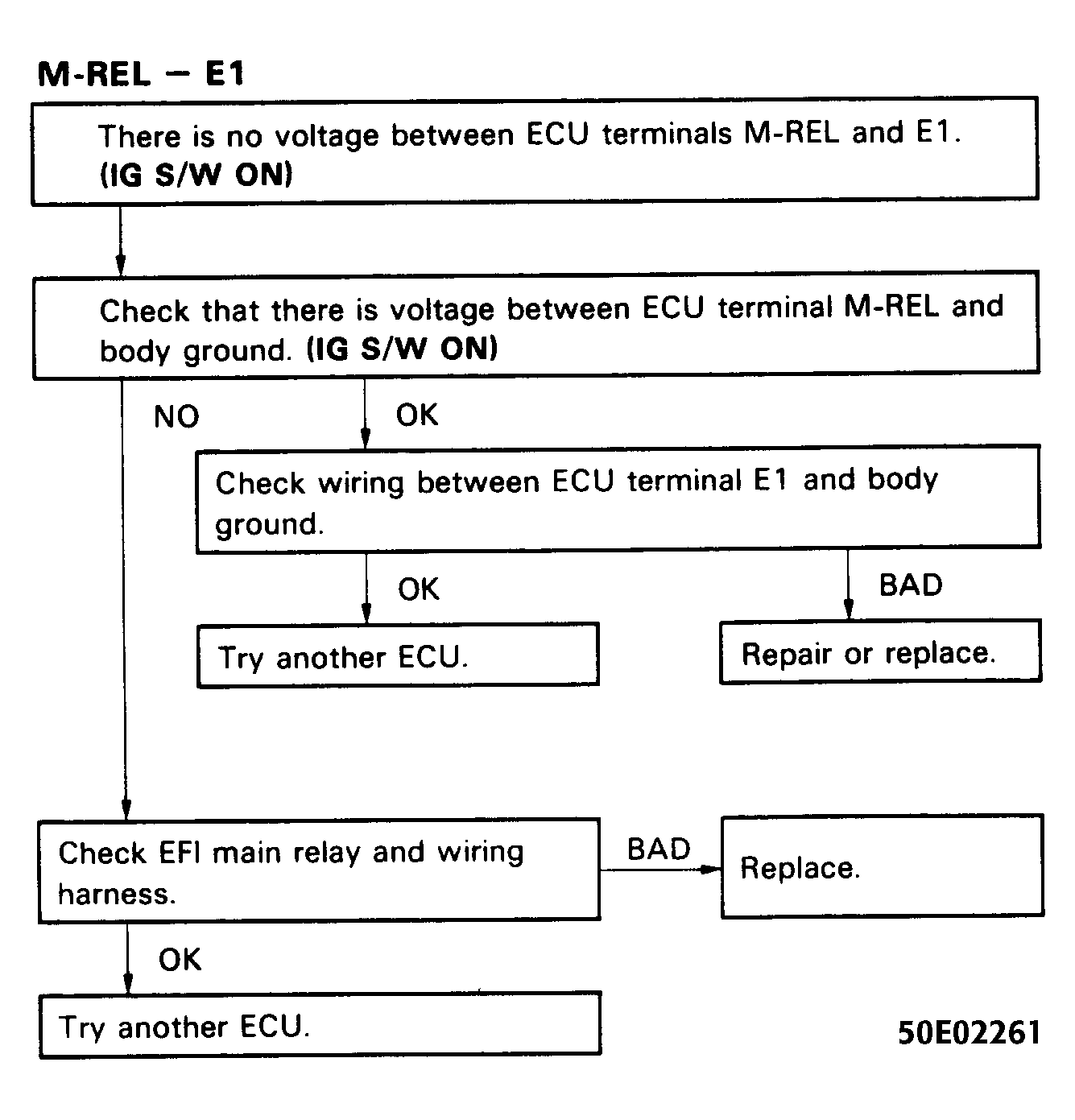

Fig 4: No. 1 Test, Code 11 Flow Chart (3 Of 4), ECU (+B) Ckt (V6)
G50E02261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

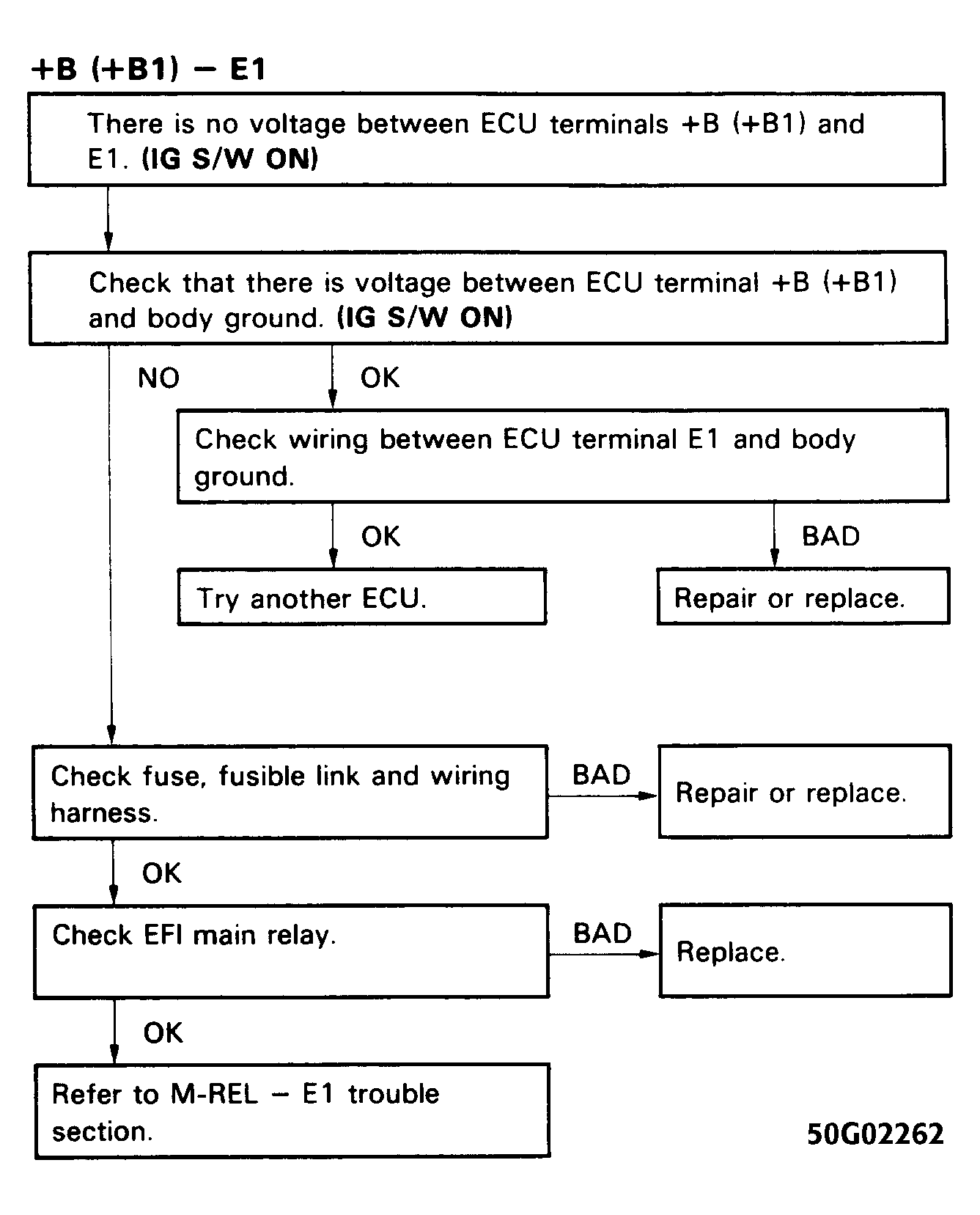

Fig 5: No. 1 Test, Code 11 Flow Chart (4 Of 4), ECU (+B) Ckt (V6)
G50G02262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
