No. 8 Test, Code 41, TPS Signal (4-CYL. W/ECT & V6)

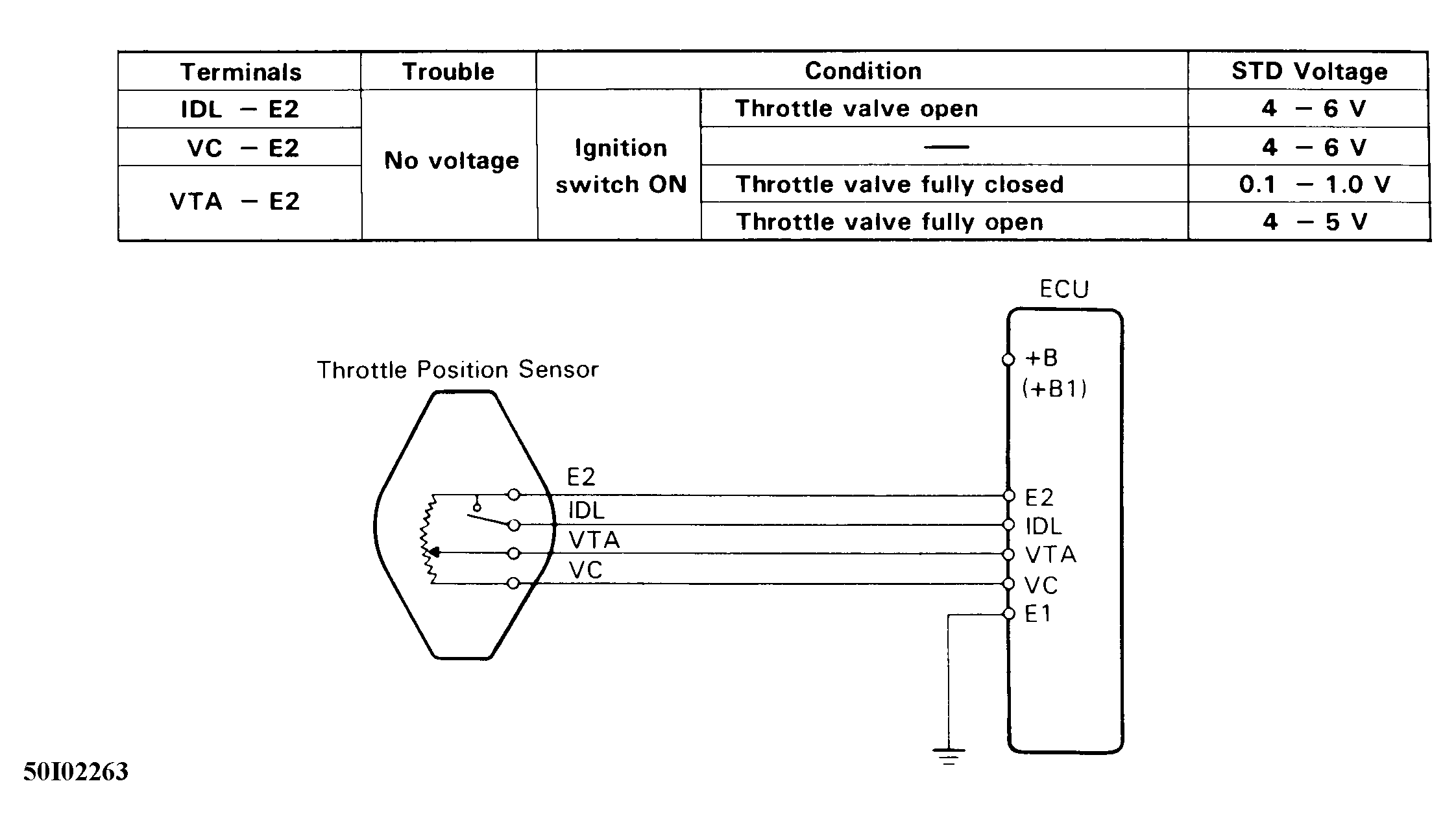

Fig 1: No. 8 Test, Code 41 Schematic, TPS Sig. (4-Cyl. W/ECT & V6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

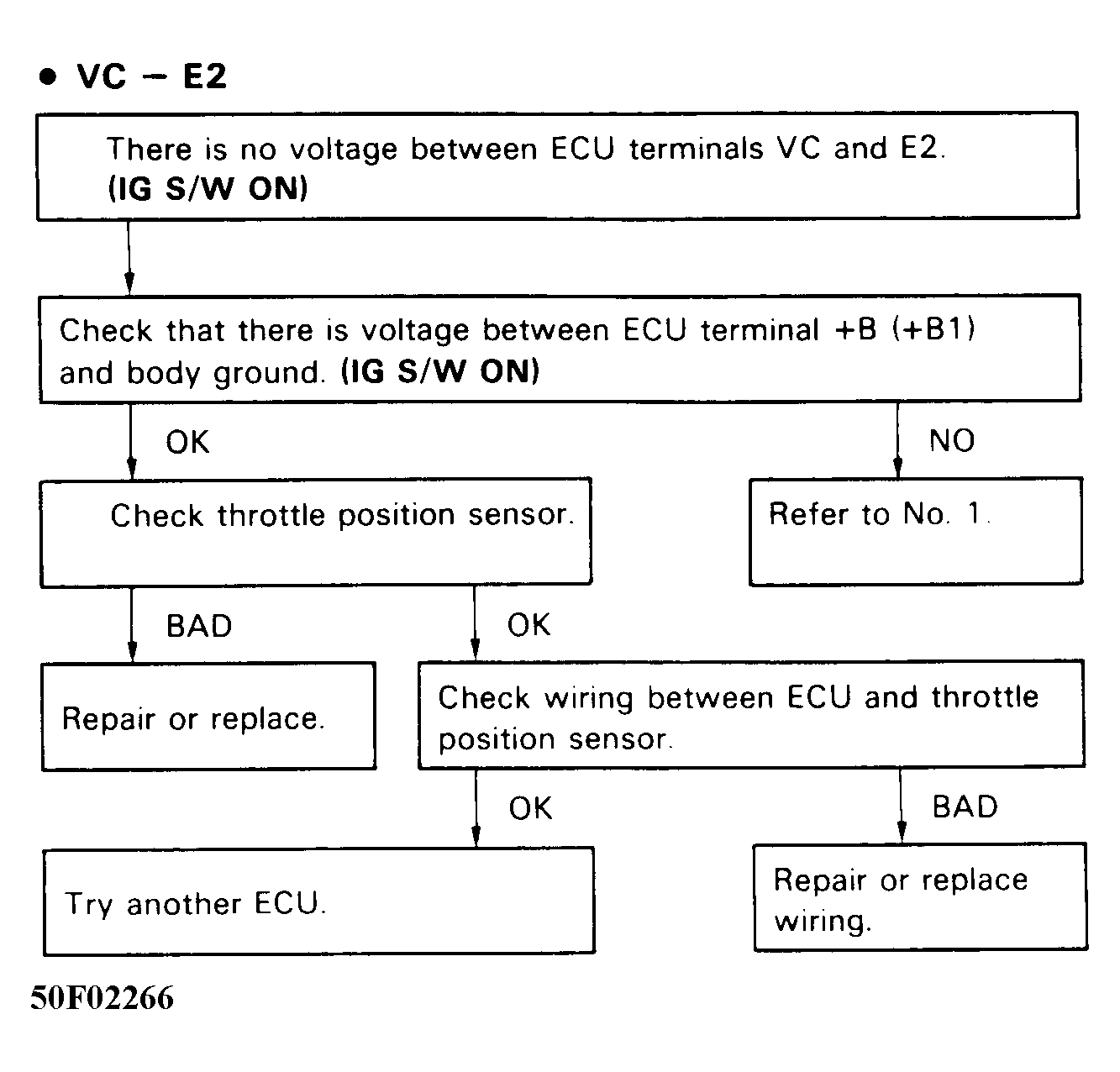

Fig 2: No. 8 Test, Code 41 Flow Chart (1 of 3), TPS Signal (4-Cyl. W/ECT & V6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

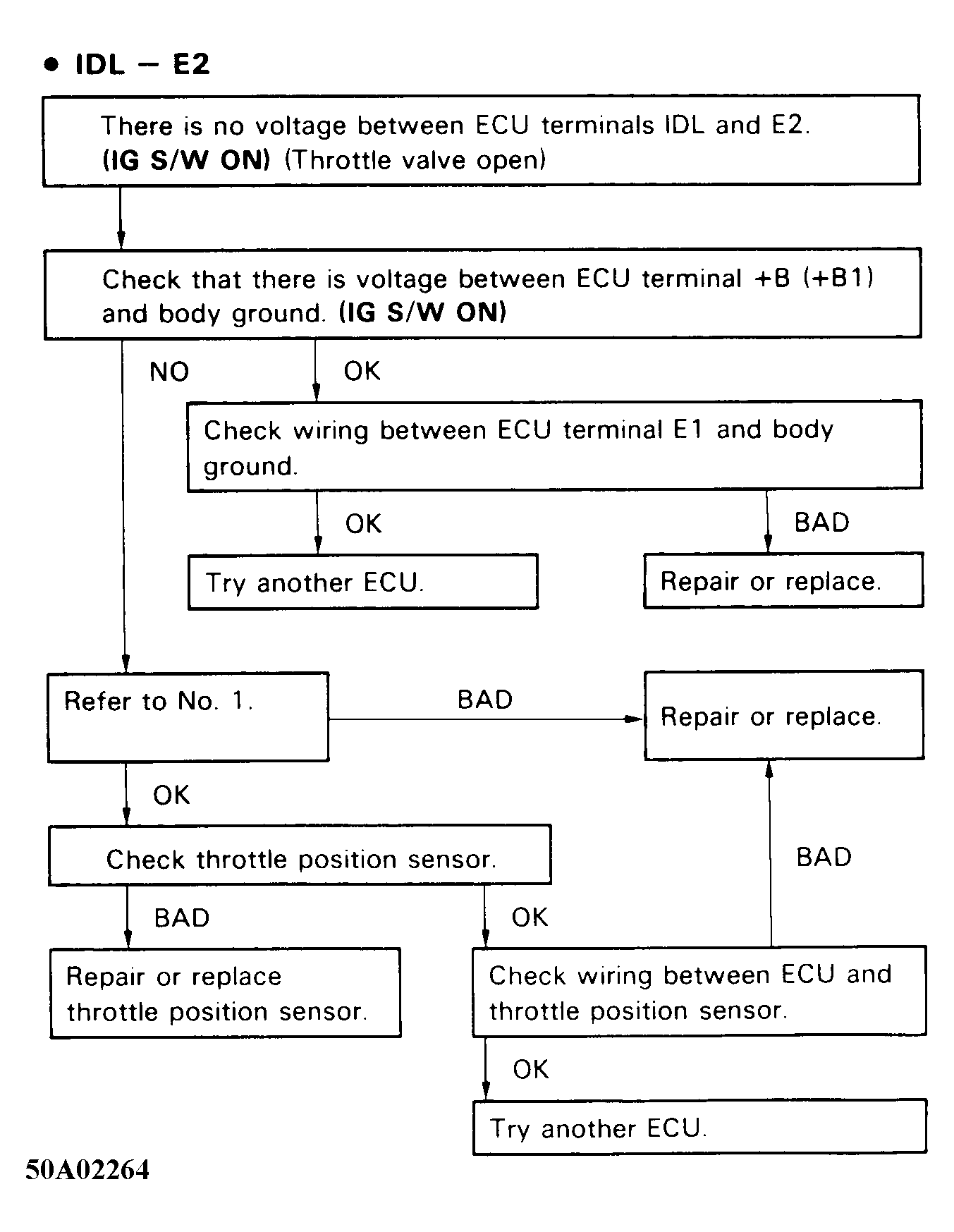

Fig 3: No. 8 Test, Code 41 Flow Chart (2 of 3), TPS Signal (4-Cyl. W/ECT & V6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

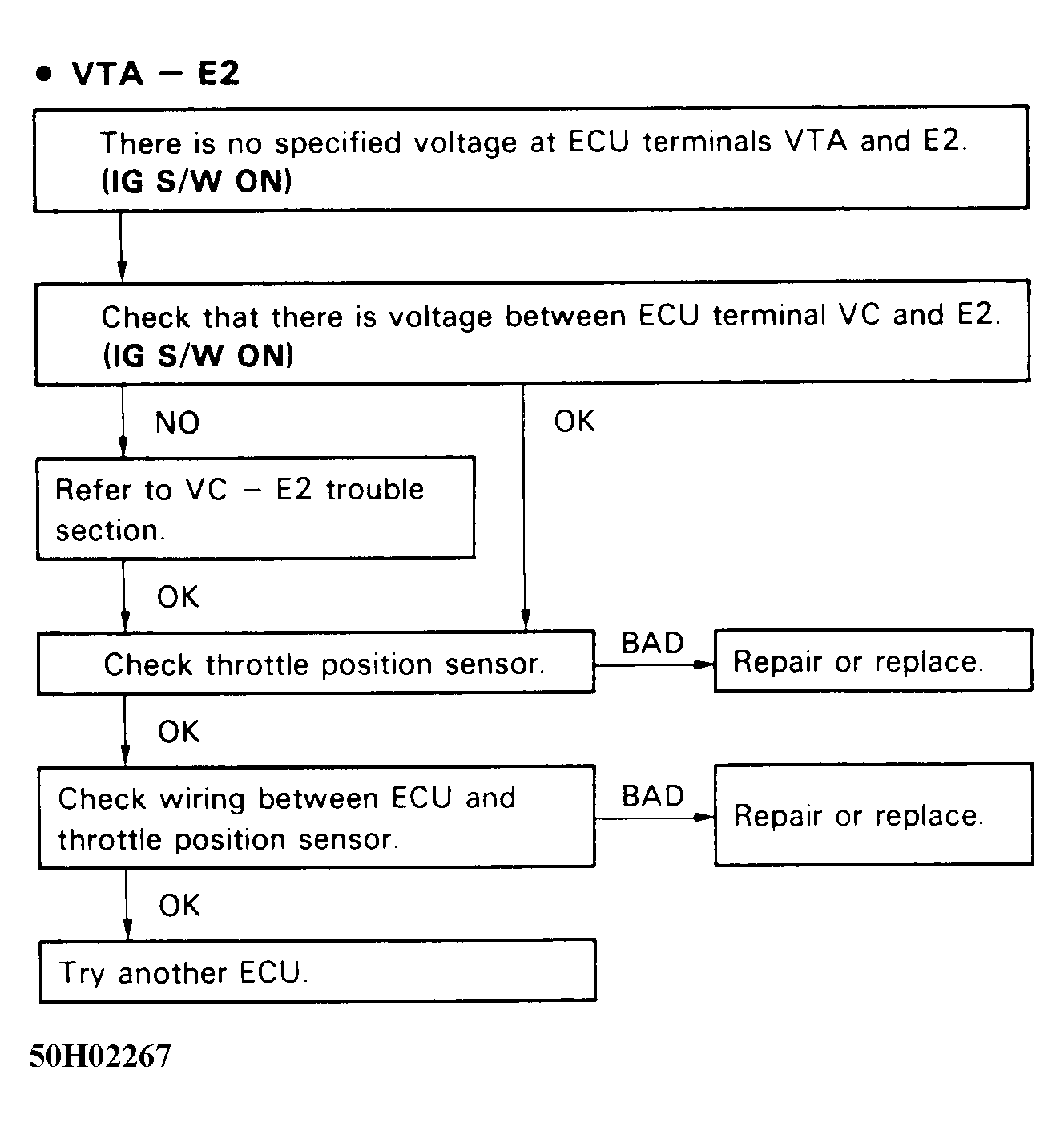

Fig 4: No. 8 Test, Code 41 Flow Chart (3 of 3), TPS Signal (4-Cyl. W/ECT & V6)

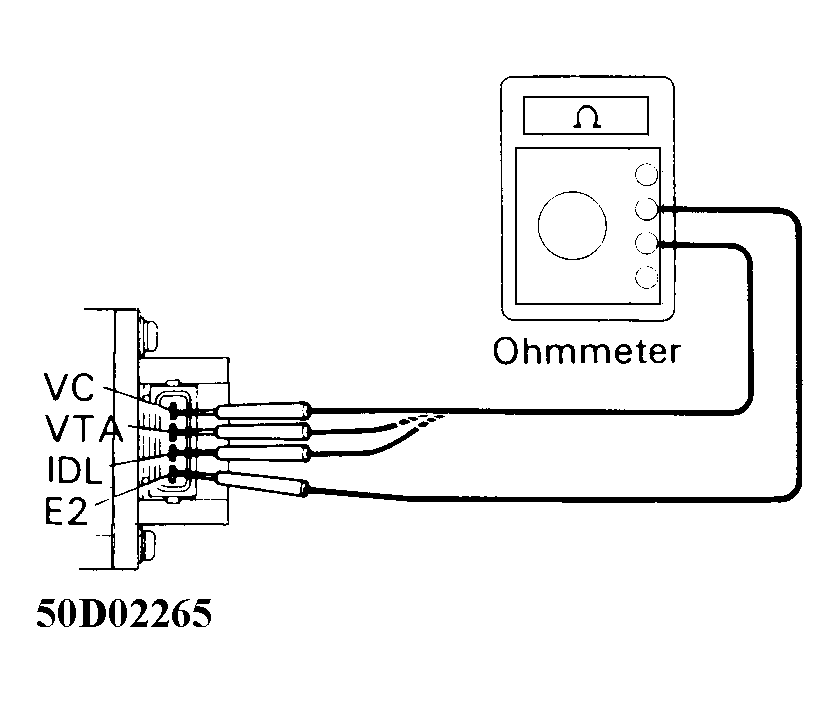

Fig 5: No. 8 Test, Code 41, TPS Signal Test (4-Cyl. W/ECT & V6)
