No. 8 Test, Code 41, TPS Signal (4-CYL. W/O ECT)

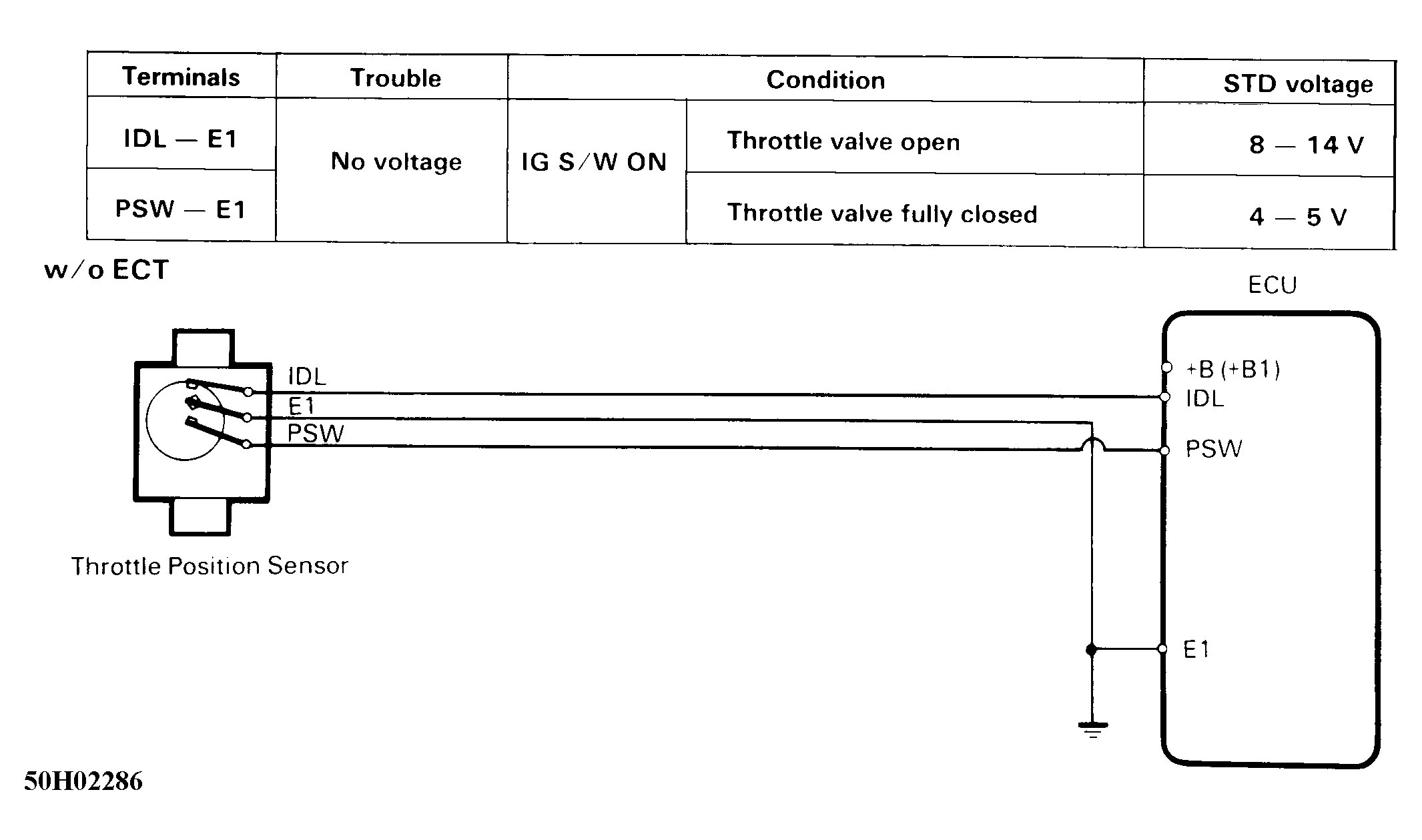

Fig 1: No. 8 Test, Code 41 Schematic, TPS Signal (4-Cyl. W/O ECT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

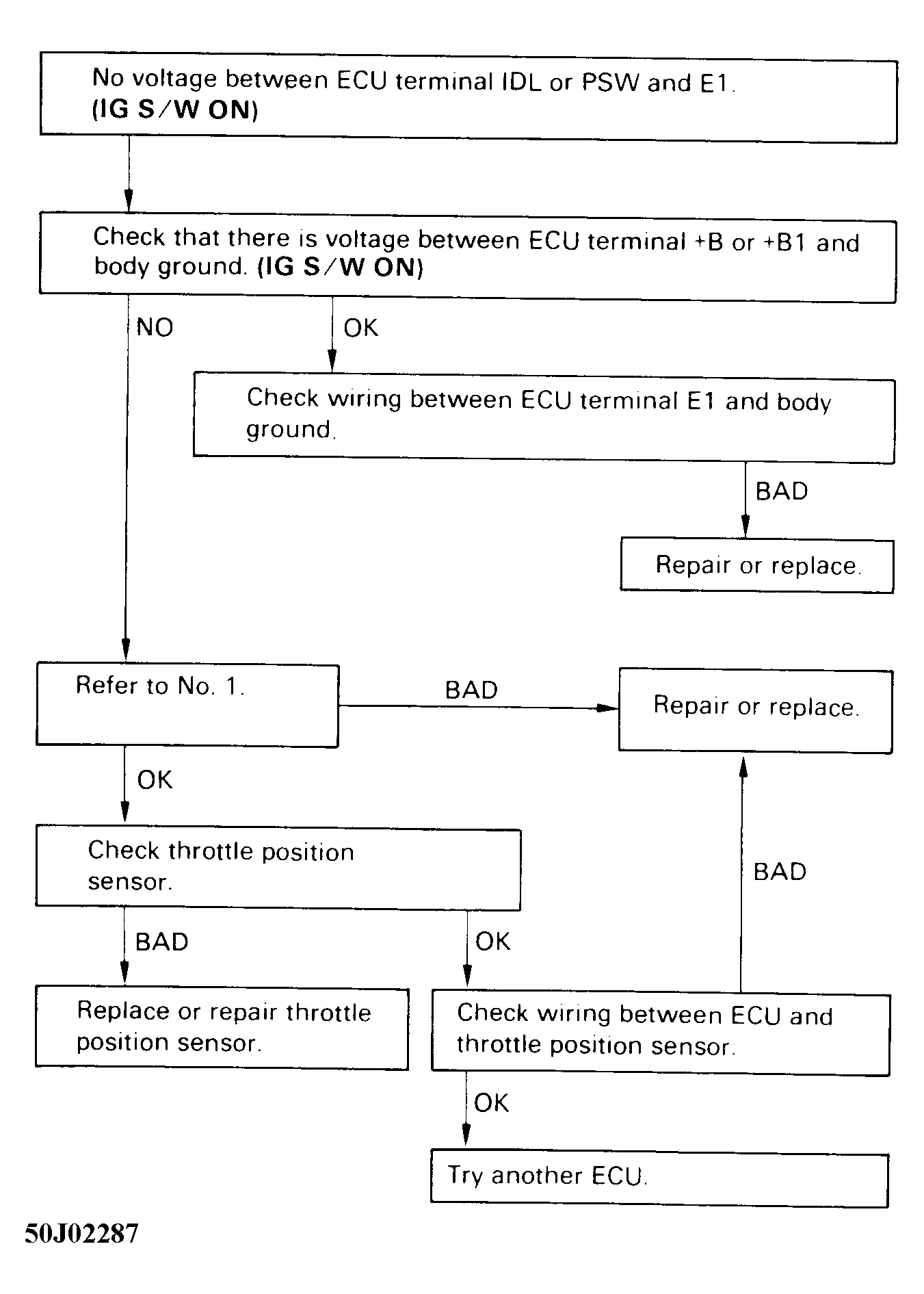

Fig 2: No. 8 Test, Code 41 Flow Chart, TPS Signal (4-Cyl. W/O ECT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

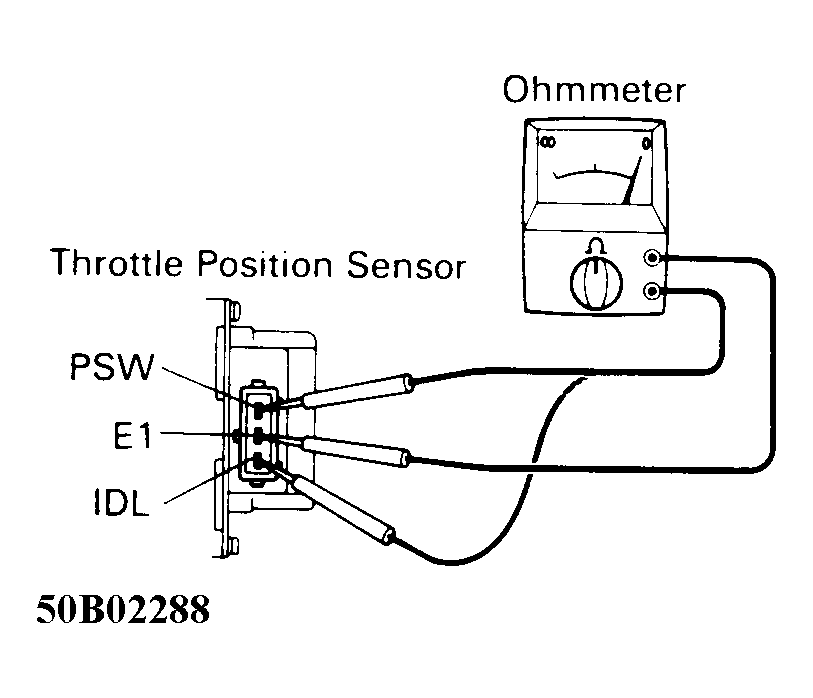

Fig 3: No. 8 Test, Code 41, TPS Signal Test (4-Cyl. W/O ECT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
