Ecu Connector I.D.

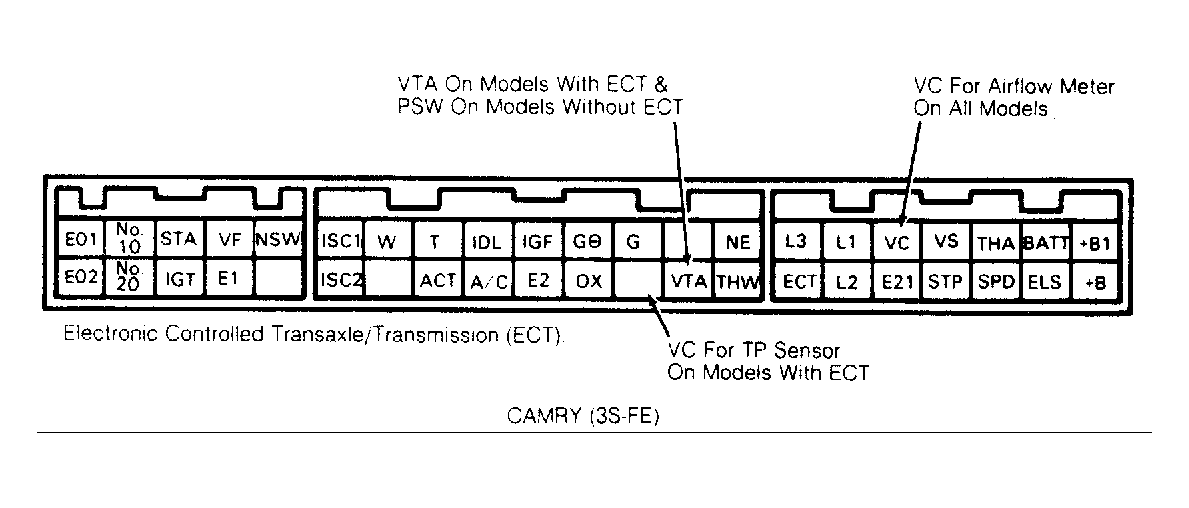

Fig 1: Connector Pin Identification (2WD 3S-FE ECU)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

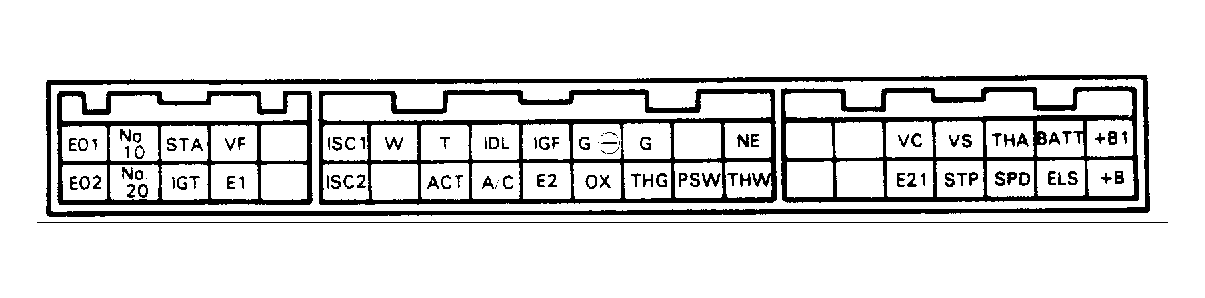

Fig 2: Connector Pin Identification (All TRAC 4WD, 3S-FE ECU)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

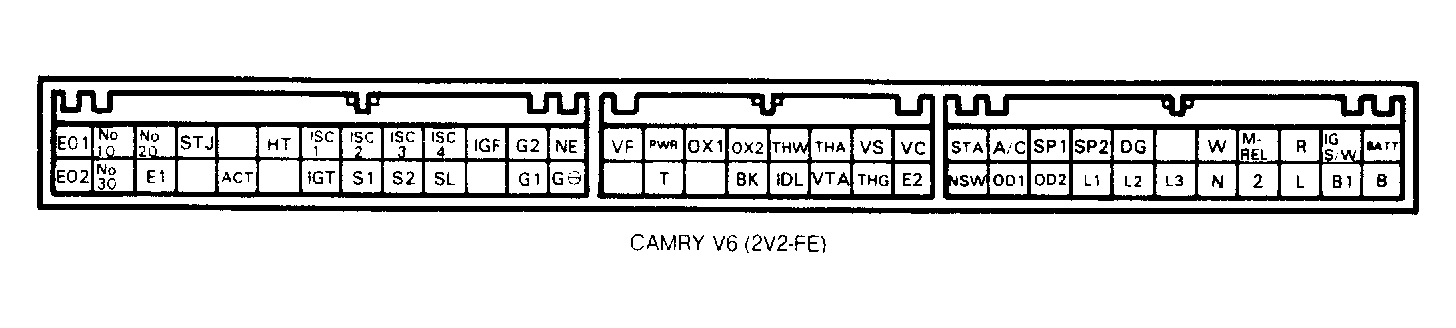

Fig 3: Connector Pin Identification (V6, 2V2-FE ECU)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
