Diagnostic Circuit Check (V6)

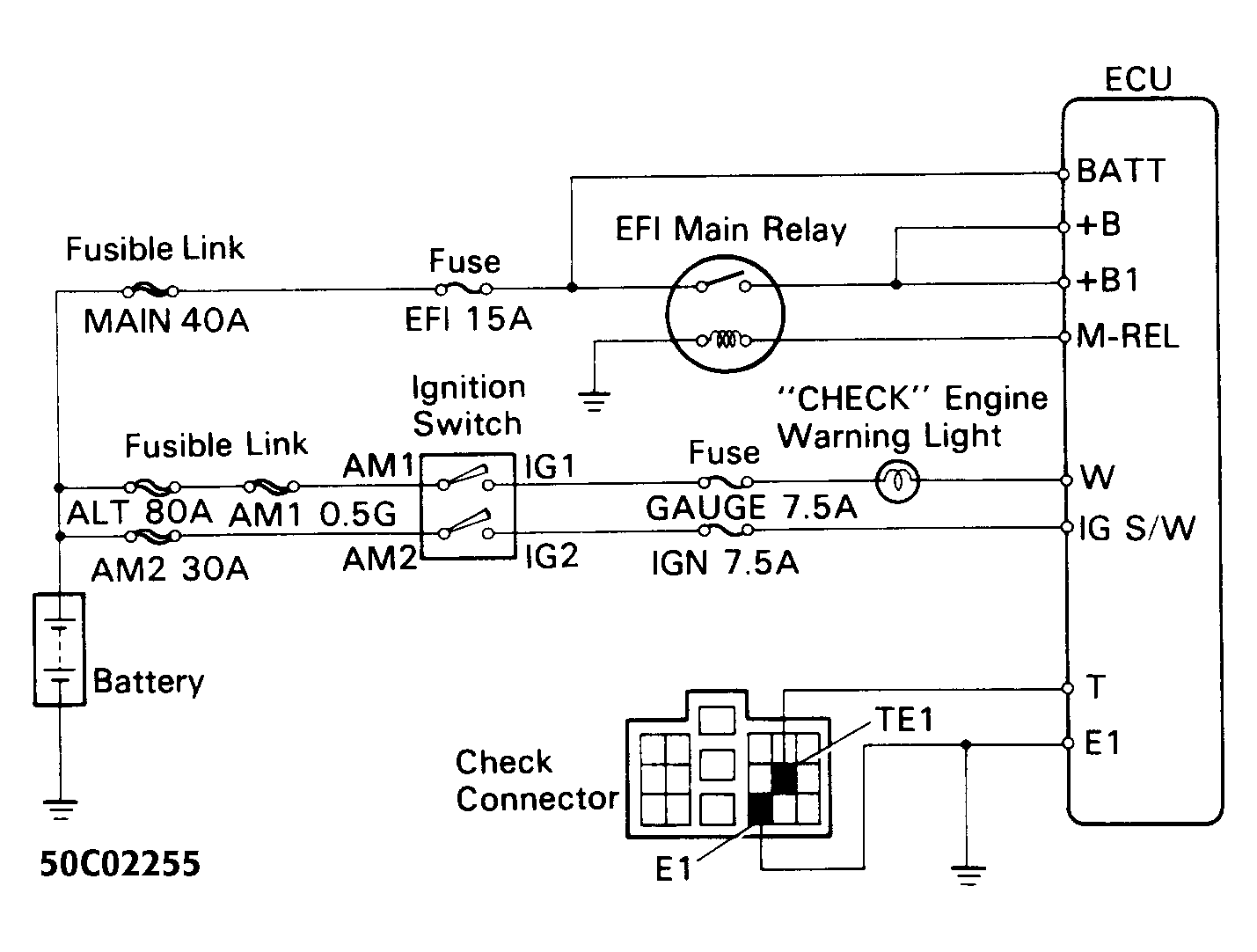

Fig 1: Diagnostic Circuit Check, Schematic (V6)
G50C02255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

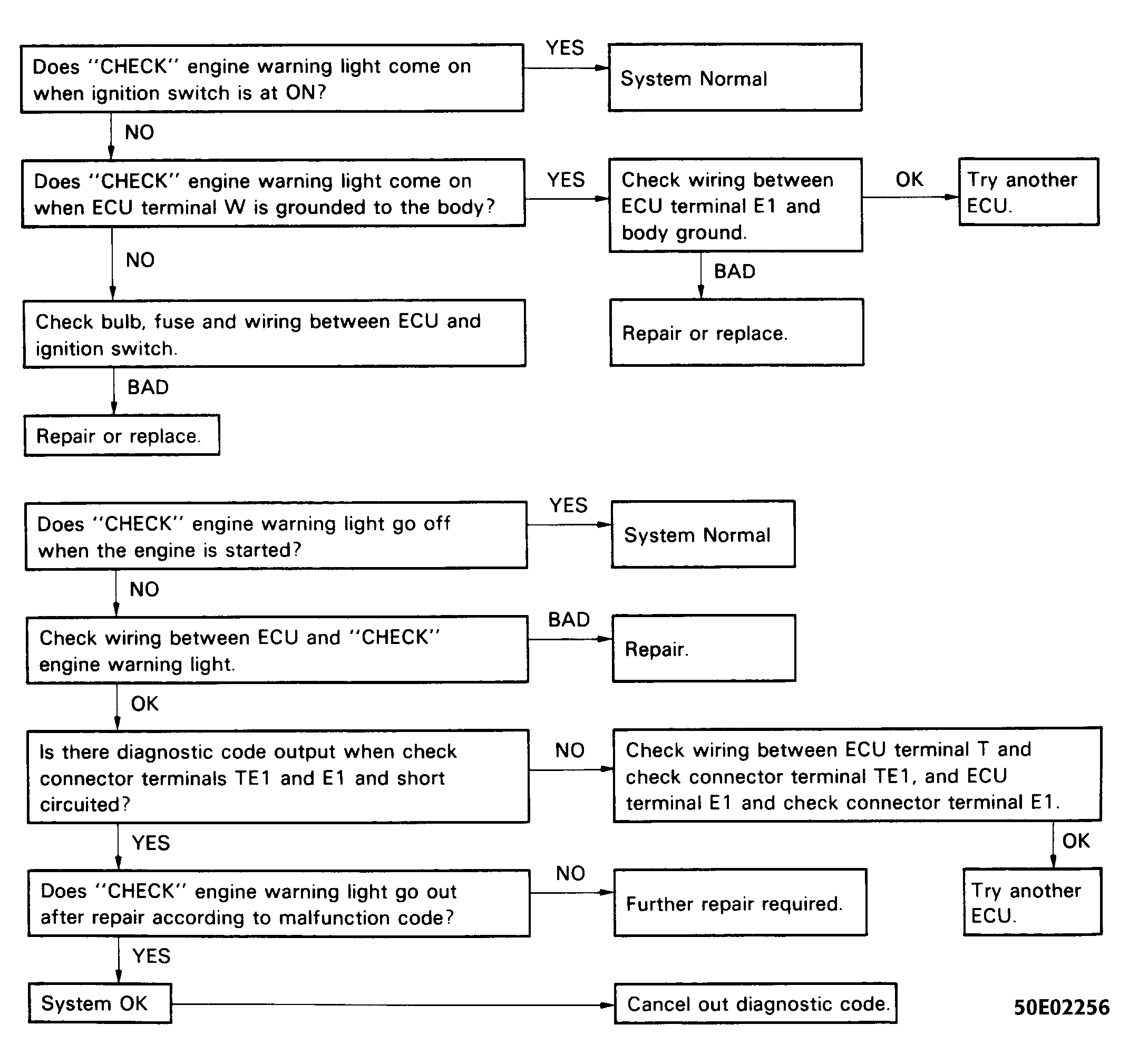

Fig 2: Diagnostic Circuit Check, Flow Chart (V6)
G50E02256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
