No. 4 Test, Code 22, Coolant Temp. Sensor Signal
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
No. 4 Test, Code 22, Coolant Temp. Sensor Signal

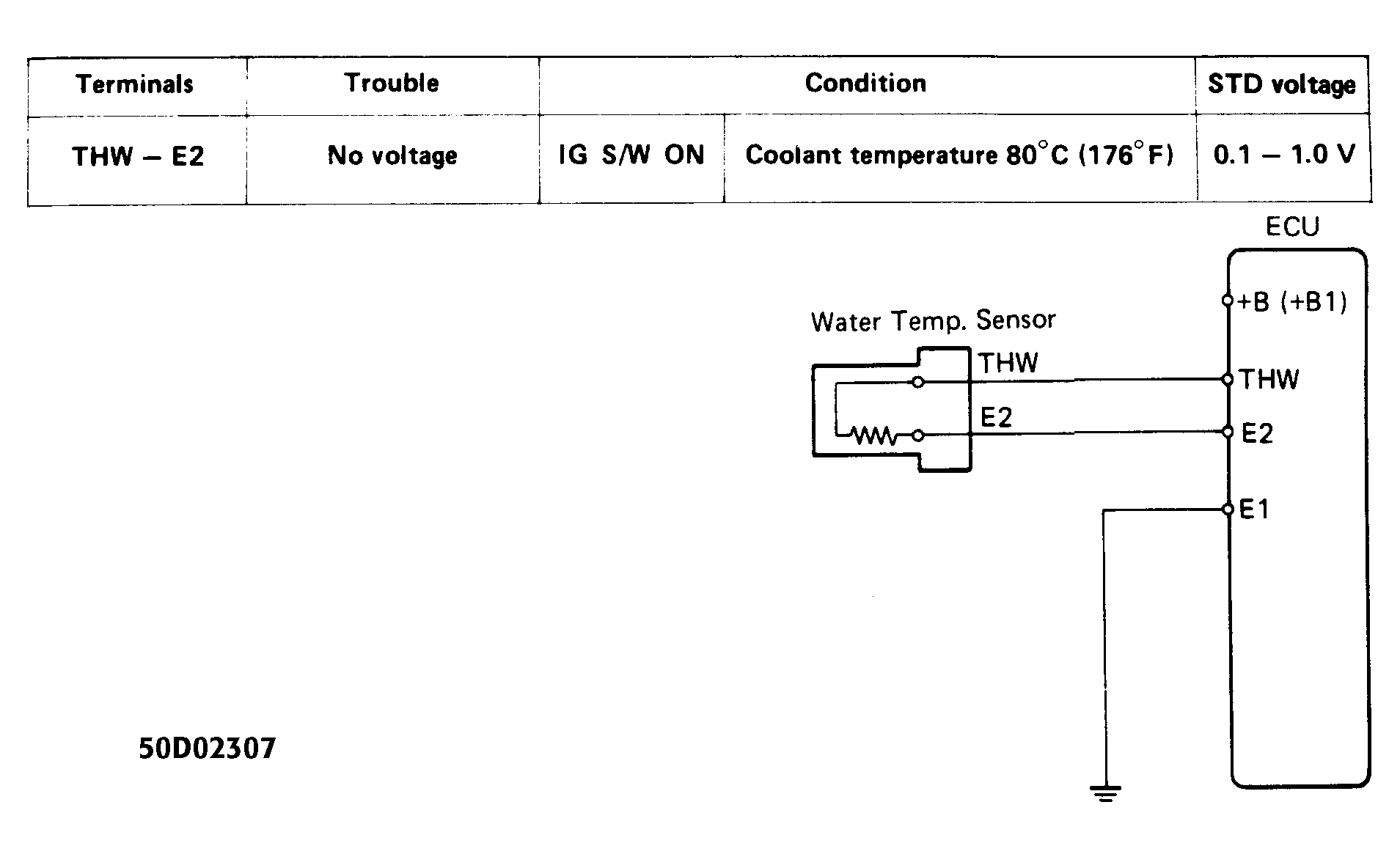

Fig 1: No. 4 Test, Code 22 Schematic, Coolant Temp. Sensor Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

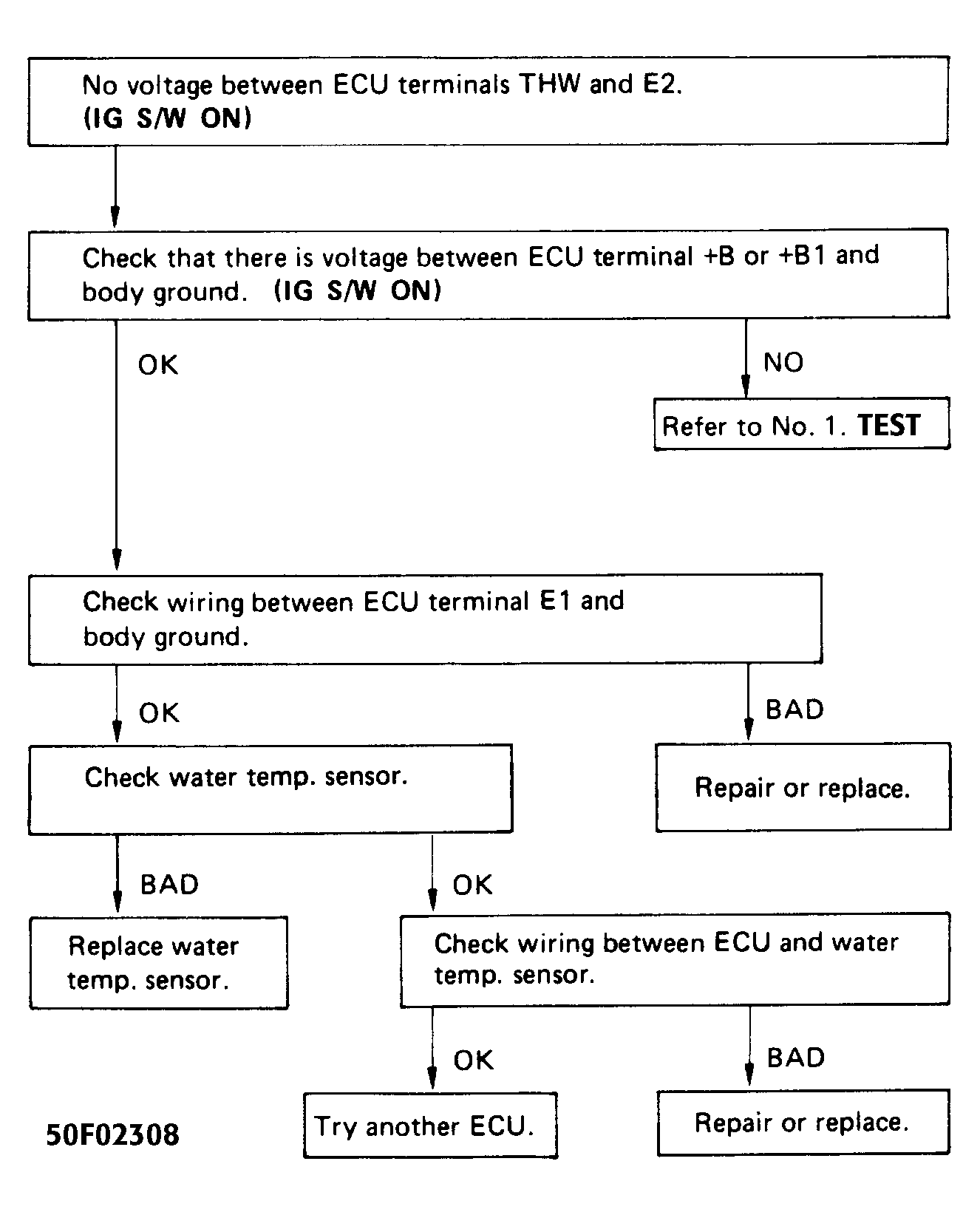

Fig 2: No. 4 Test, Code 22 Flow Chart, Coolant Temp. Sensor Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
