No. 6 Test, Code 31, 32, Airflow Meter Signal

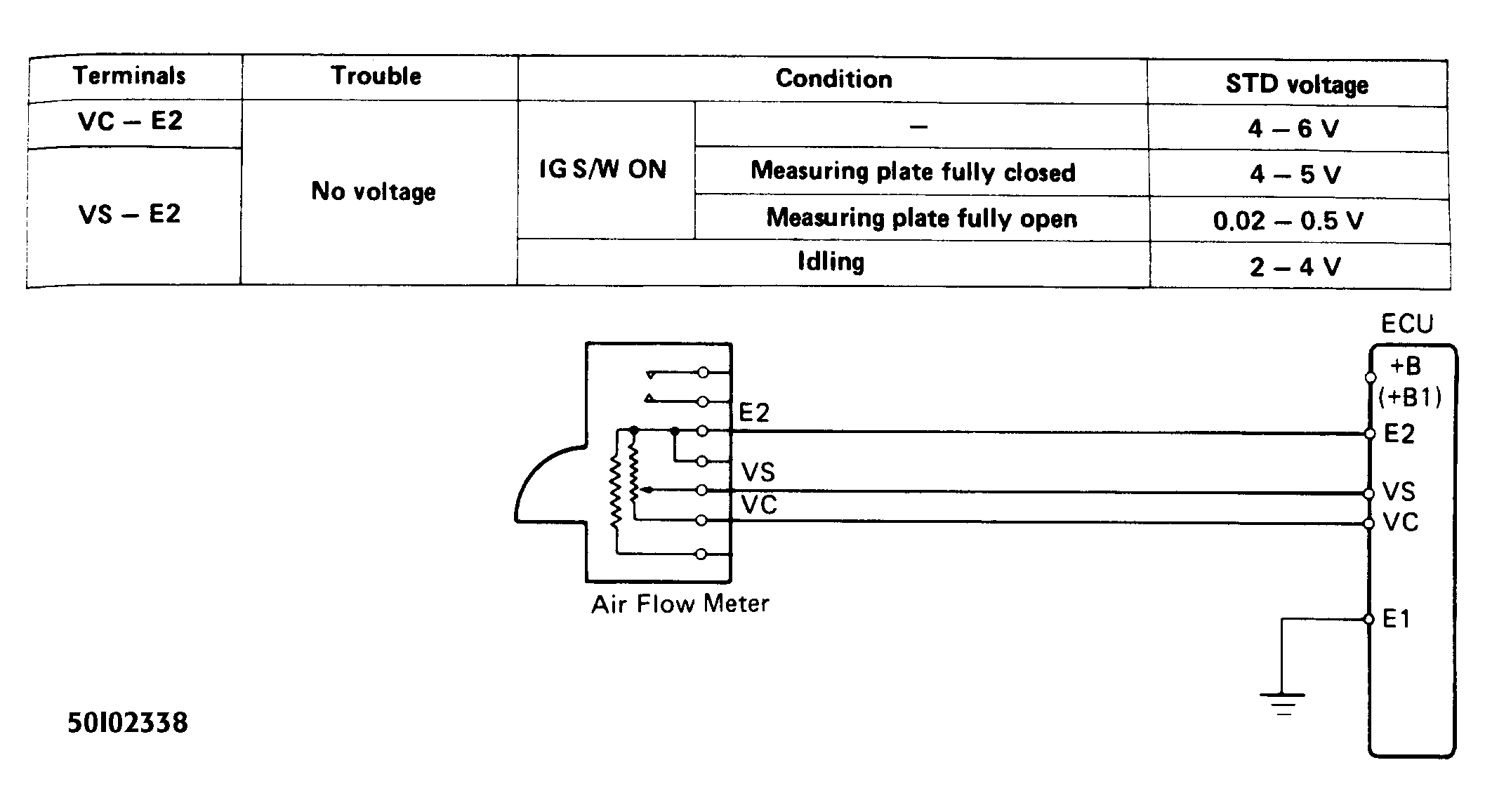

Fig 1: No. 6 Test, Code 31, 32 Schematic, Airflow Meter Signal

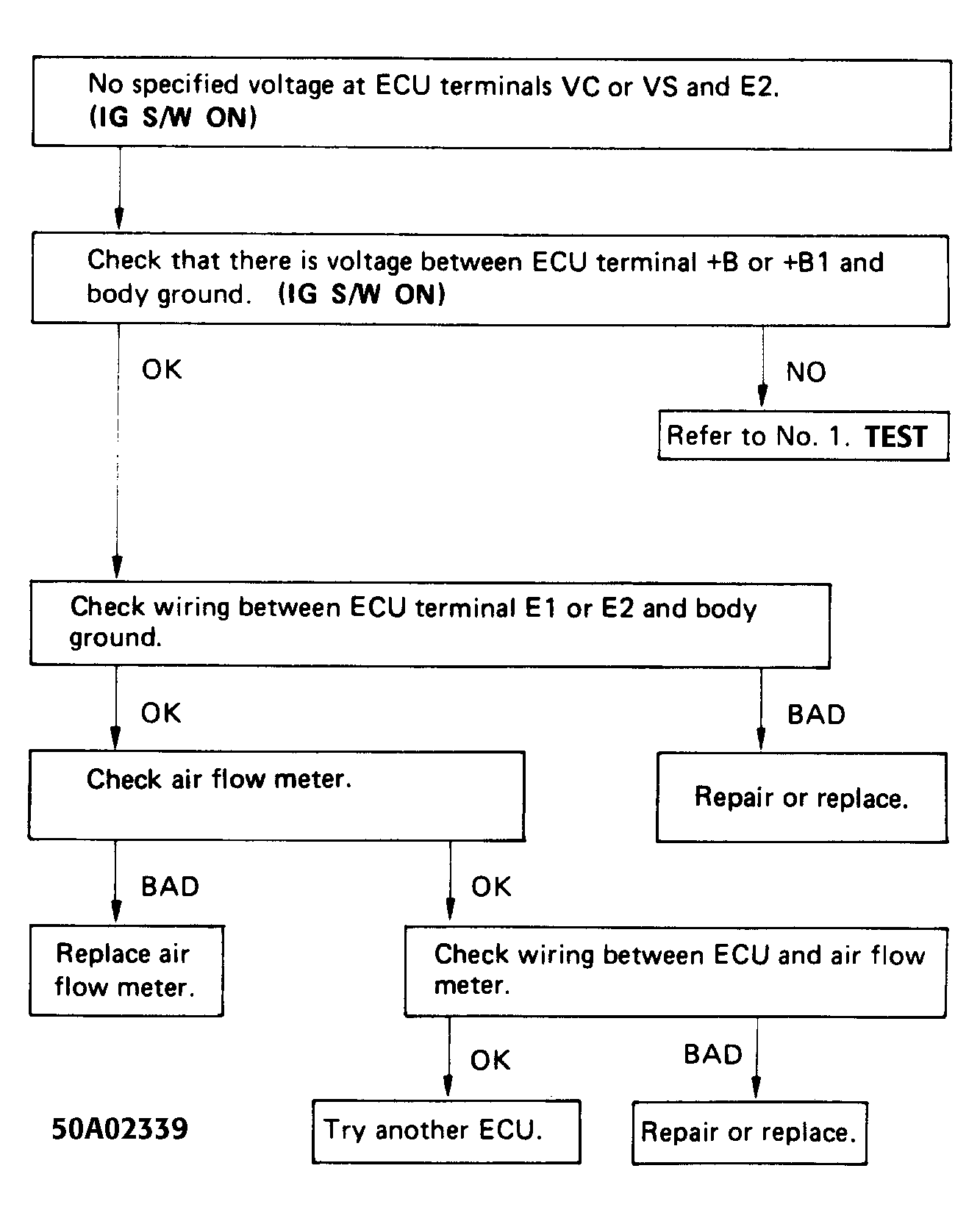

Fig 2: No. 6 Test, Code 31, 32 Flow Chart, Airflow Meter Signal
