Ecu Connector I.D.

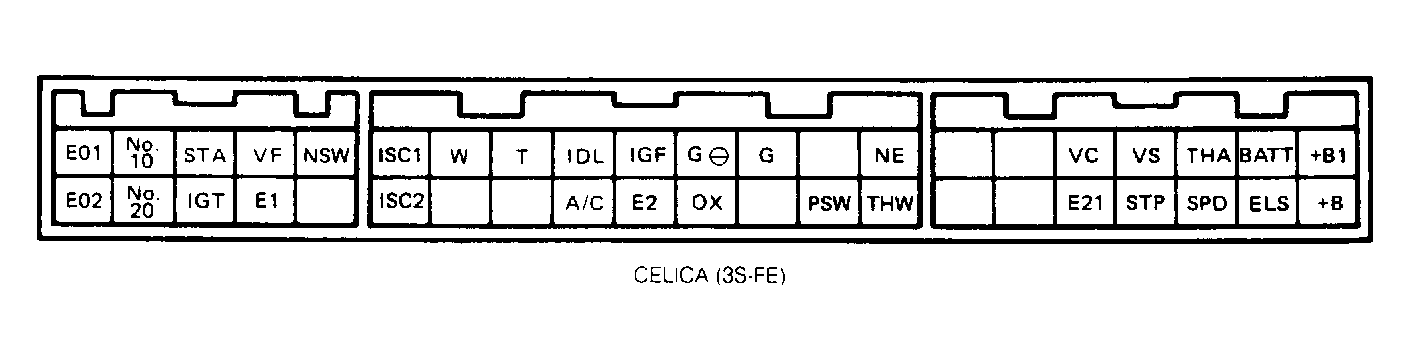

Fig 1: 3S-FE ECU Connector Pin Identification
G95235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

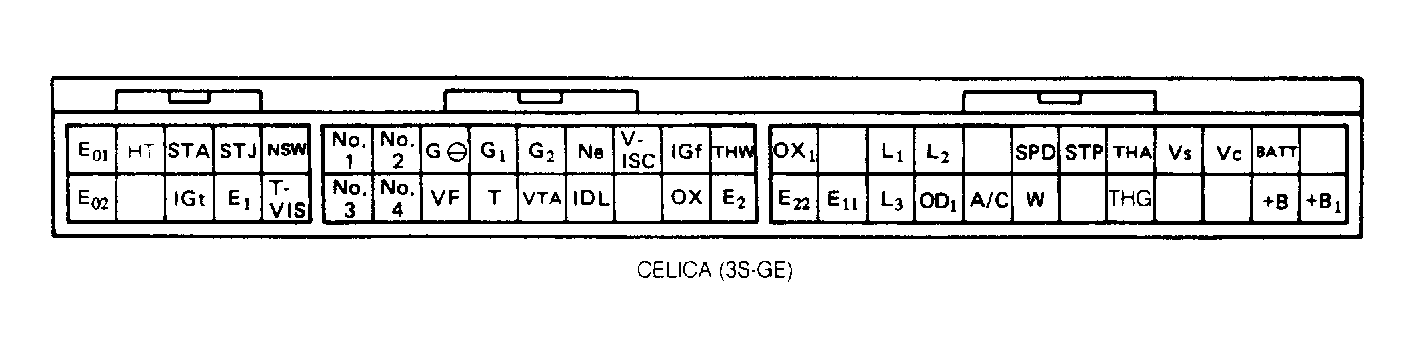

Fig 2: 3S-GE ECU Connector Pin Identification
G95236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

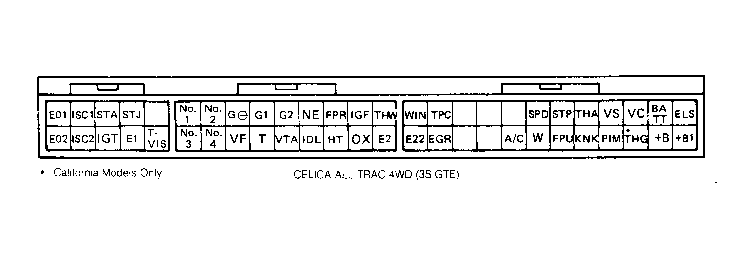

Fig 3: All TRAC 4WD, 3S-GTE ECU Connector Pin Identification
G95237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
