No. 10 Test, Code 71, EGR System Signal

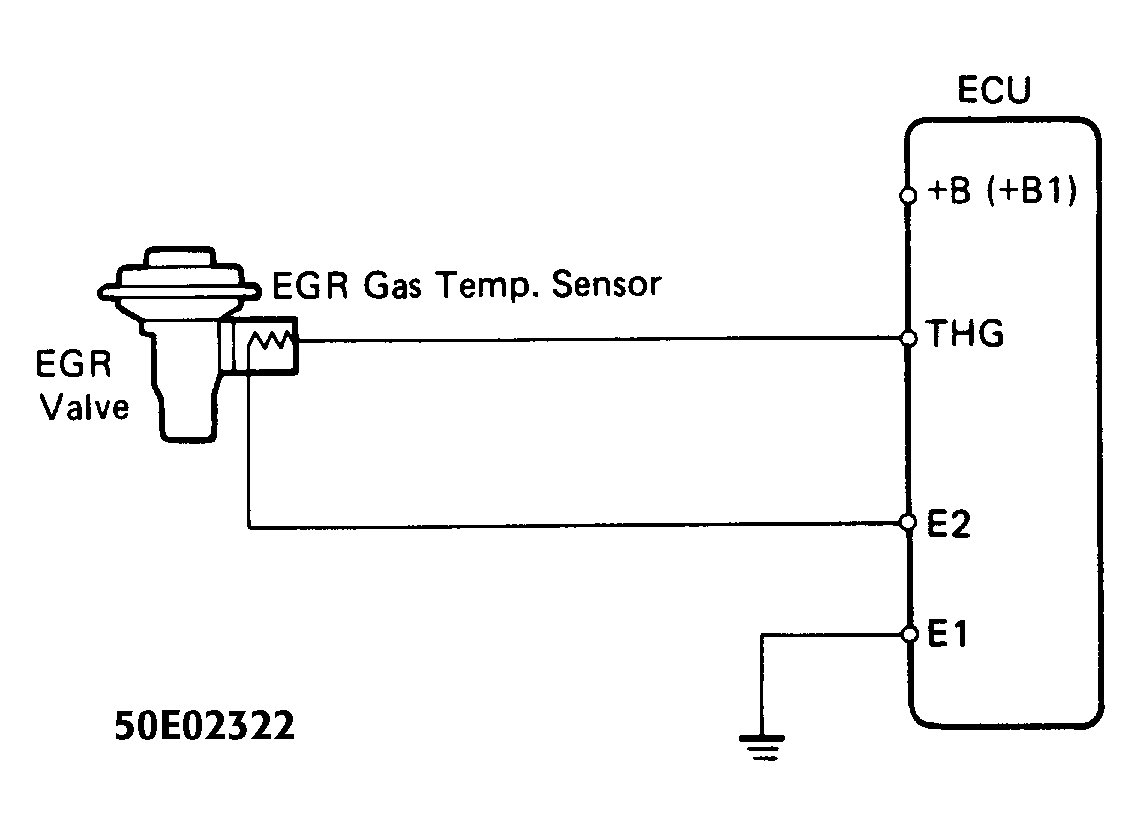

Fig 1: No. 10 Test, Code 71 Schematic, EGR System Signal
G50E02322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

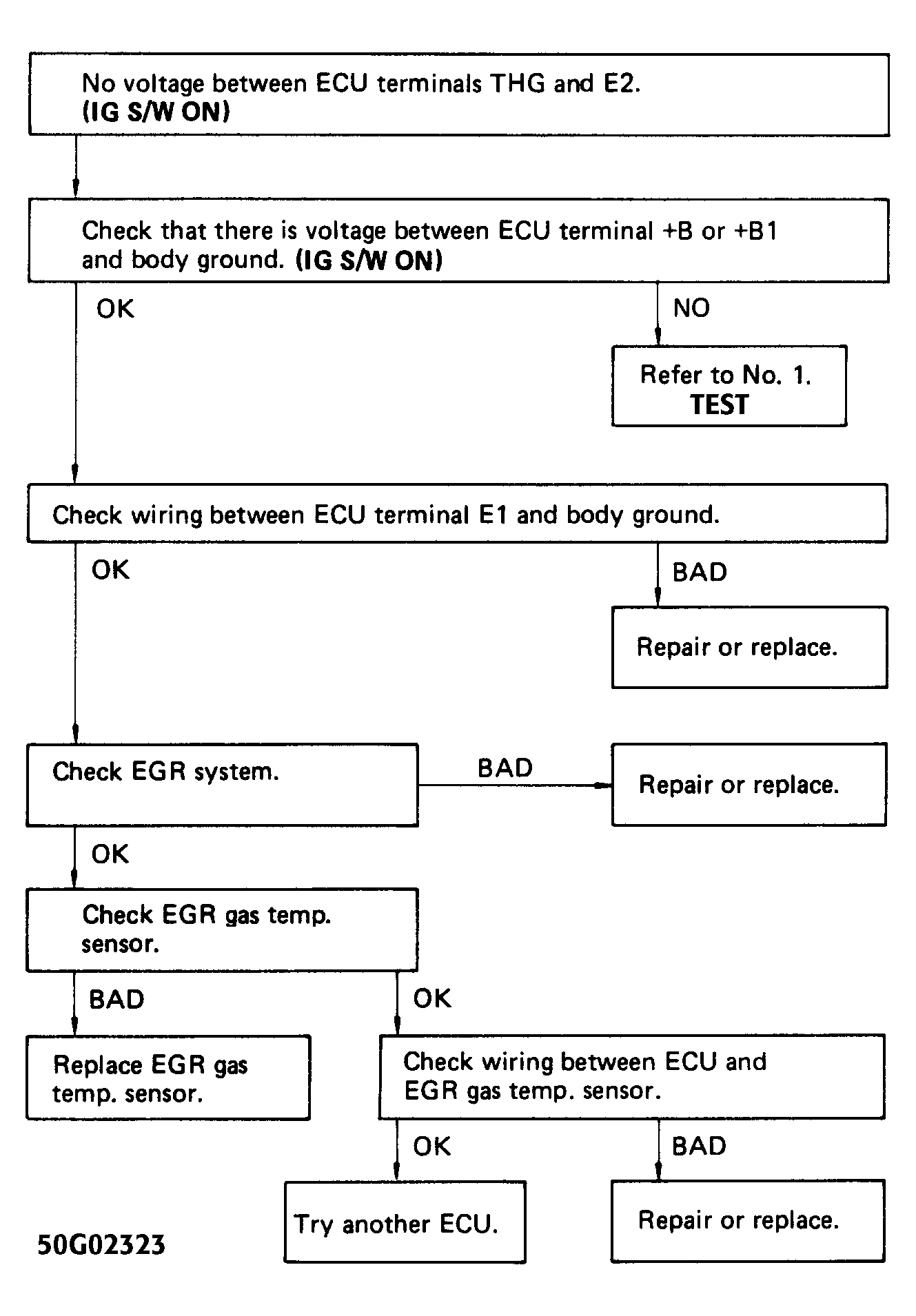

Fig 2: No. 10 Test, Code 71 Flow Chart, EGR System Signal
G50G02323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
