No. 13 Test, "Check Engine" Light Circuit

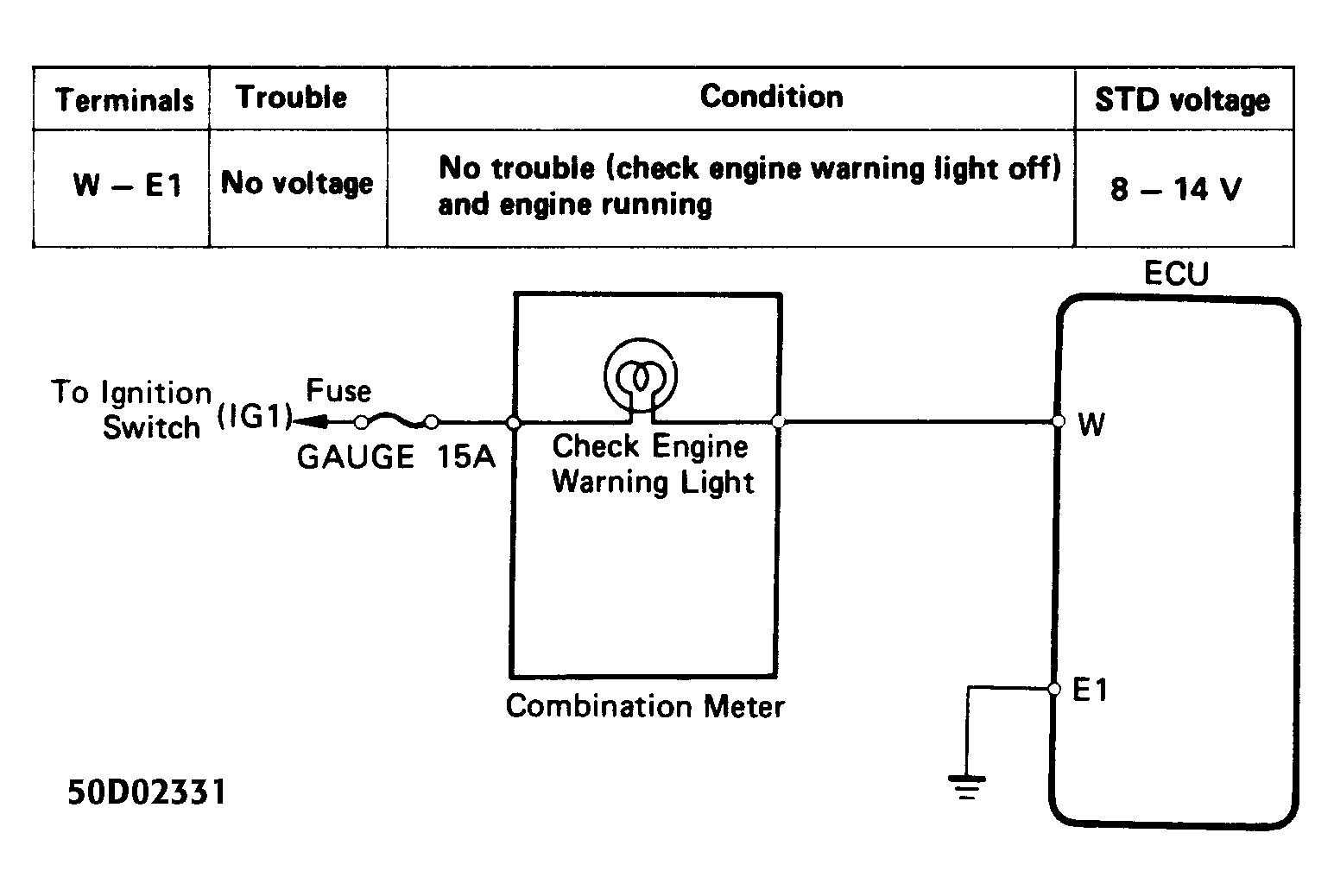

Fig 1: No. 13 Test Schematic, "CHECK ENGINE" Light Circuit

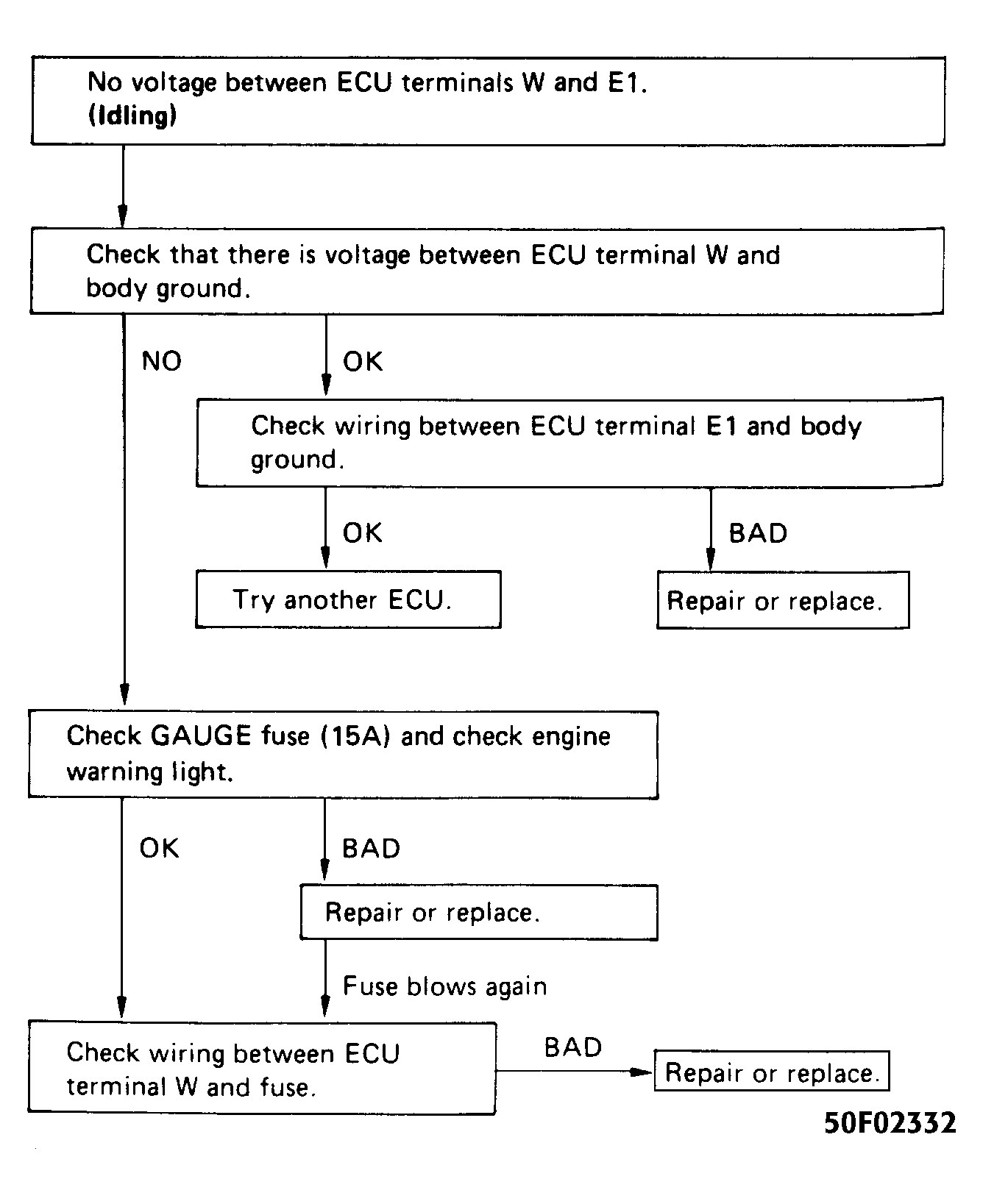

Fig 2: No. 13 Test Flow Chart, "CHECK ENGINE" Light Circuit
