No. 1 Test, Code 11 Ecu (+B) Circuit

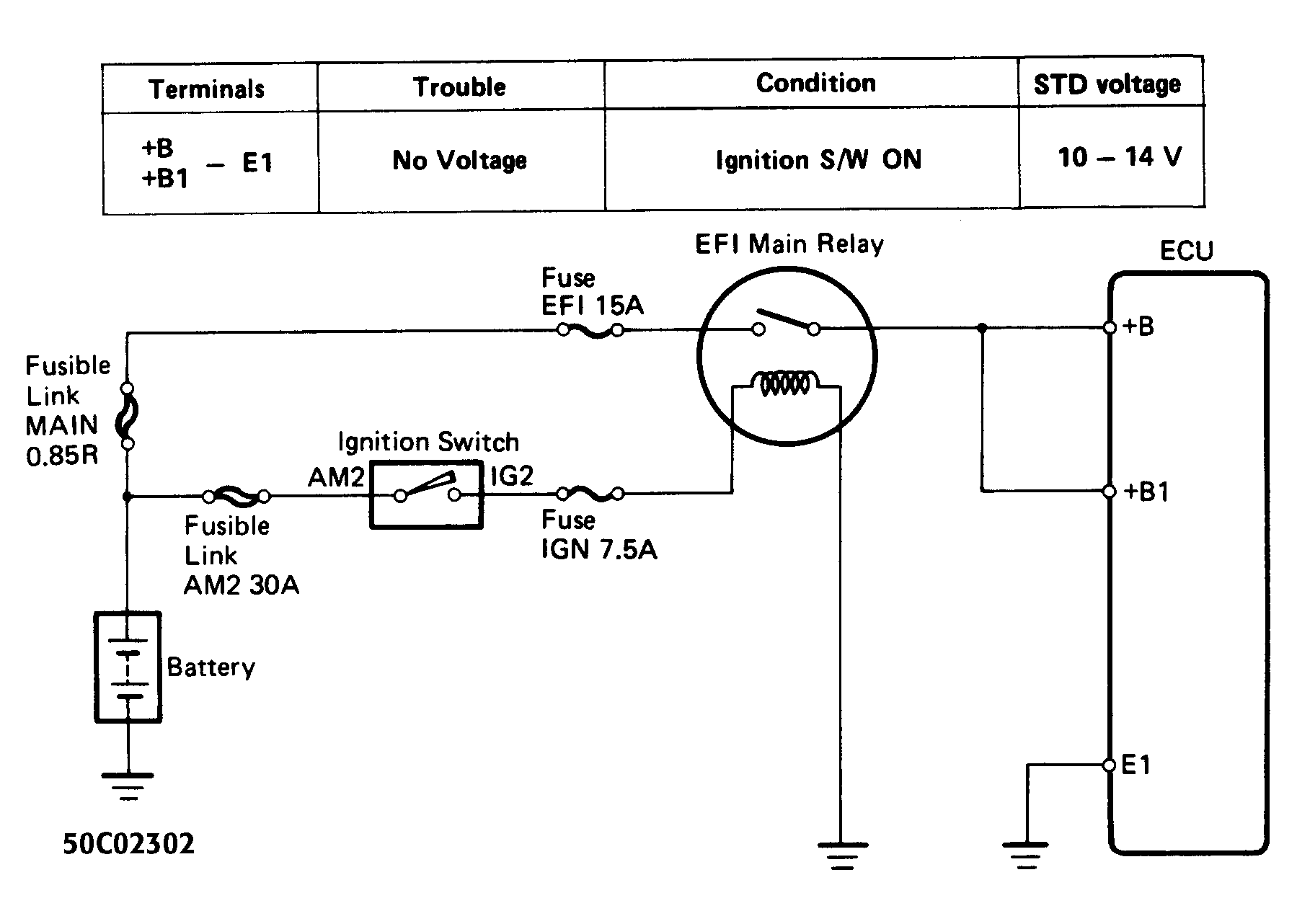

Fig 1: No. 1 Test Schematic, Code 11 ECU (+B) Circuit
G50C02302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

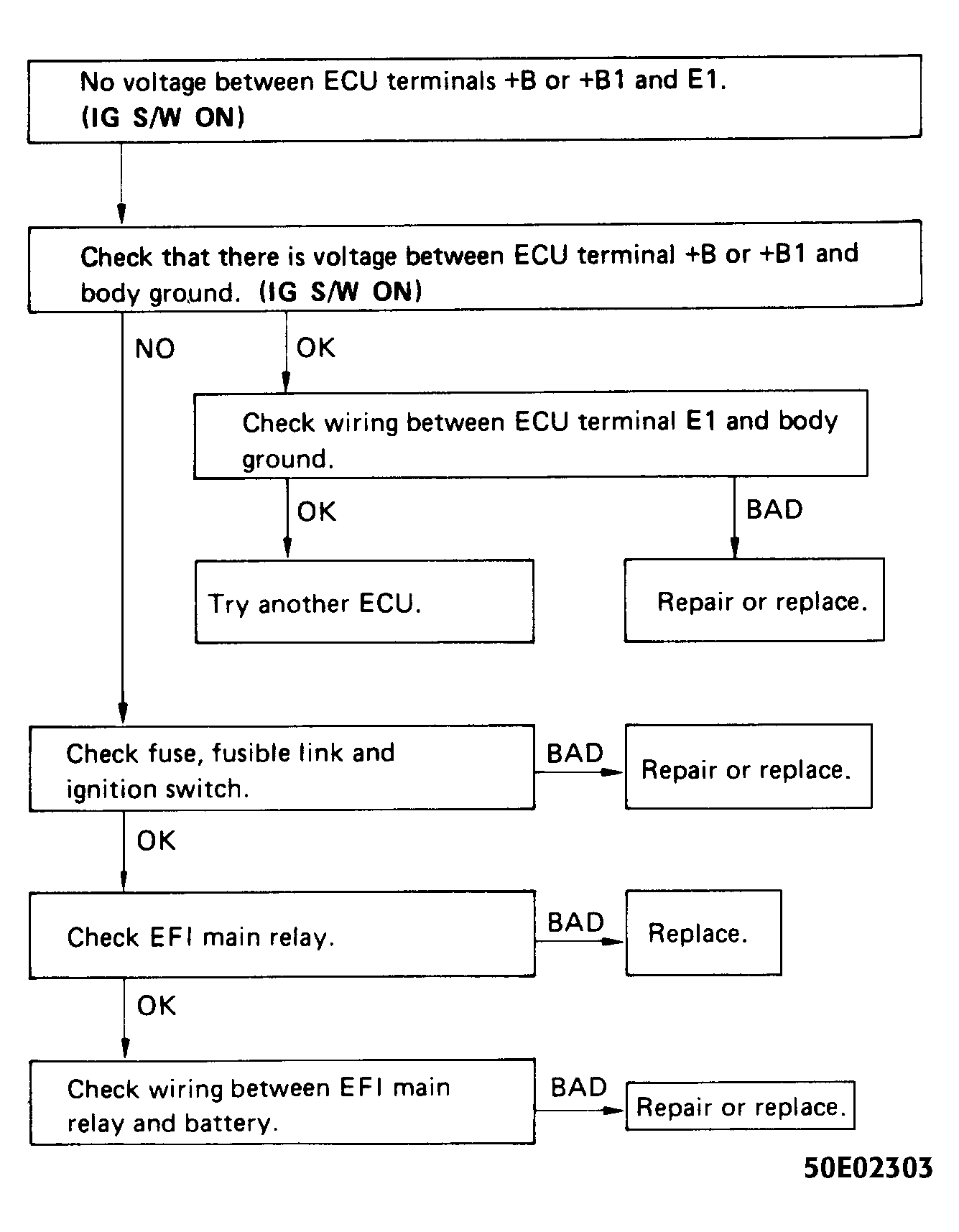

Fig 2: No. 1 Test Flow Chart, Code 11 ECU (+B) Circuit
G50E02303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
