No. 13 Test, "Check Engine" Circuit Check

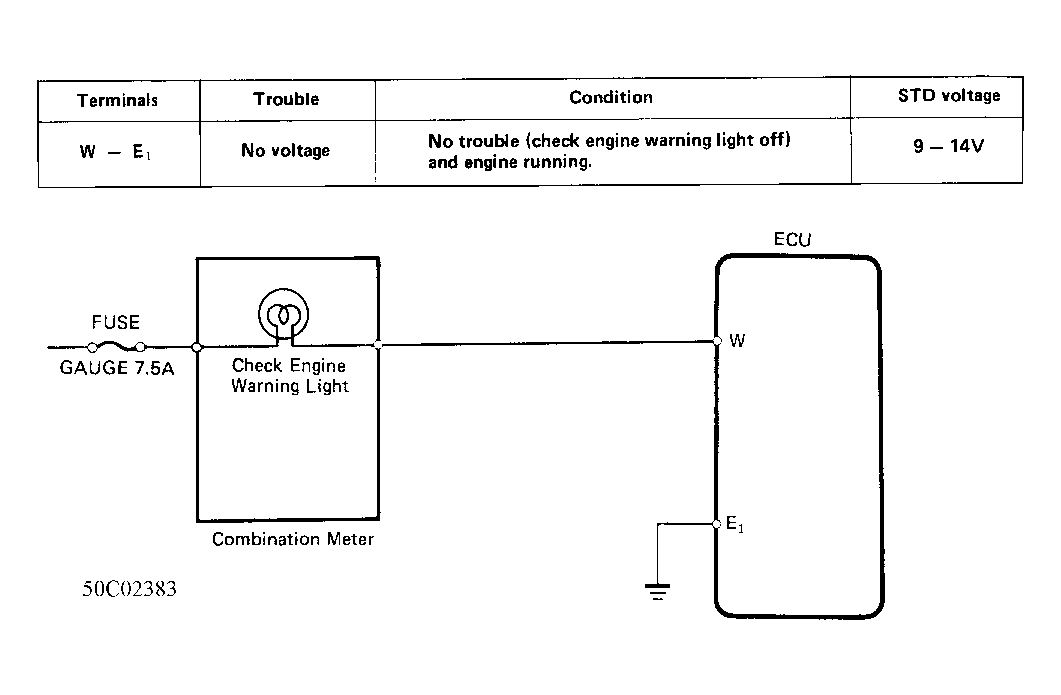

Fig 1: No. 13 Test, "CHECK ENGINE" Circuit Check, Schematic

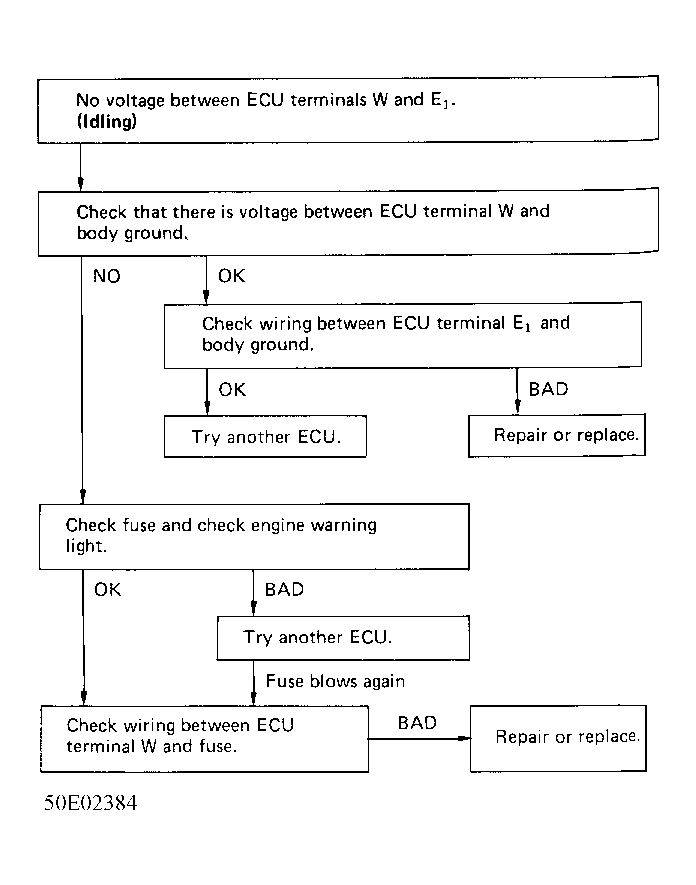

Fig 2: No. 13 Test, "CHECK ENGINE" Circuit Check, Flow Chart
