No. 7 Test, Code 31, Airflow Meter Signal

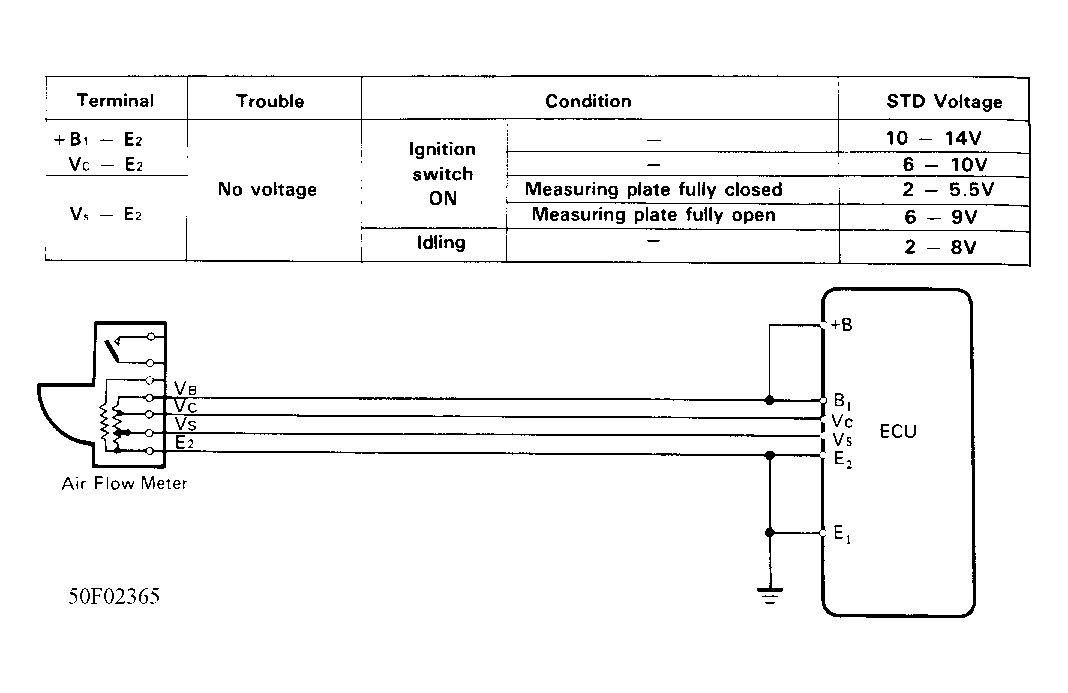

Fig 1: No. 7 Test, Code 31 Schematic, Airflow Meter Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

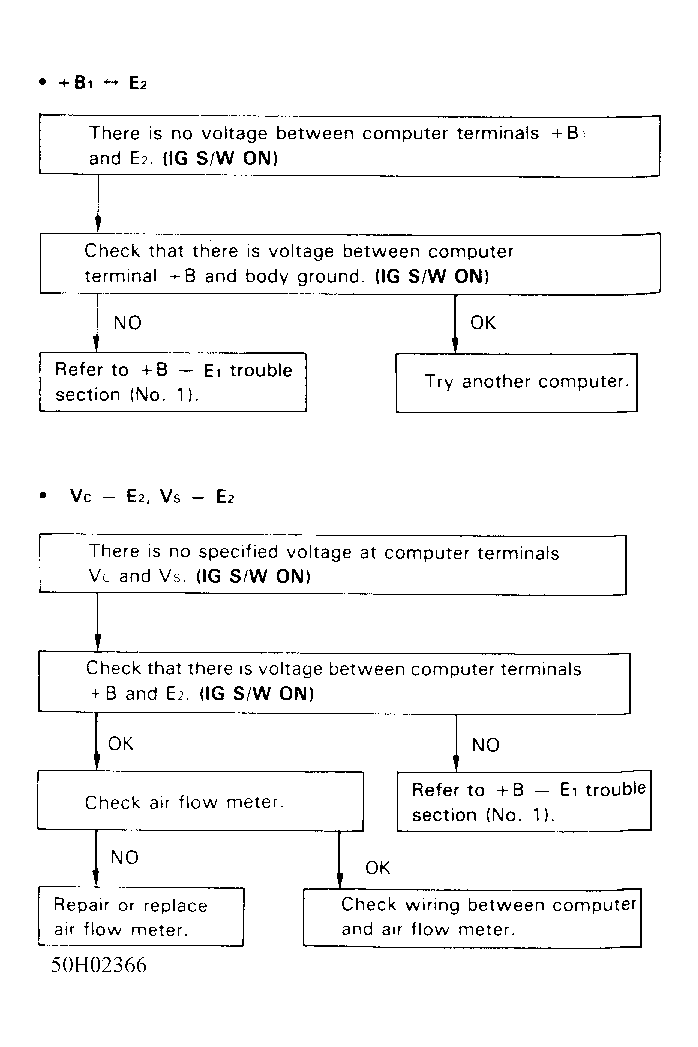

Fig 2: No. 7 Test, Code 31 Flow Chart, Airflow Meter Signal

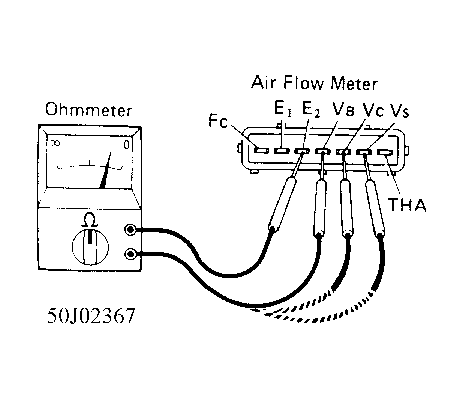

Fig 3: No. 7 Test, Code 31, Airflow Meter Test
