Diagnostic Circuit Check

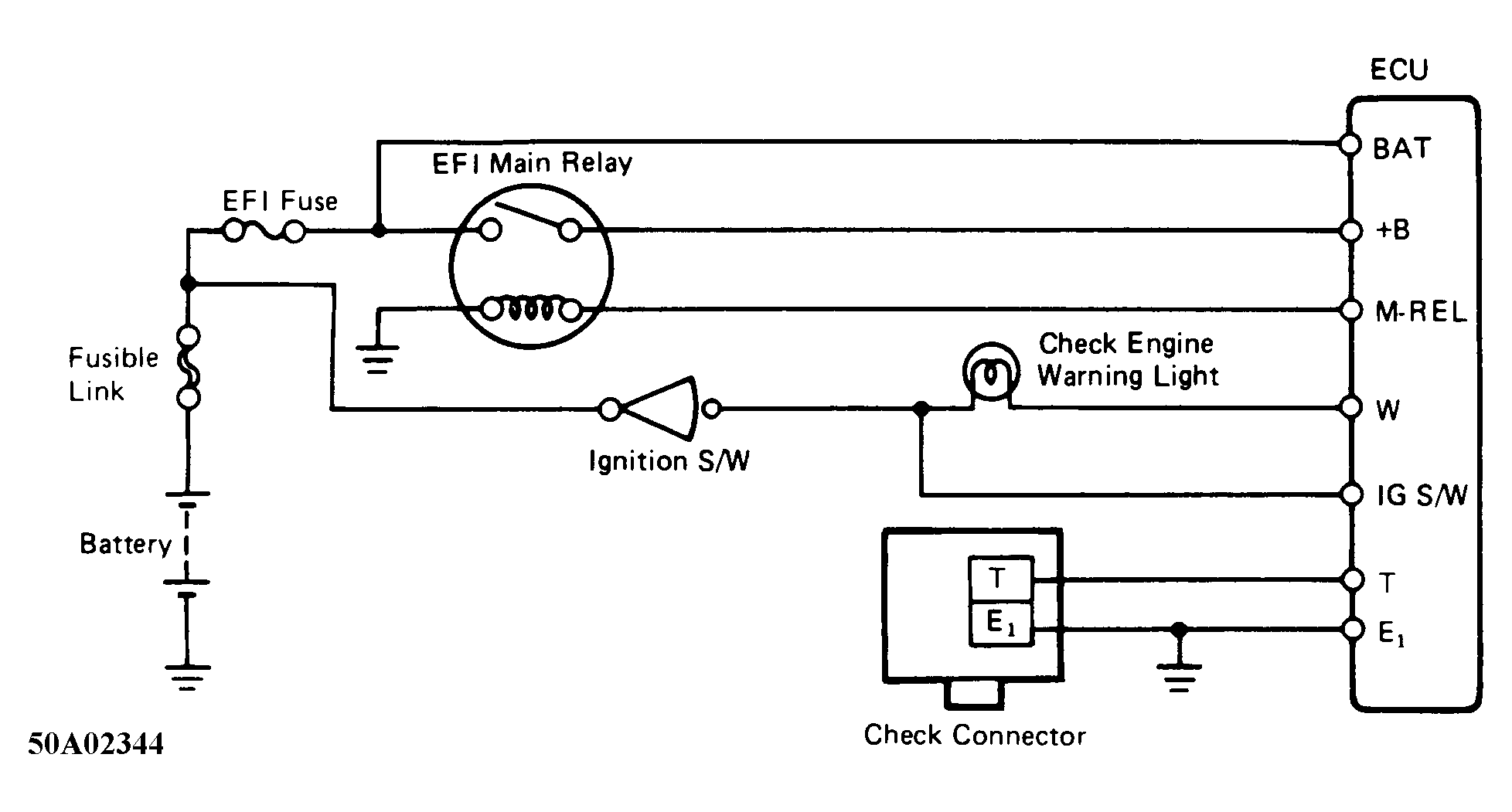

Fig 1: Diagnostic Circuit Check, Schematic

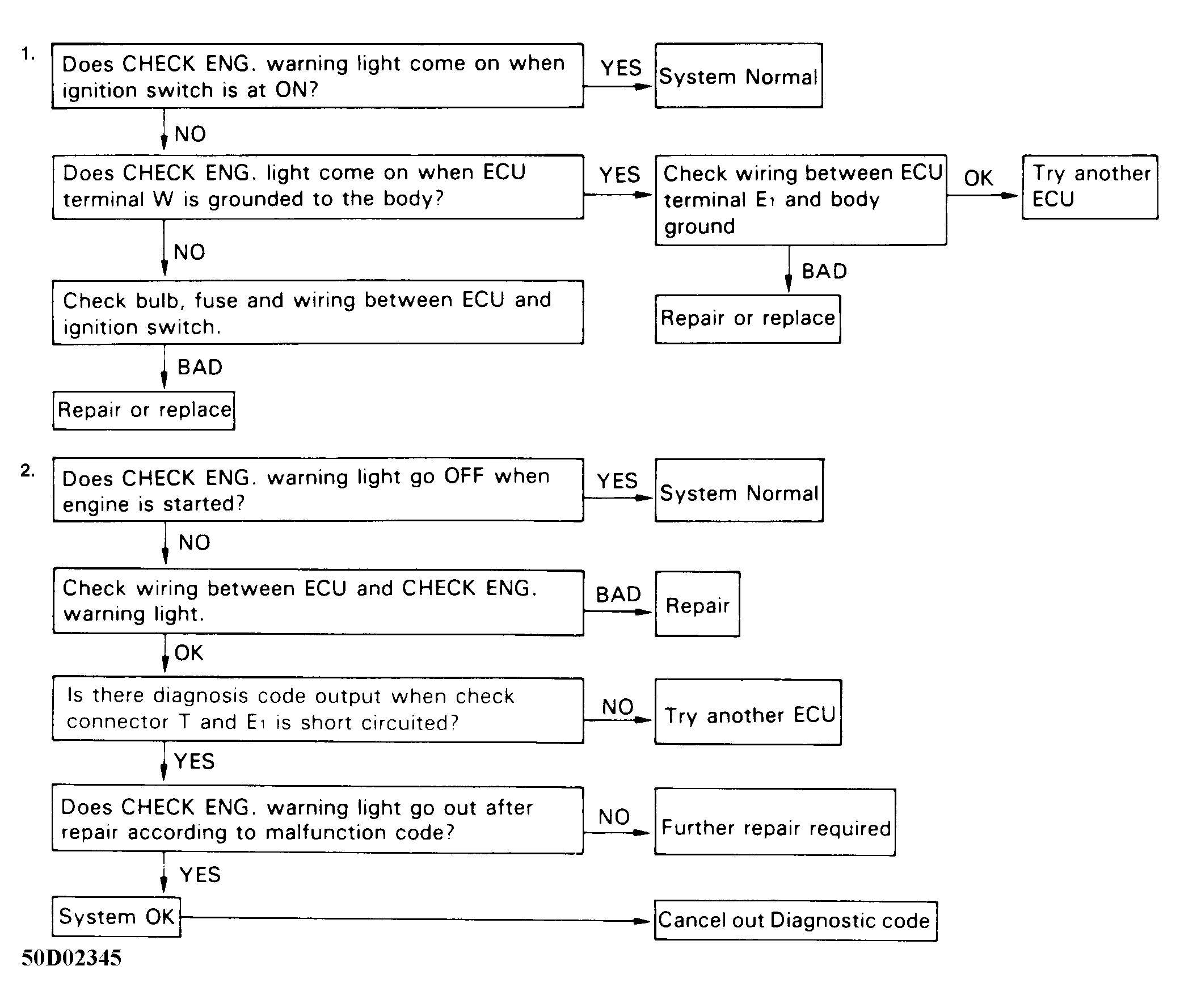

Fig 2: Diagnostic Circuit Check, Flow Chart
