No. 1 Test, Code 11 Ecu (+B) Circuit

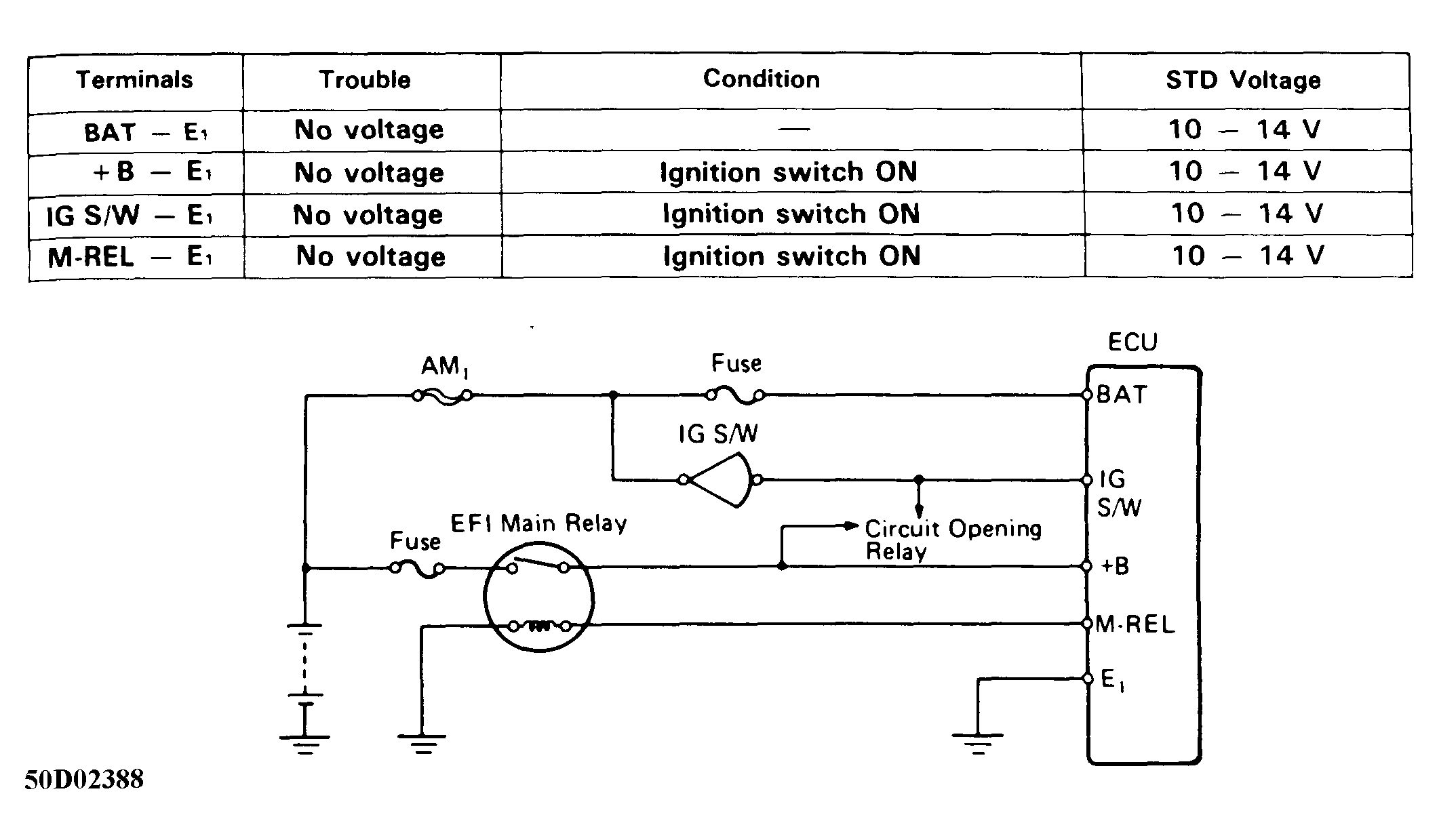

Fig 1: No. 1 Test, Code 11 ECU (+B) Circuit, Schematic
G50D02388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

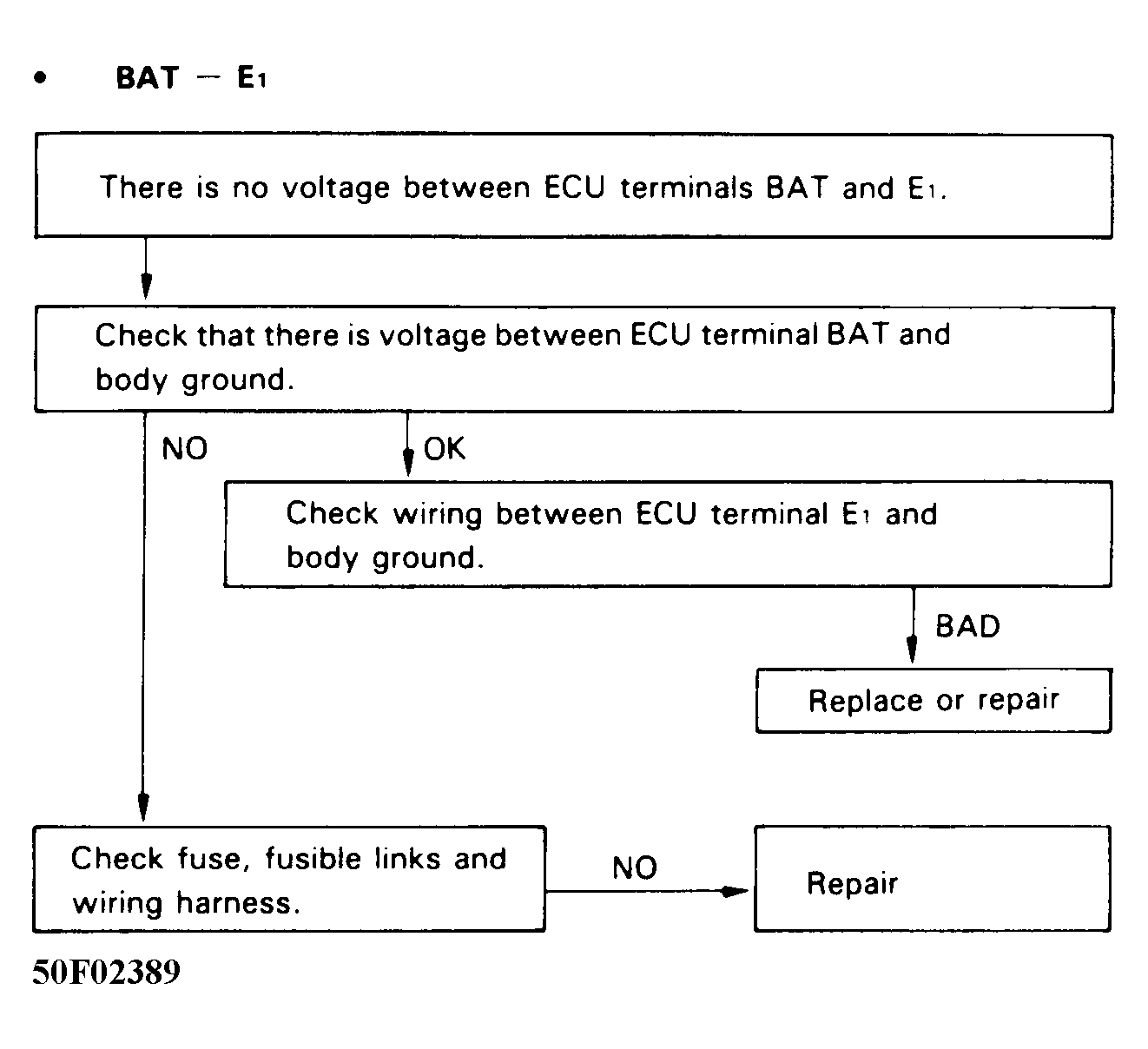

Fig 2: No. 1 Test, Code 11 ECU (+B) Circuit (Flow Chart 1 of 4)
G50F02389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

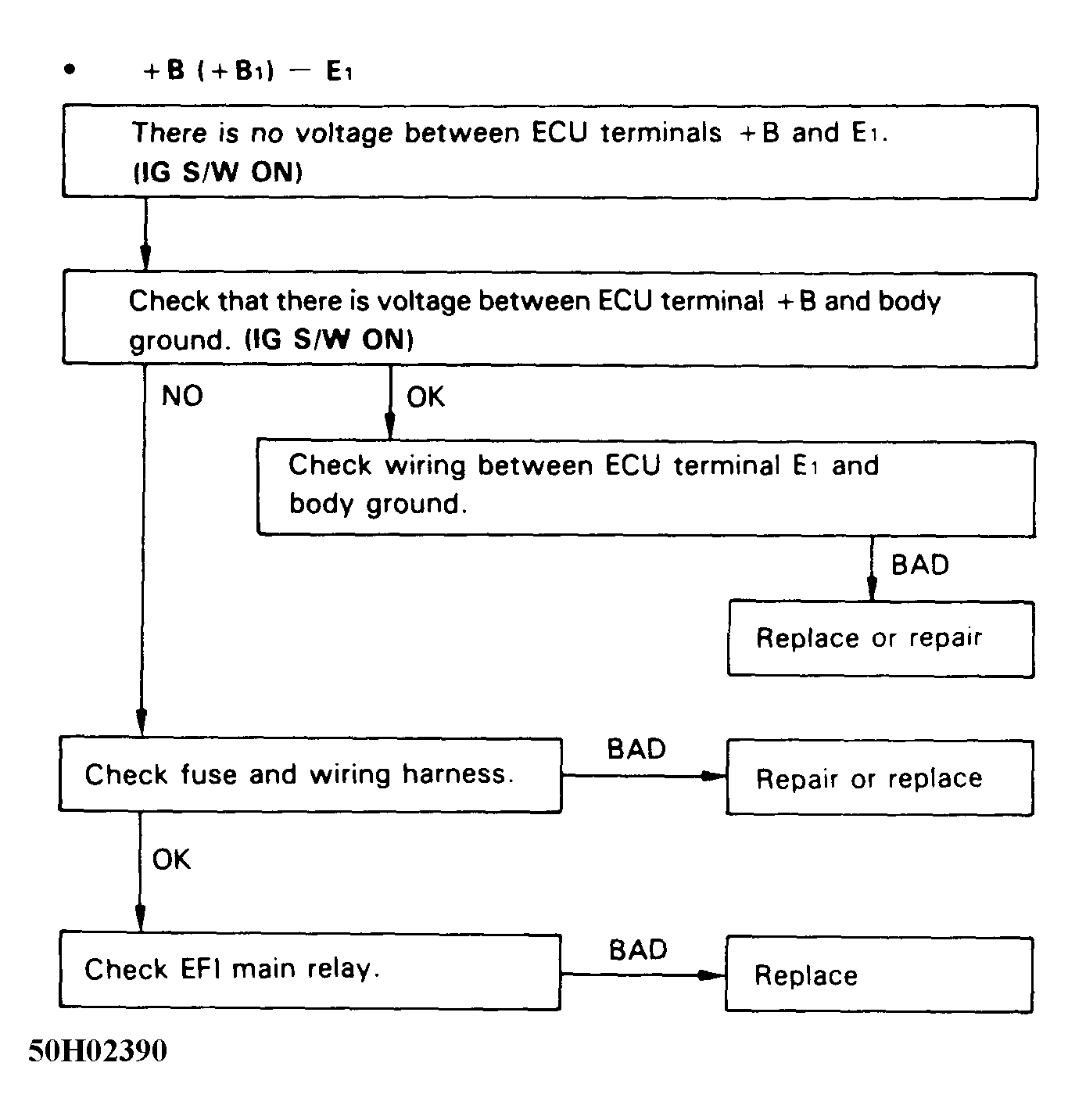

Fig 3: No. 1 Test, Code 11 ECU (+B) Circuit (Flow Chart 2 of 4)
G50H02390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

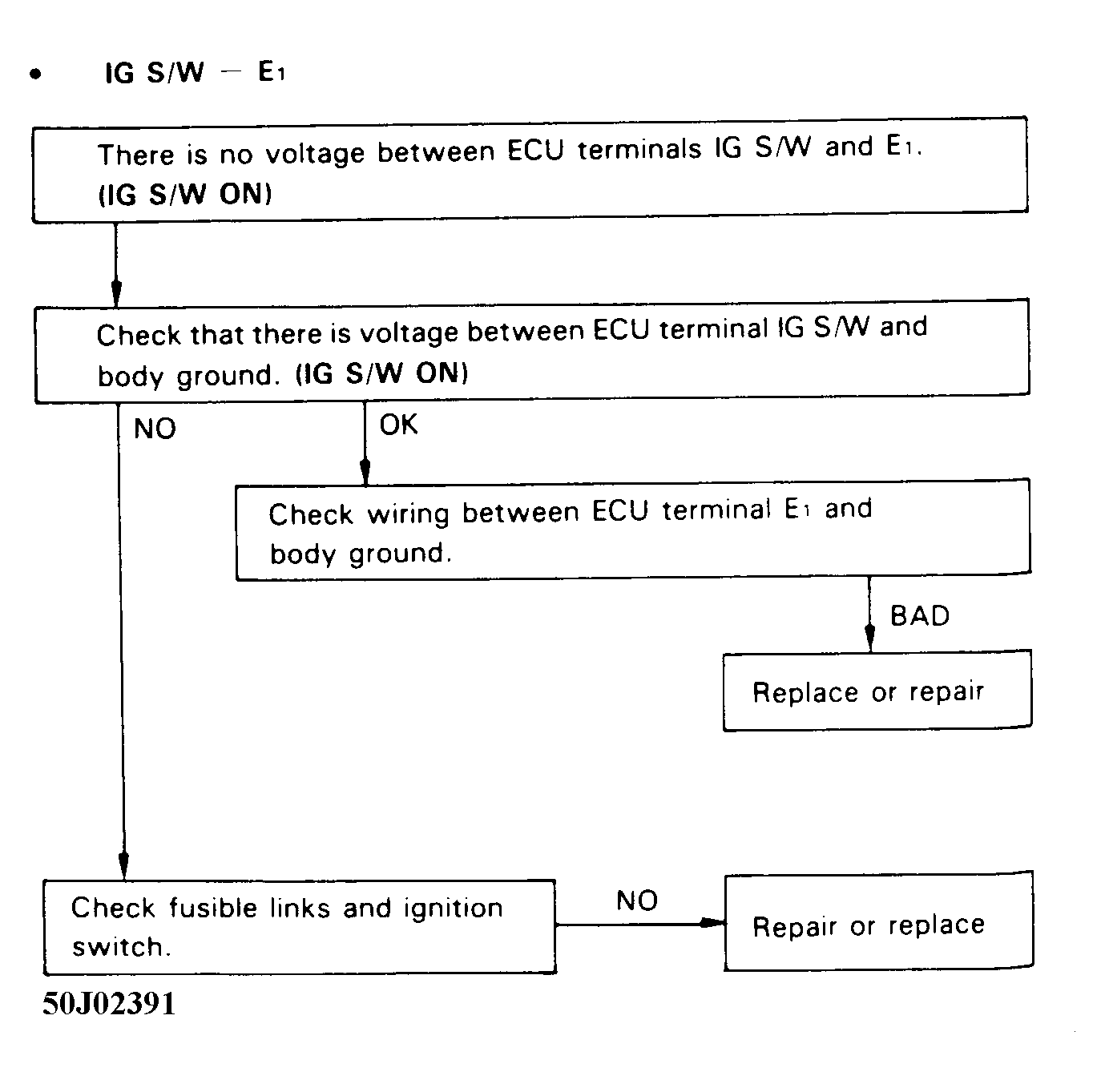

Fig 4: No. 1 Test, Code 11 ECU (+B) Circuit (Flow Chart 3 of 4)
G50J02391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

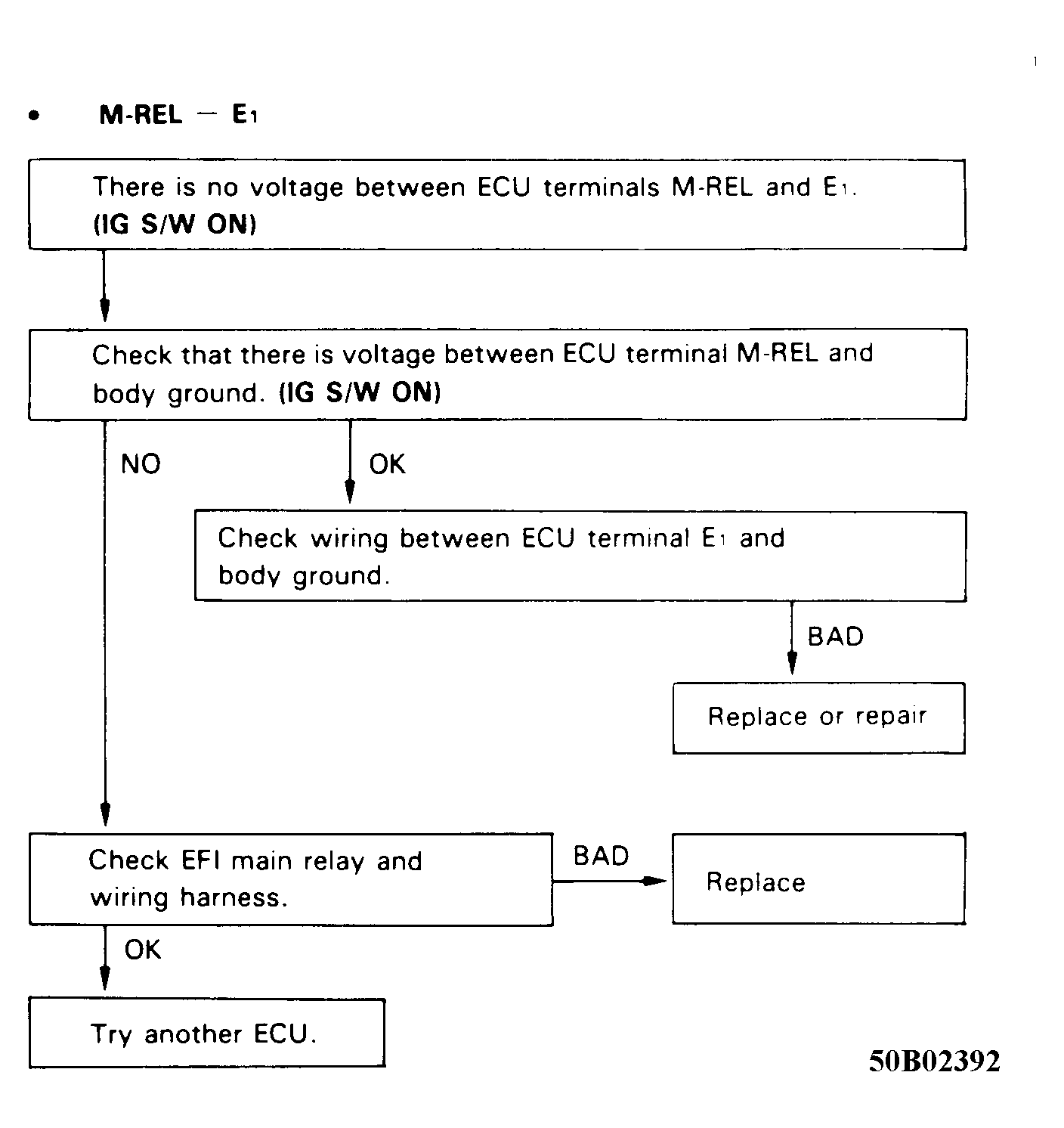

Fig 5: No. 1 Test, Code 11 ECU (+B) Circuit (Flow Chart 4 of 4)
G50B02392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
