No. 2 Test, Code 12, 13, 14, Ignition & Rpm Signal

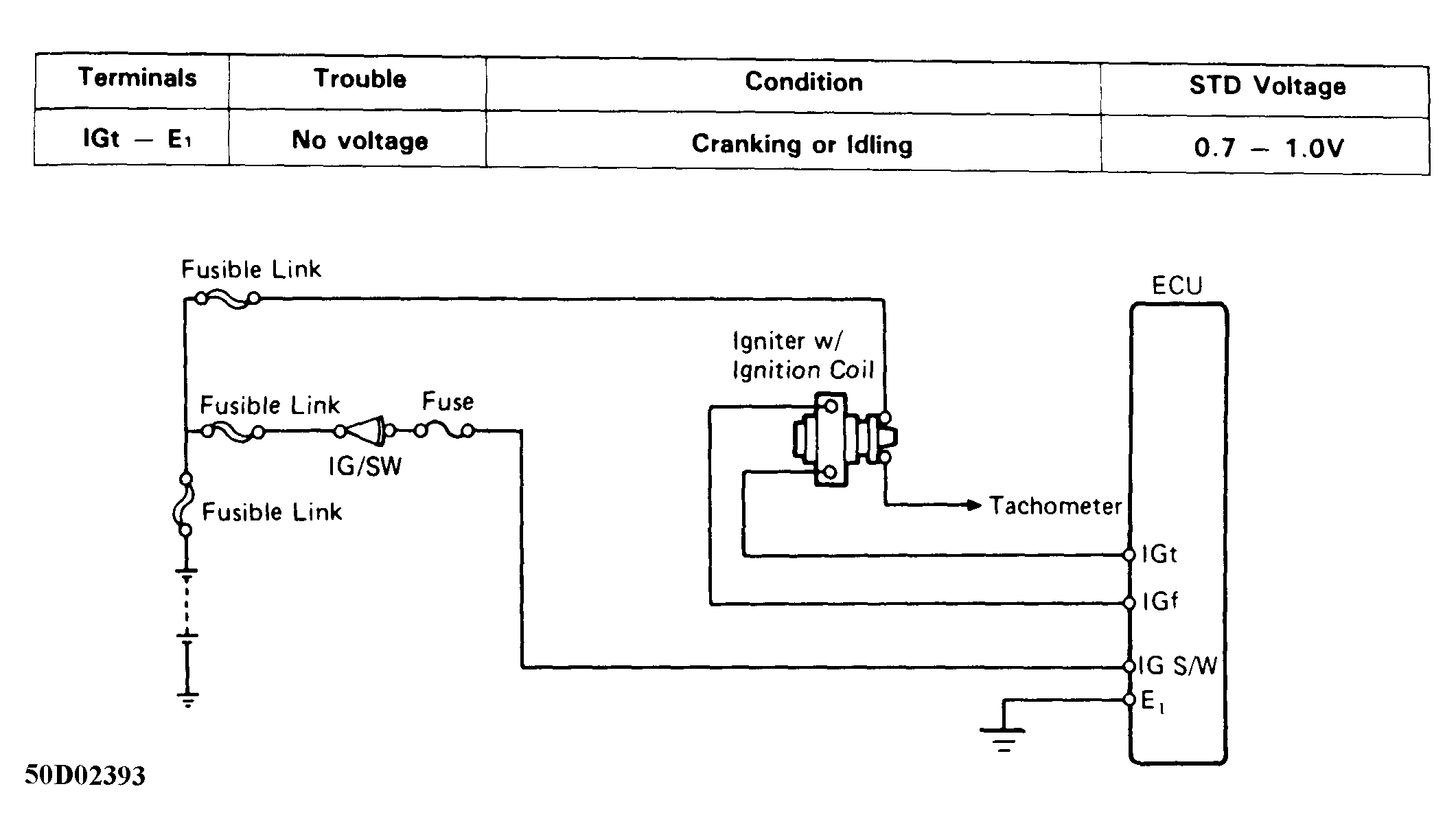

Fig 1: No. 2 Test, Code 12, 13, 14 Schematic, Ignition & RPM Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: To check ignitor, see IGNITION SYSTEM article.

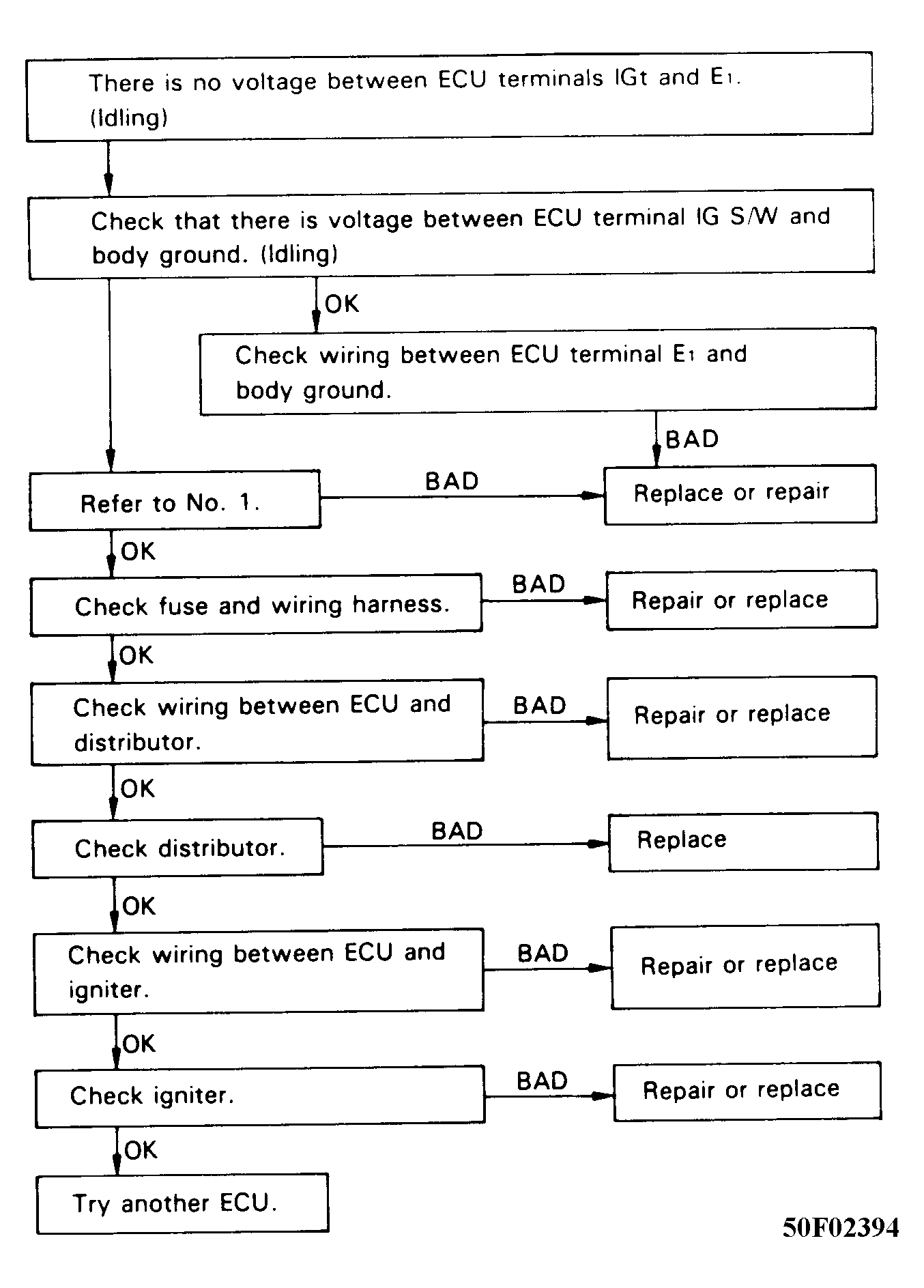

Fig 2: No. 2 Test, Code 12, 13, 14 Flow Chart, Ign. & RPM Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
