No. 8 Test, Injector Circuit Test

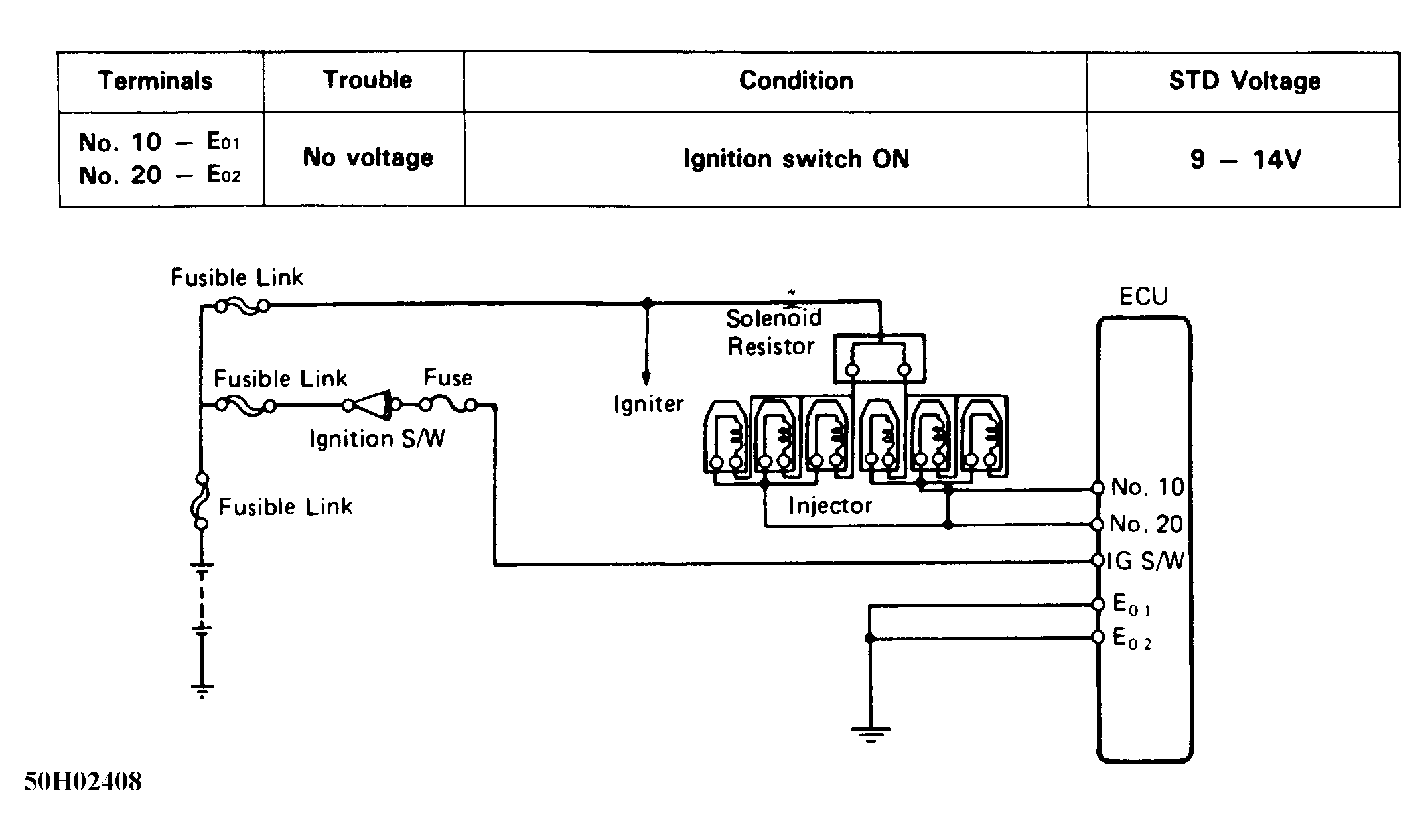

Fig 1: No. 8 Test, Injector Circuit Test, Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

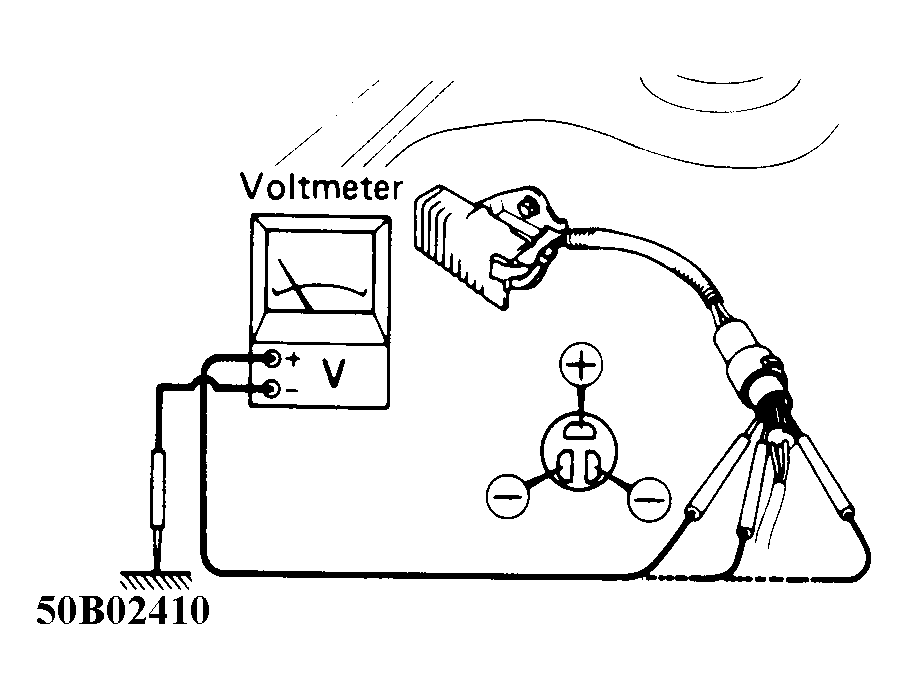

Fig 2: No. 8 Test, Resistor Term. (+) & Body Ground Voltage Check

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

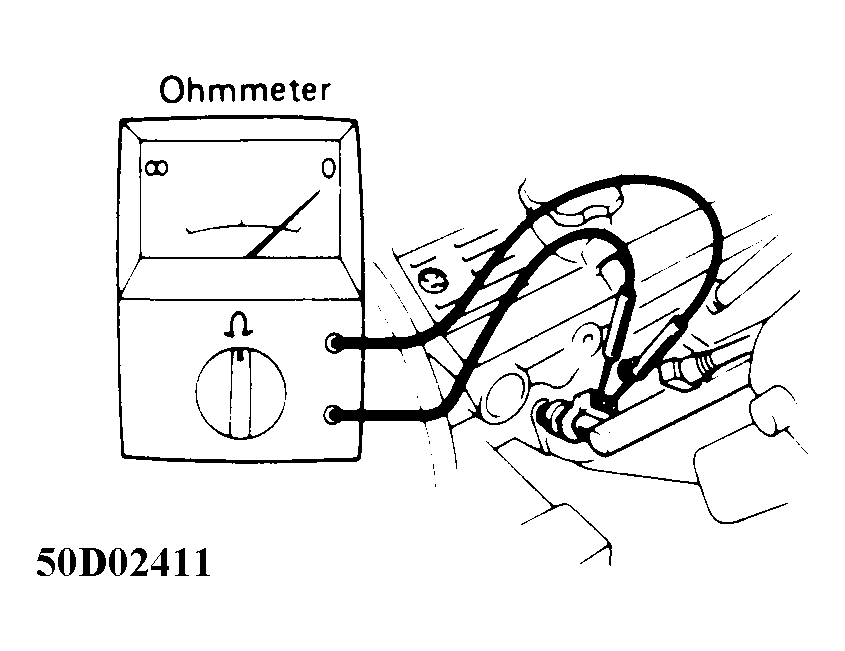

Fig 3: No. 8 Test, Magnetic Coil Resistance Check

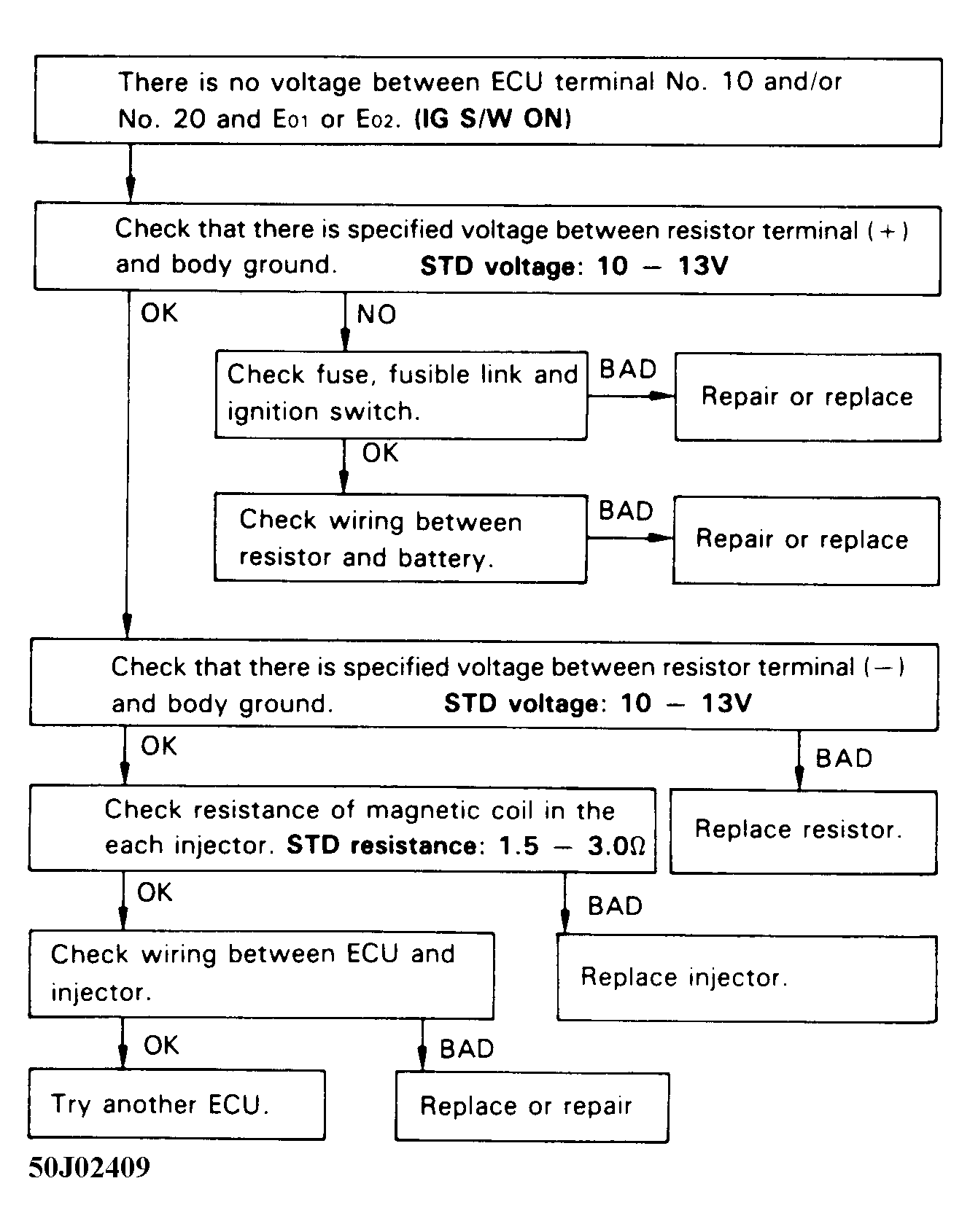

Fig 4: No. 8 Test, Injector Circuit Test, Flow Chart
