Injector Solenoid Resistor

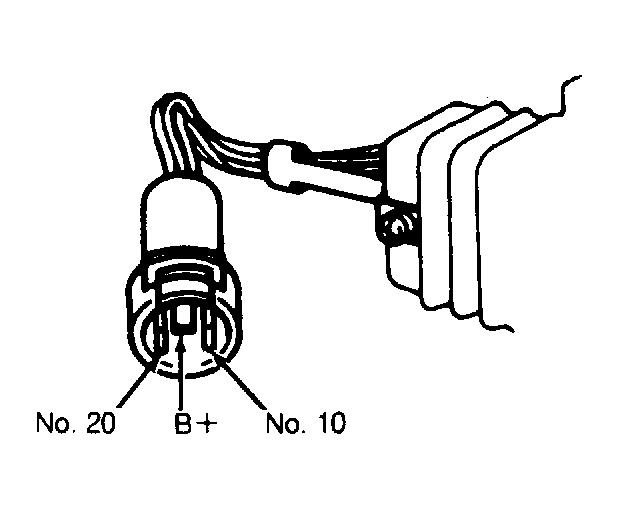

- Turn ignition off. Unplug injector solenoid resistor. Check resistance between terminal + B and other terminals. See Fig 1. Resistance should be 2 Ohms.
- If resistance is not as specified, replace solenoid resistor. Solenoid resistor is located on left fenderwell.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
