No. 10 Test, Code 71, EGR System Signal

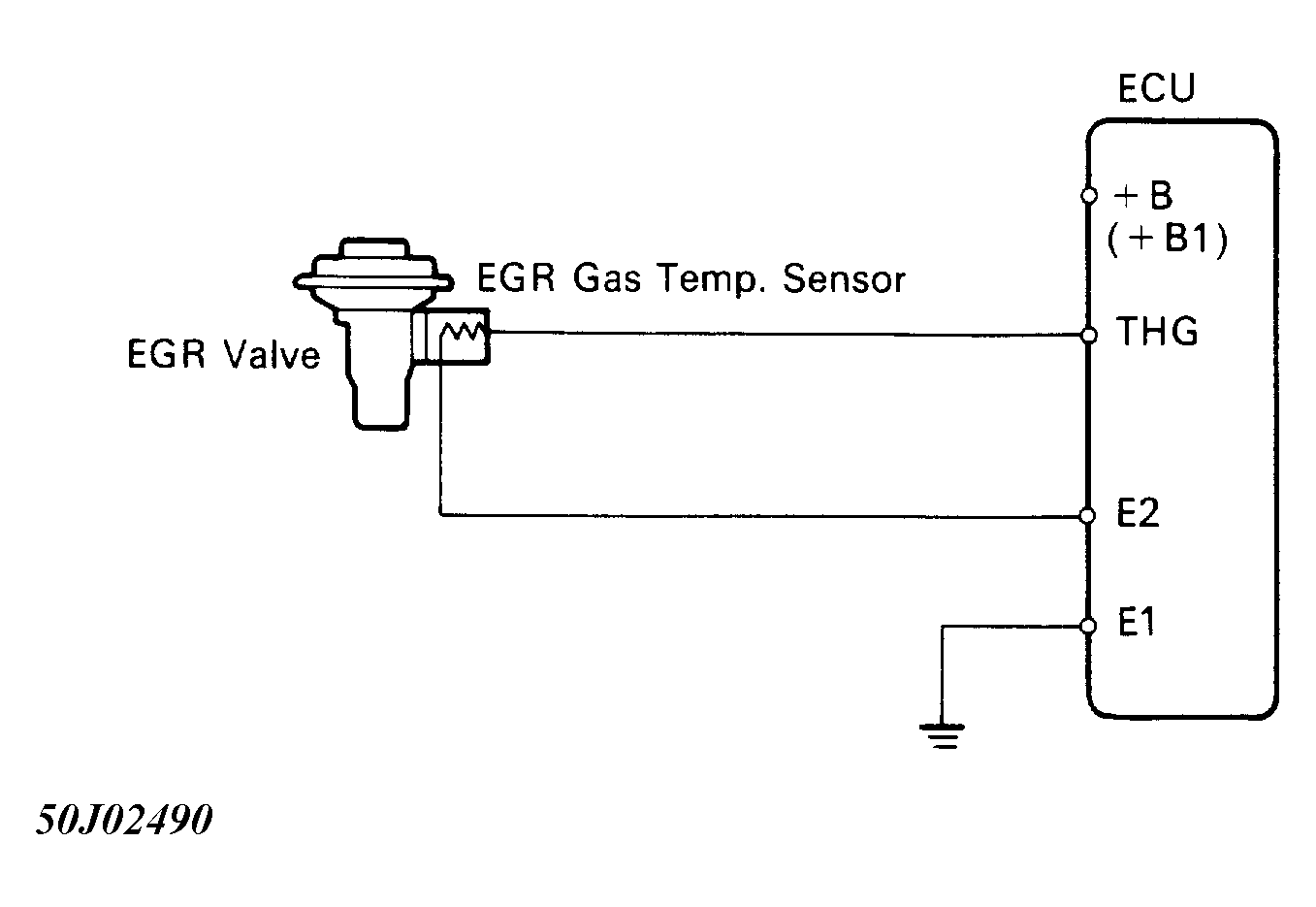

Fig 1: No. 10 Test, Code 71 Schematic, EGR System Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

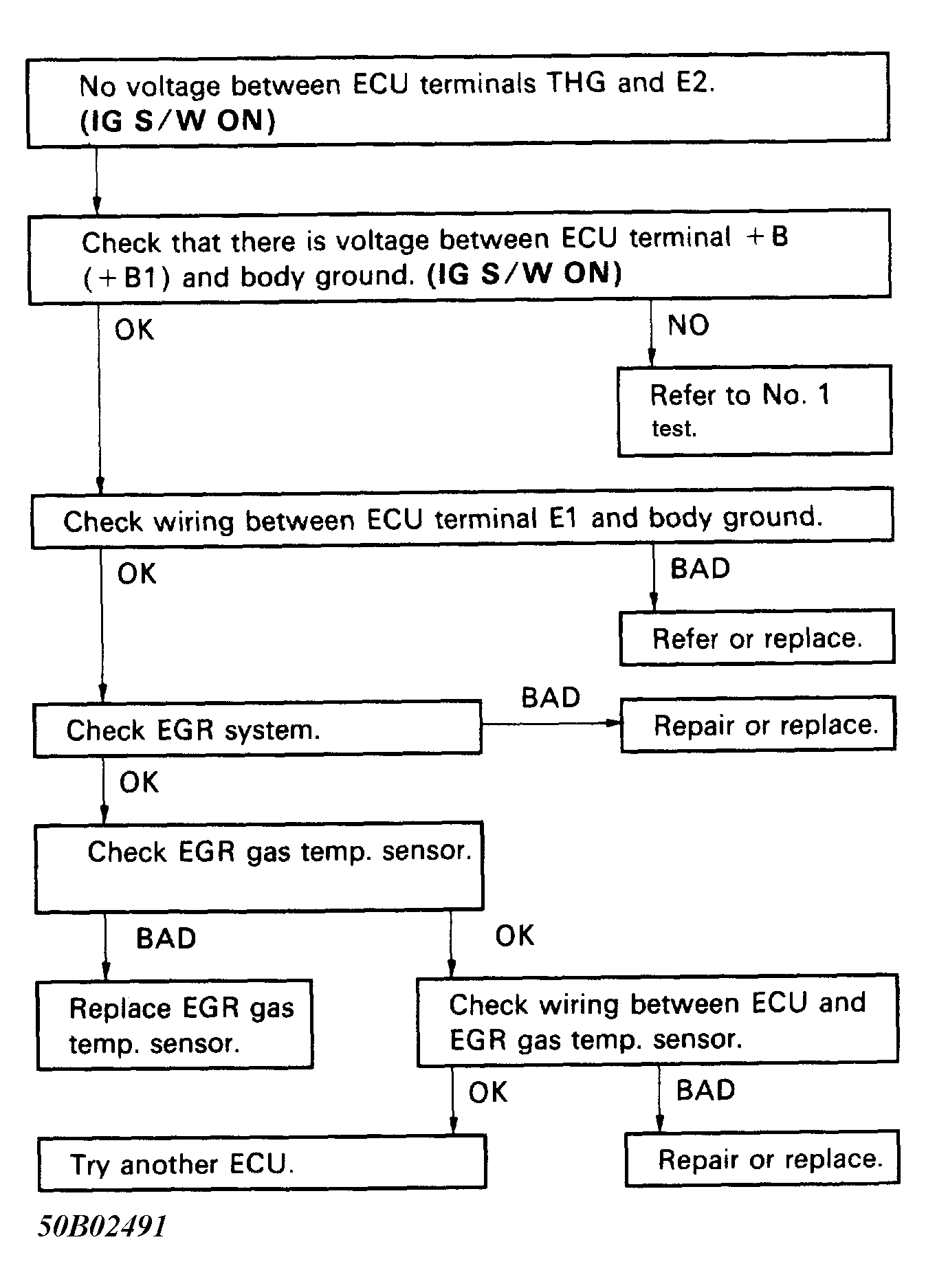

Fig 2: No. 10 Test, Code 71 Flow Chart, EGR System Signal

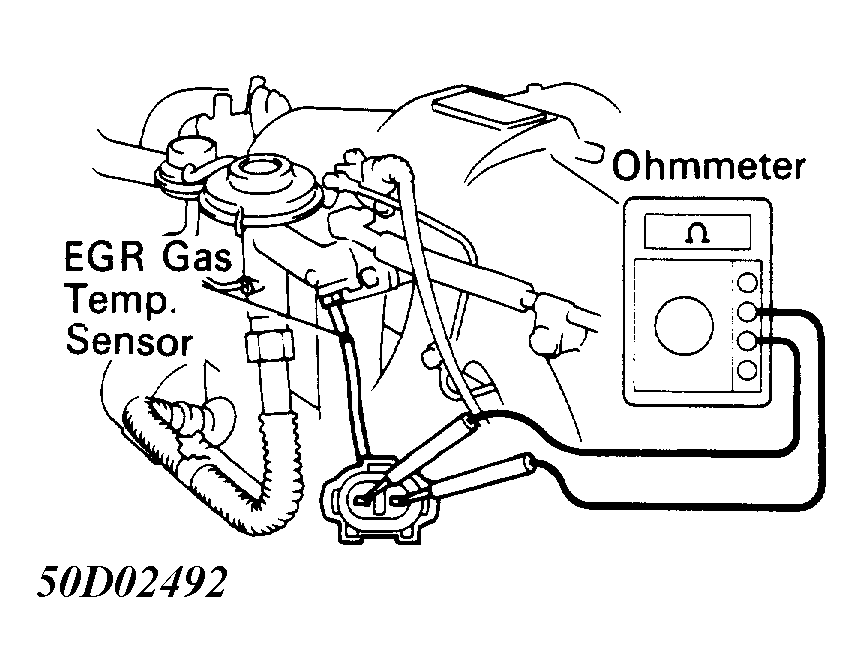

Fig 3: No. 10 Test, Code 71, EGR Gas Temp. Sens. Check
