No. 11 Test, "Check Engine" Light Test

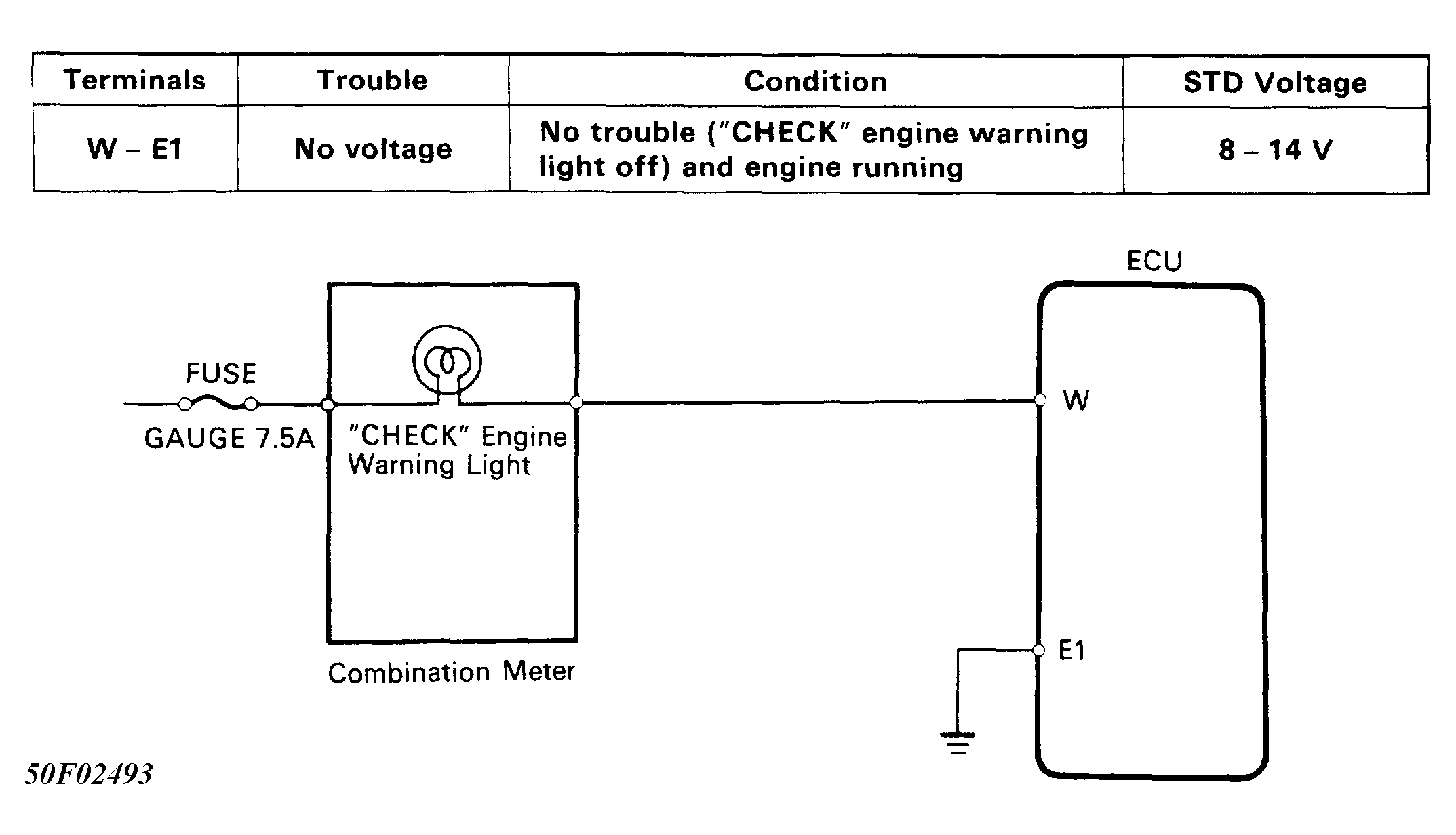

Fig 1: No. 11 Test, "CHECK ENGINE" Light Test, Schematic

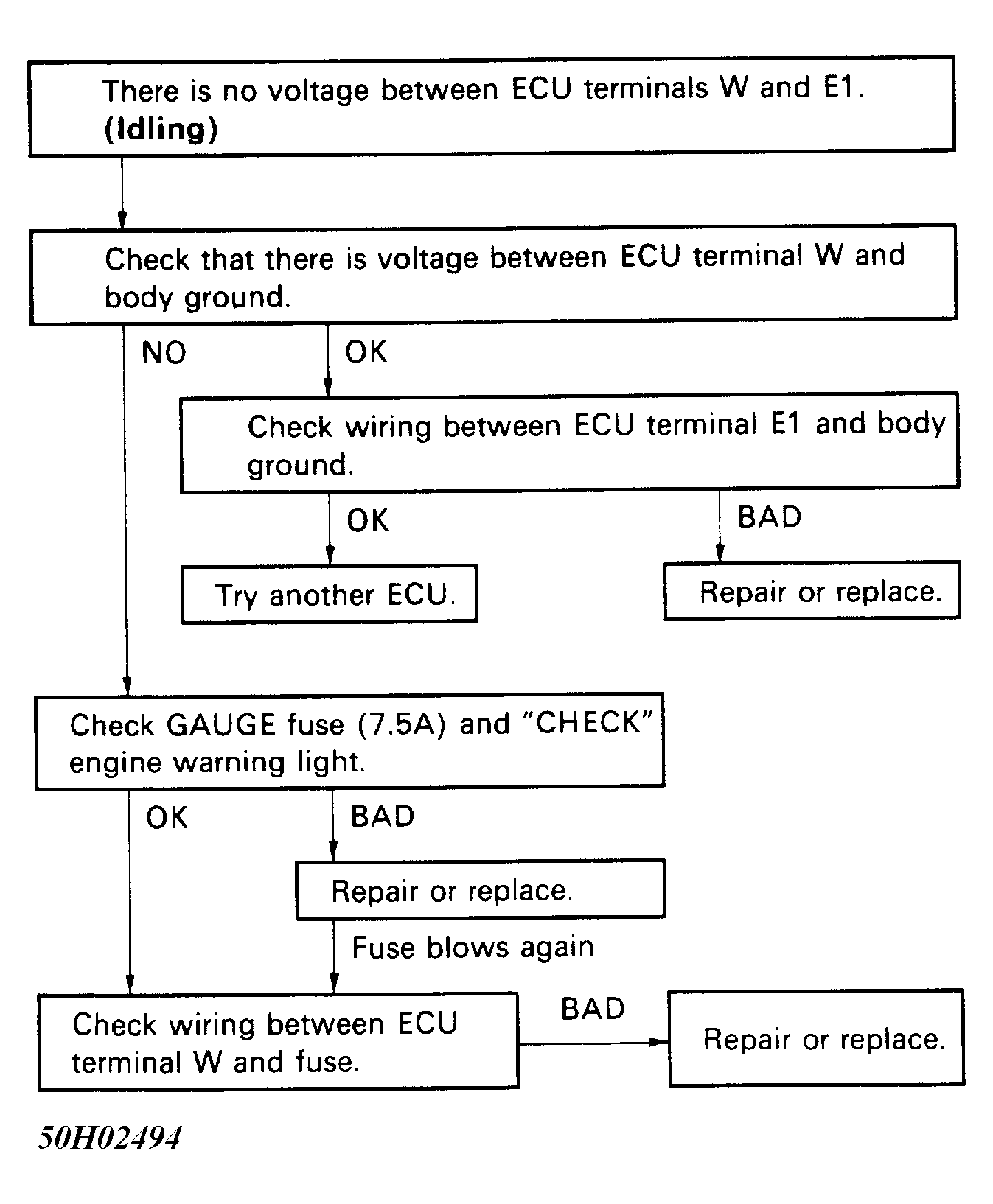

Fig 2: No. 11 Test, "CHECK ENGINE" Light Test, Flow Chart
