No. 15 Test, Injector Circuit Test

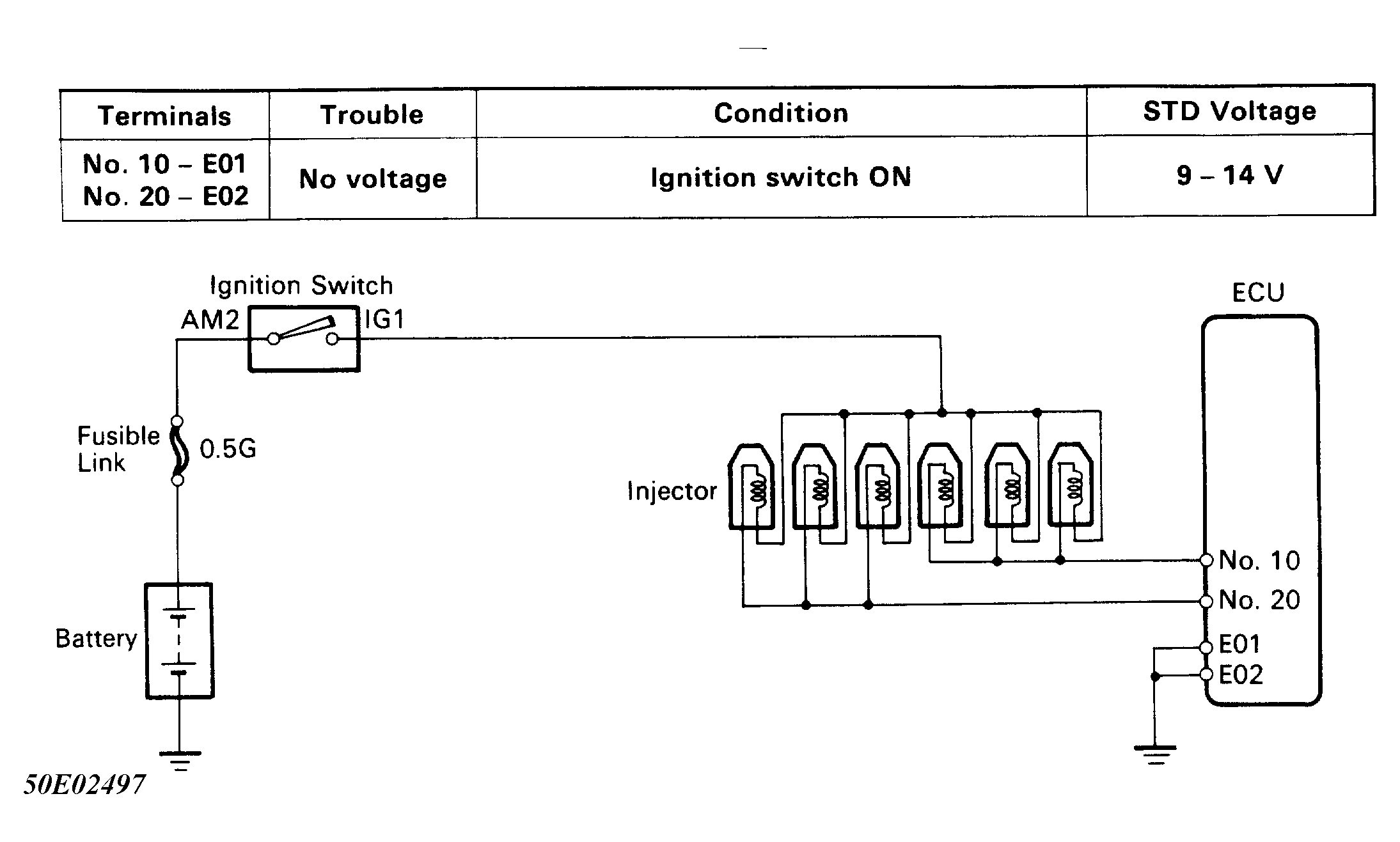

Fig 1: No. 15 Test, Injector Circuit Test, Schematic

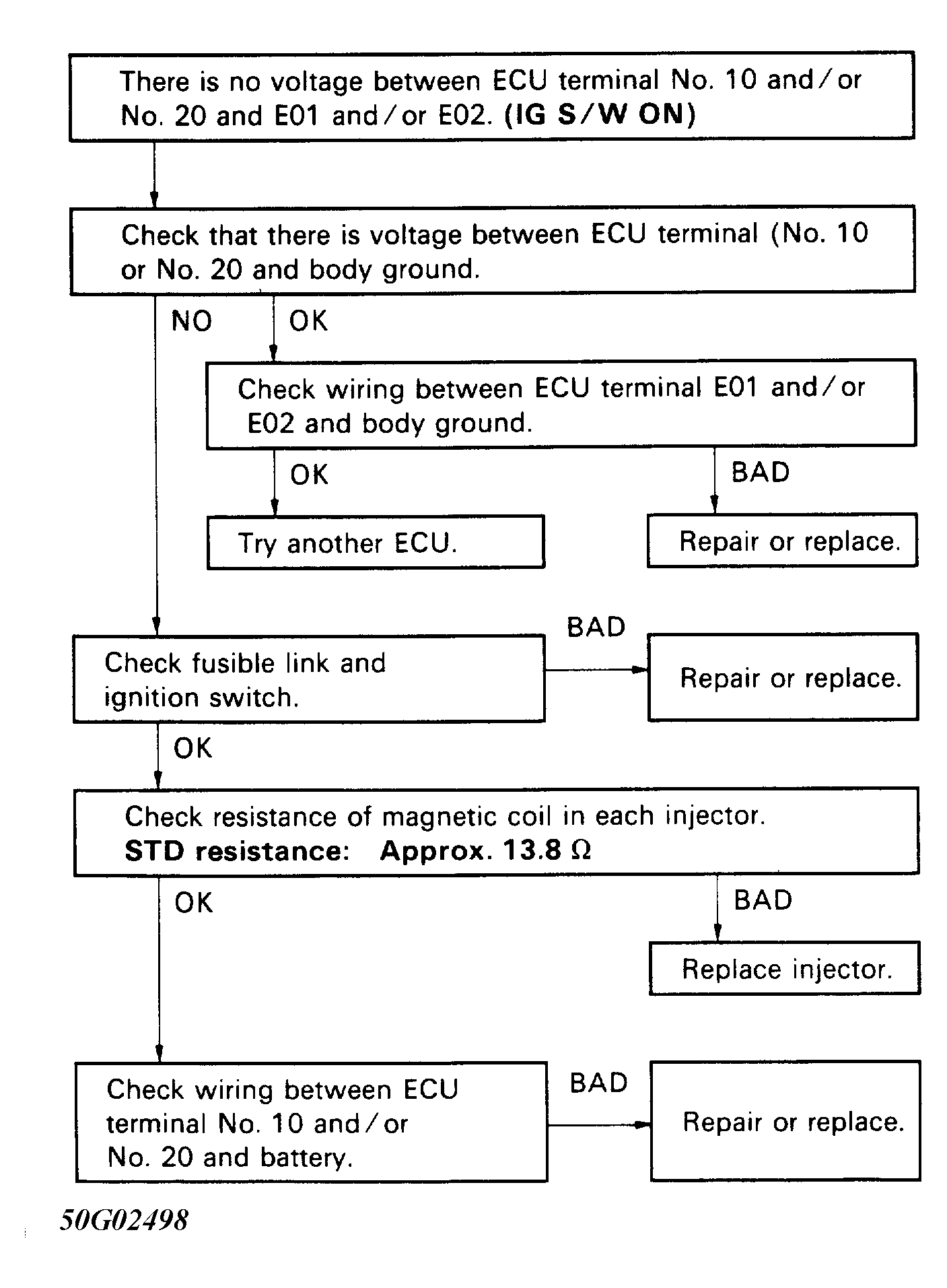

Fig 2: No. 15 Test, Injector Circuit Test, Flow Chart
