No. 16 Test, ISC Valve Circuit Test

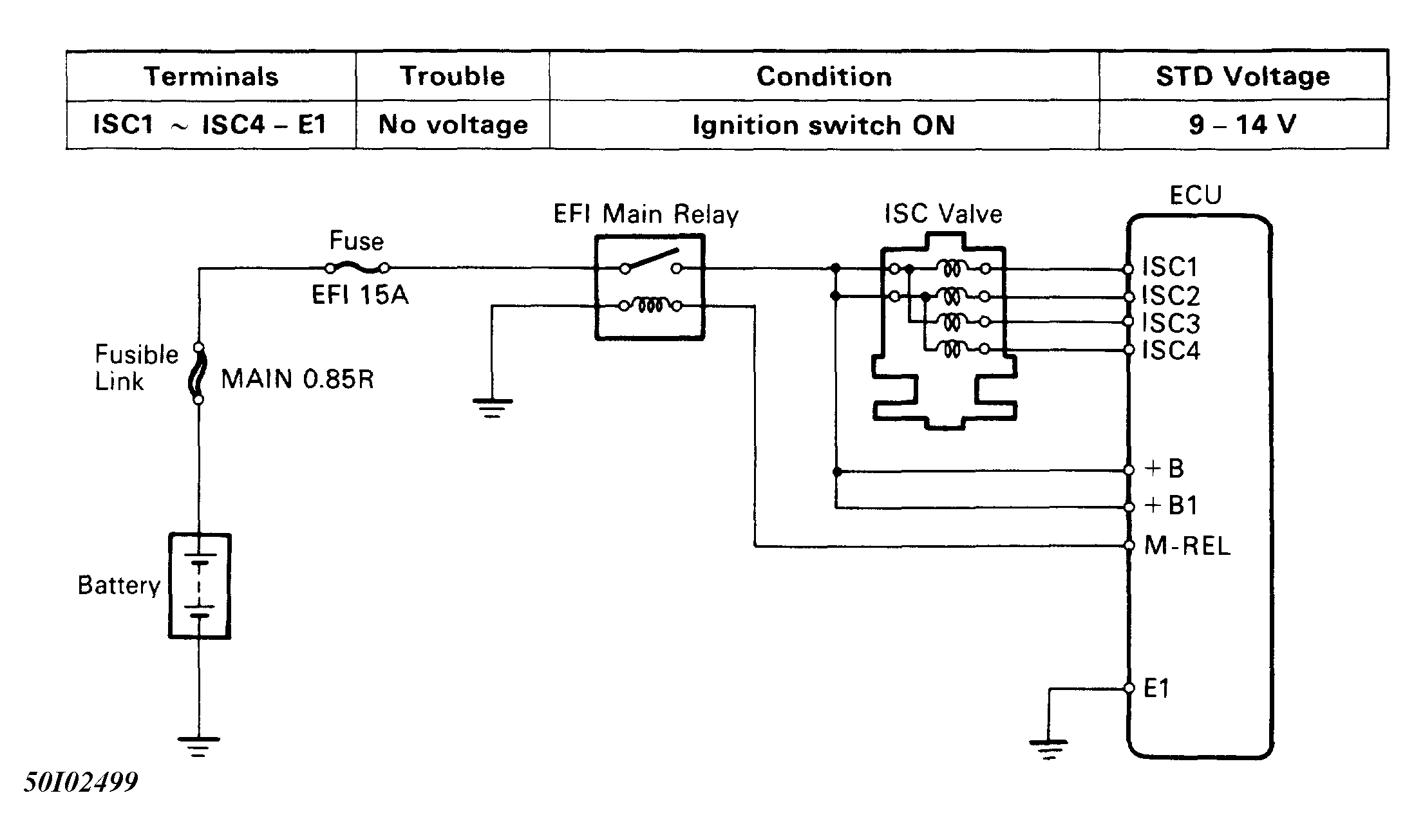

Fig 1: No. 16 Test, ISC Valve Circuit Test, Schematic

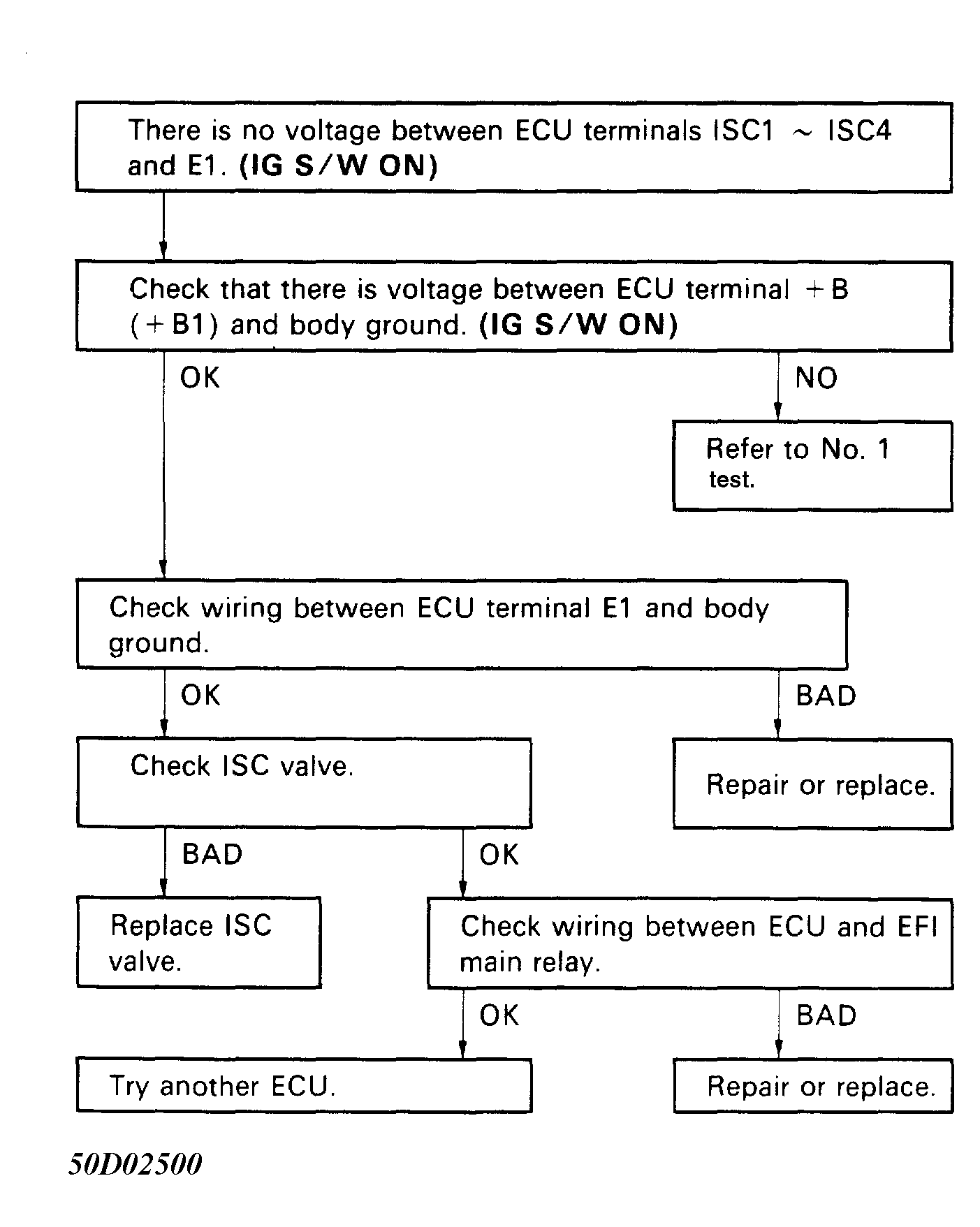

Fig 2: No. 16 Test, ISC Valve Circuit Test, Flow Chart
