No. 6 Test, Code 31, 32 (Code 2 On Turbo) Schematic, Airflow Meter Signal

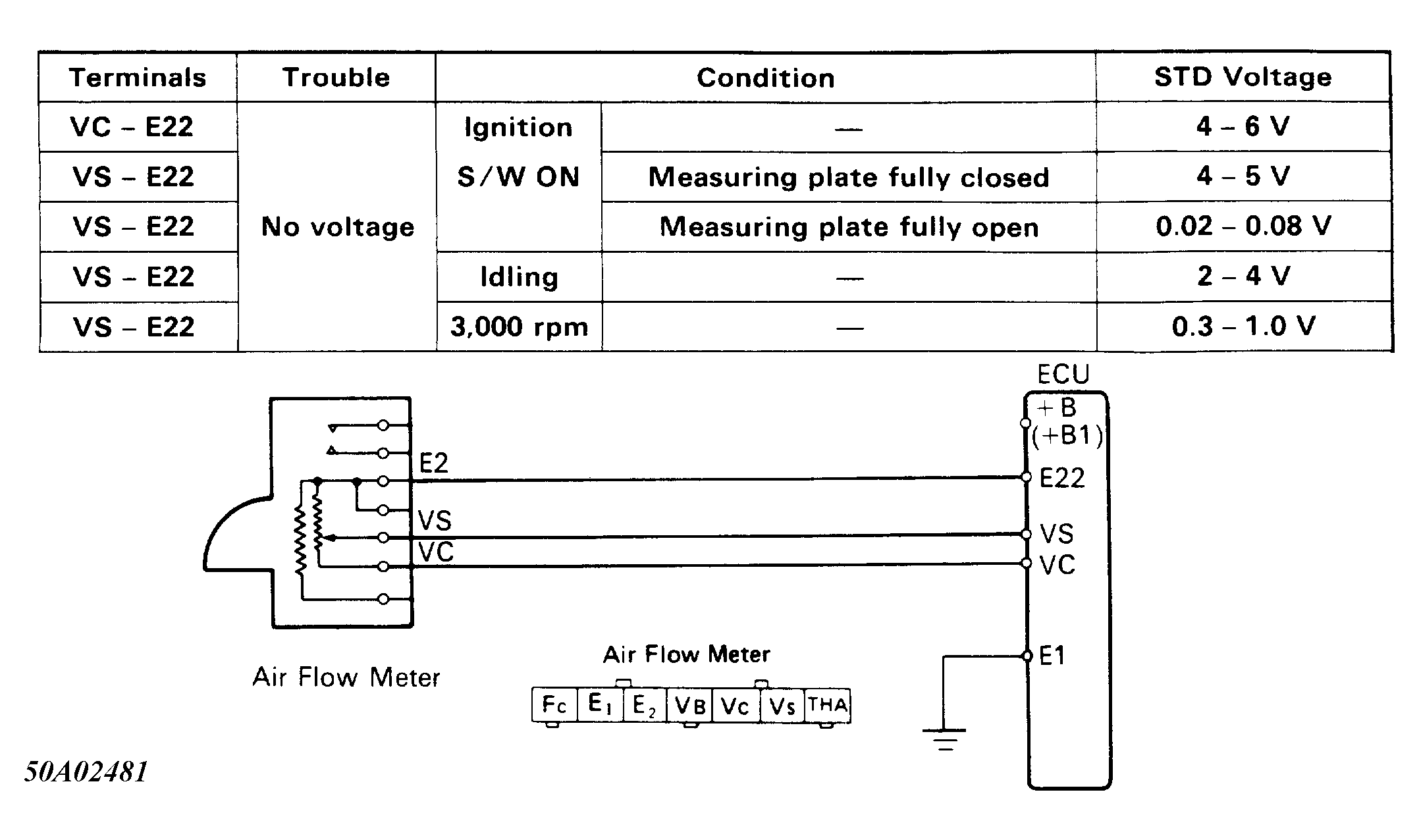

Fig 1: No. 6 Test, Code 31, 32 (Code 2 on Turbo) Schematic, Airflow Meter Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

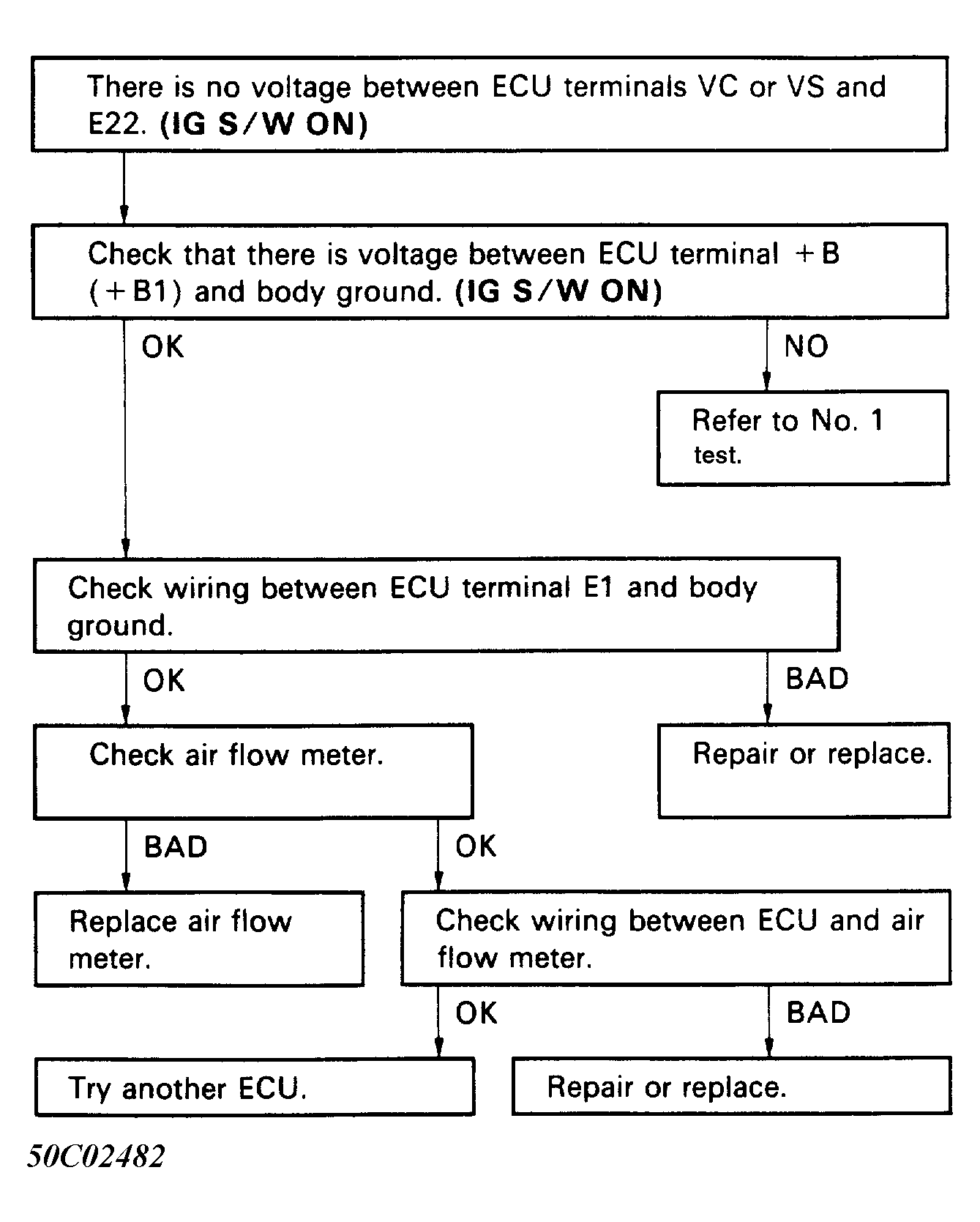

Fig 2: No. 6 Test, Code 31, 32 (Code 2 on Turbo) Flow Chart, Airflow Meter Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
