Wiring Diagrams

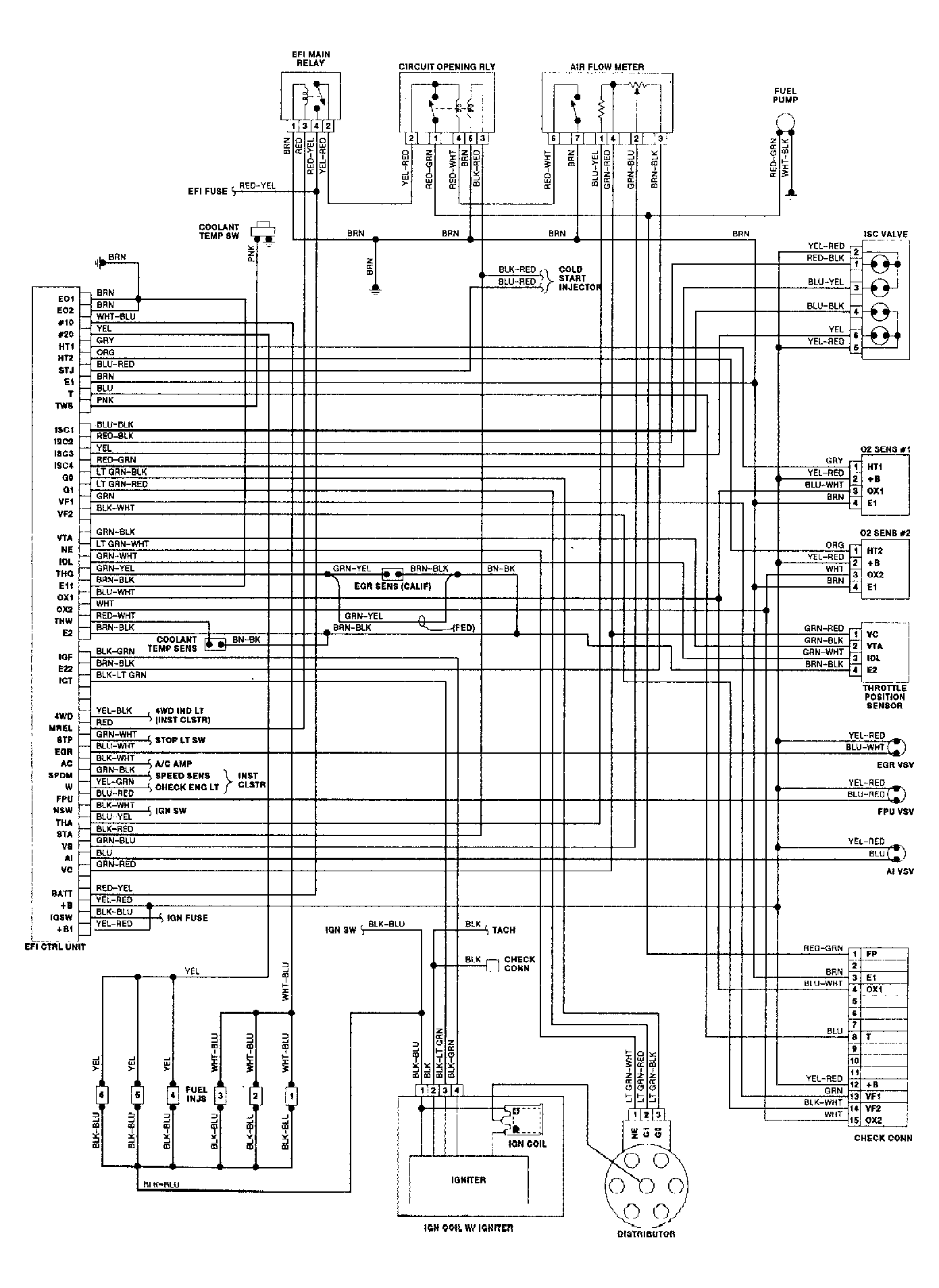

Fig 1: Toyota Computer Control System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
