Steering Column: Installation

  1. Install steering column in vehicle. Tighten column bracket bolts finger tight. Install column hole cover bolts. Tighten column bracket bolts.
  2. Attach column shift linkage (if equipped). Aligning marks made during removal on "U" joints, tighten clamp bolts. Install combination switch.
  3. Install bracket covers, dash panels and pads. Install air ducts (if equipped). Align marks made during removal, install steering wheel and horn pad.
Fig 1: Exploded View of Land Cruiser, Pickup, Van & 4Runner Steering Column
G41794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

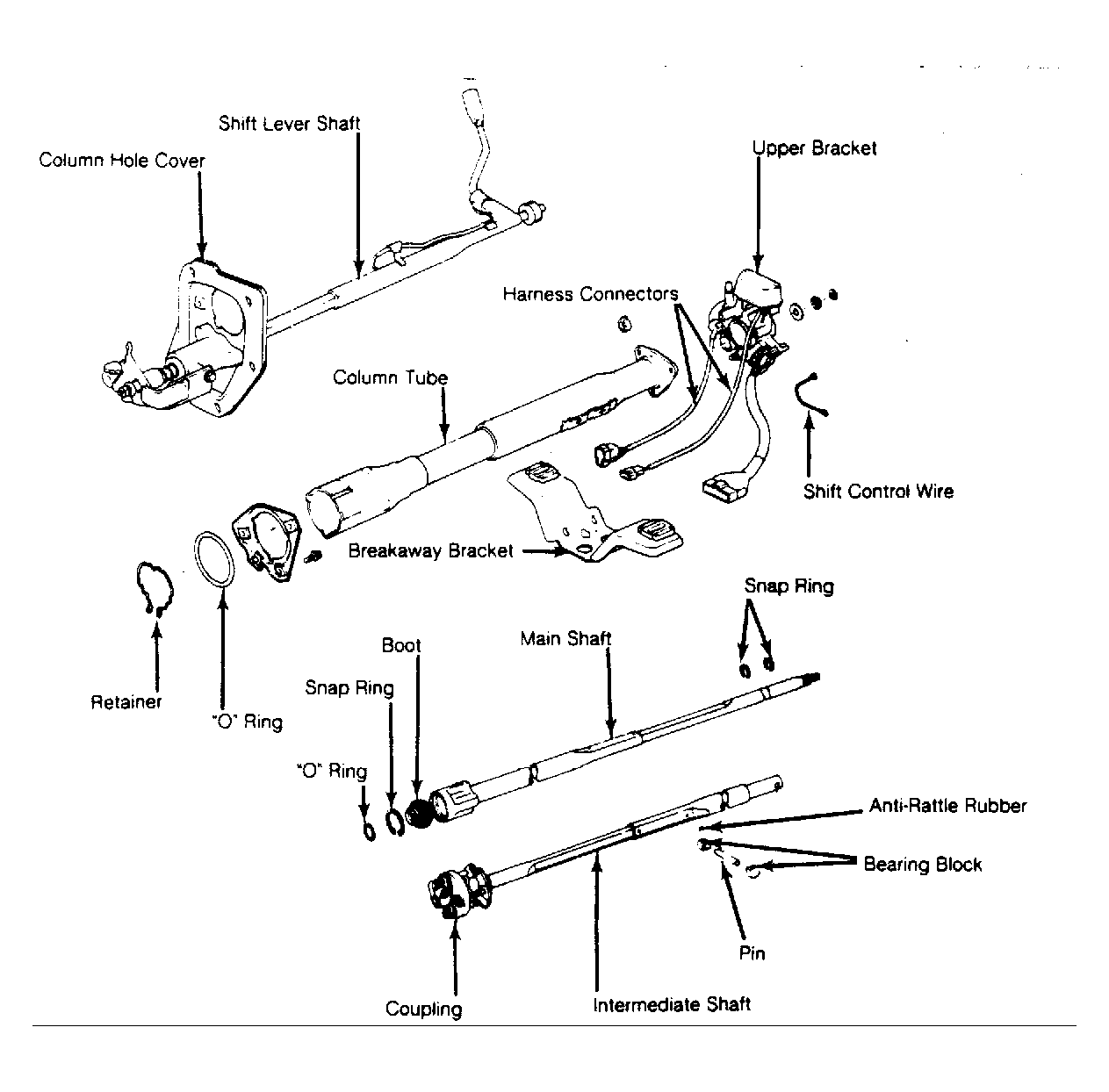

Fig 2: Exploded View of Column Shift Steering Column
G52726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
