No. 1 Test, Code 11, Ecu (+B) Circuit

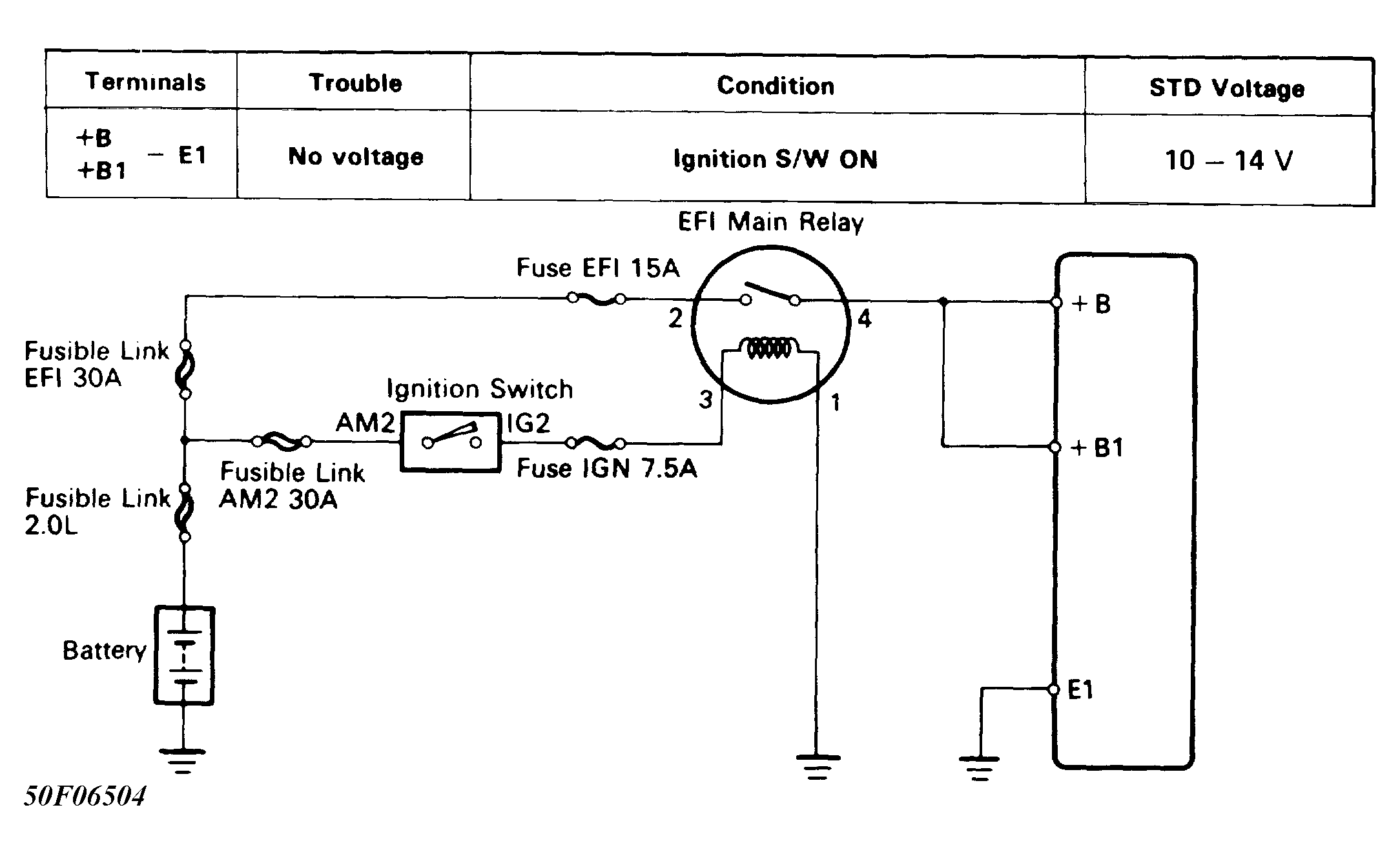

Fig 1: No. 1 Test, Code 11, ECU (+B) Circuit, Schematic
G50F06504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

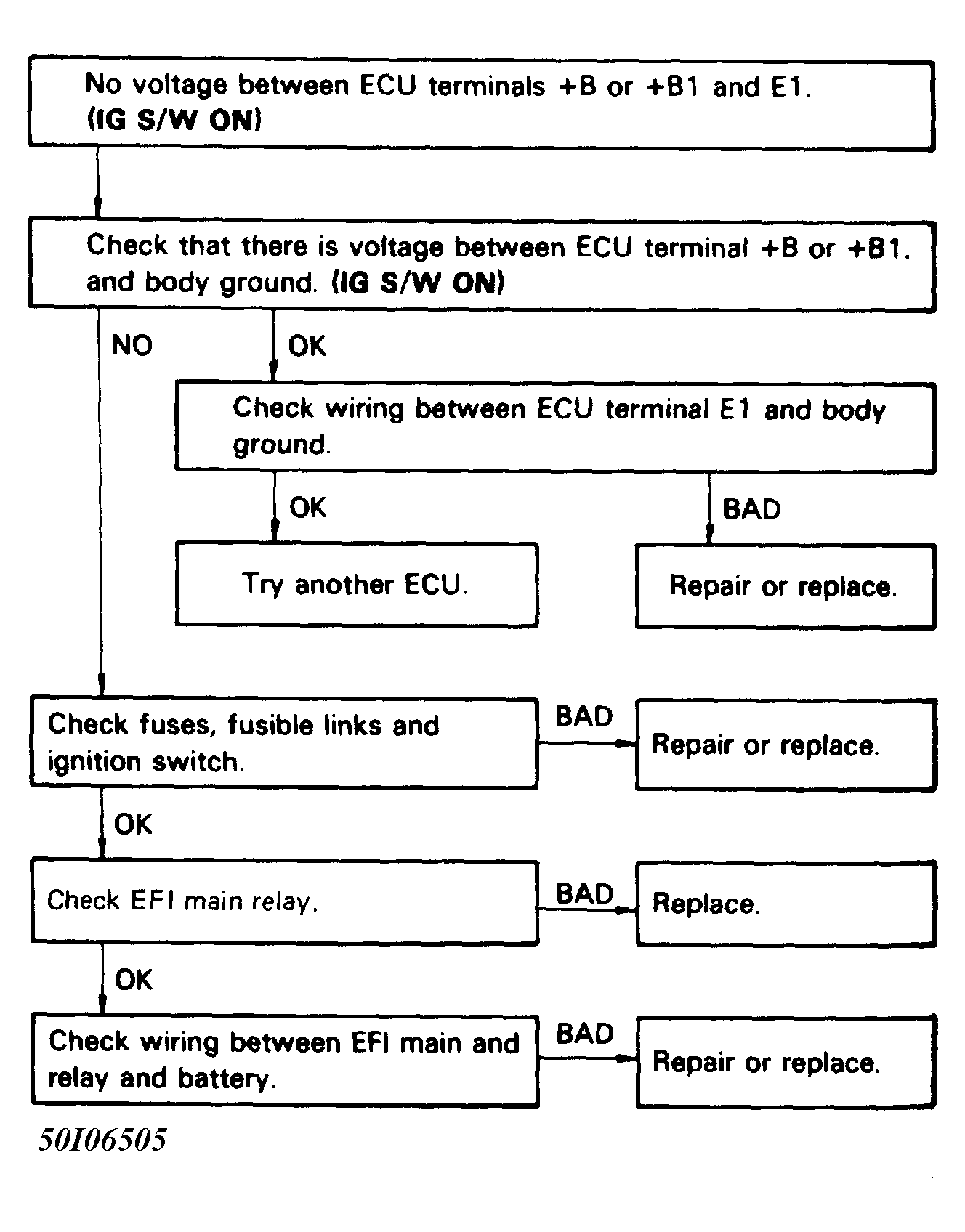

Fig 2: No. 1 Test, Code 11, ECU (+B) Circuit, Flow Chart
G50I06505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
