No. 17 Test A/C System Circuit Test

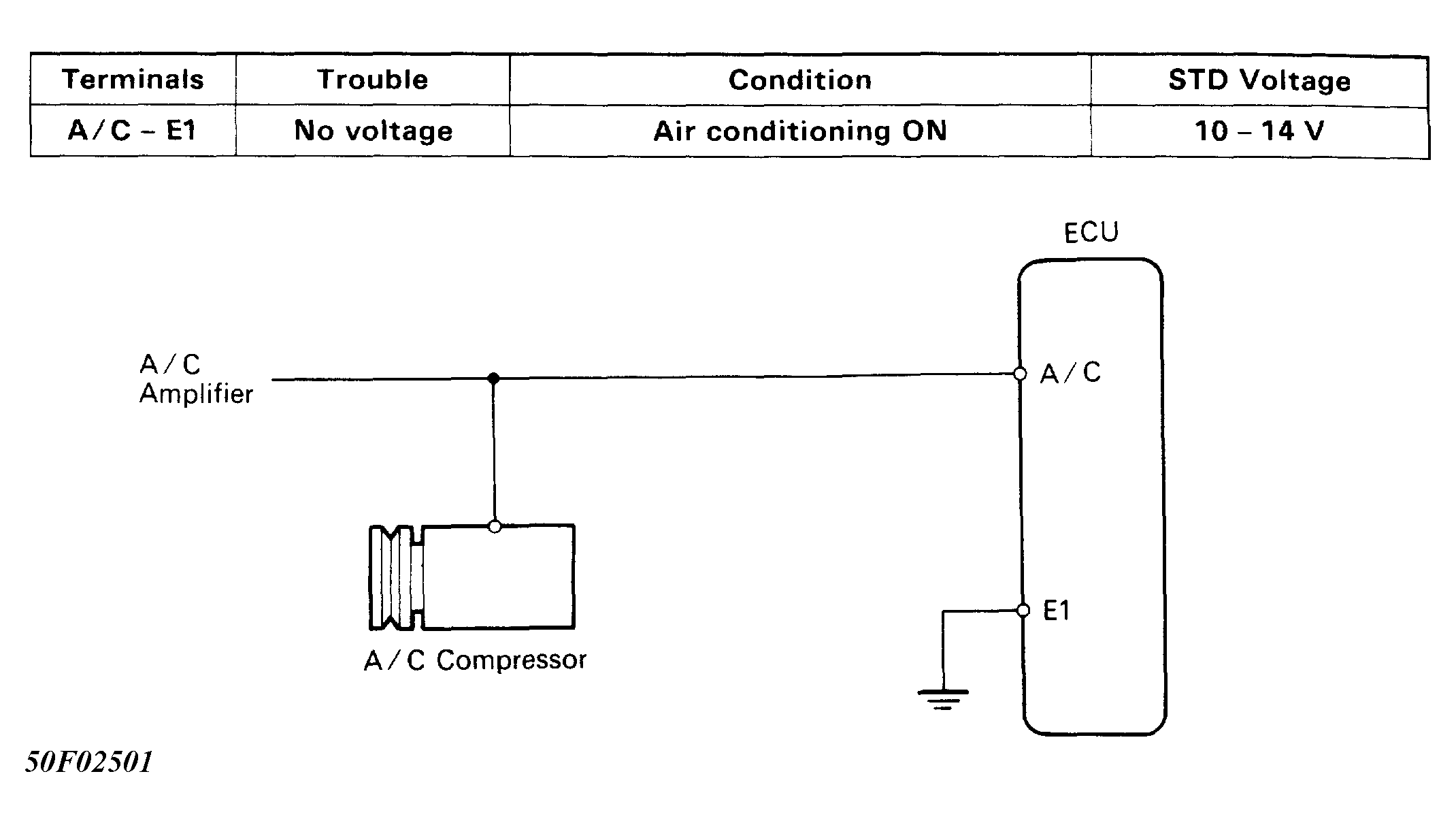

Fig 1: No. 17 Test A/C System Circuit Test, Schematic

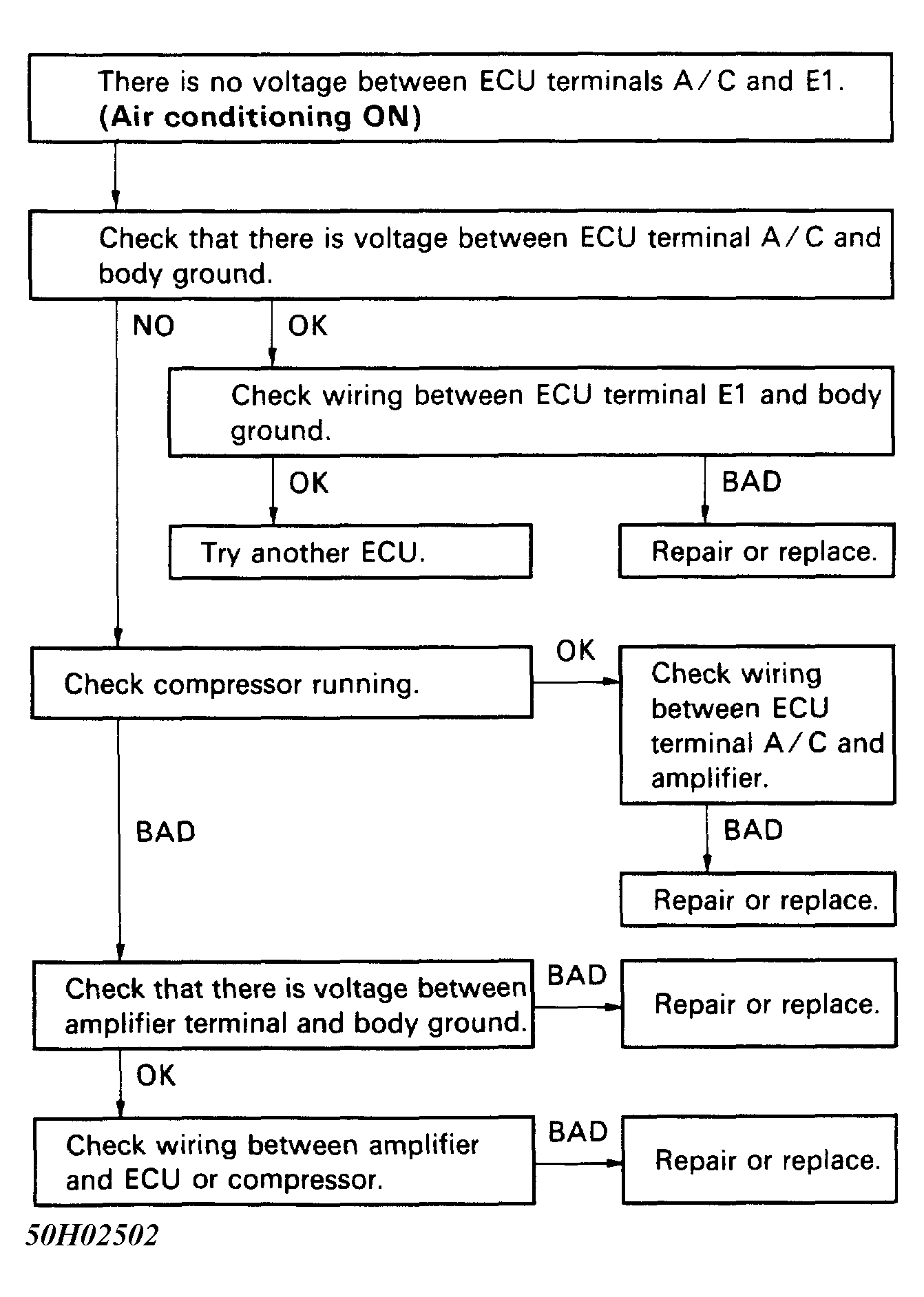

Fig 2: No. 17 Test A/C System Circuit Test, Flow Chart
