No. 8 Test, Code 41 (Code 7 On Turbo), TPS Sensor Signal

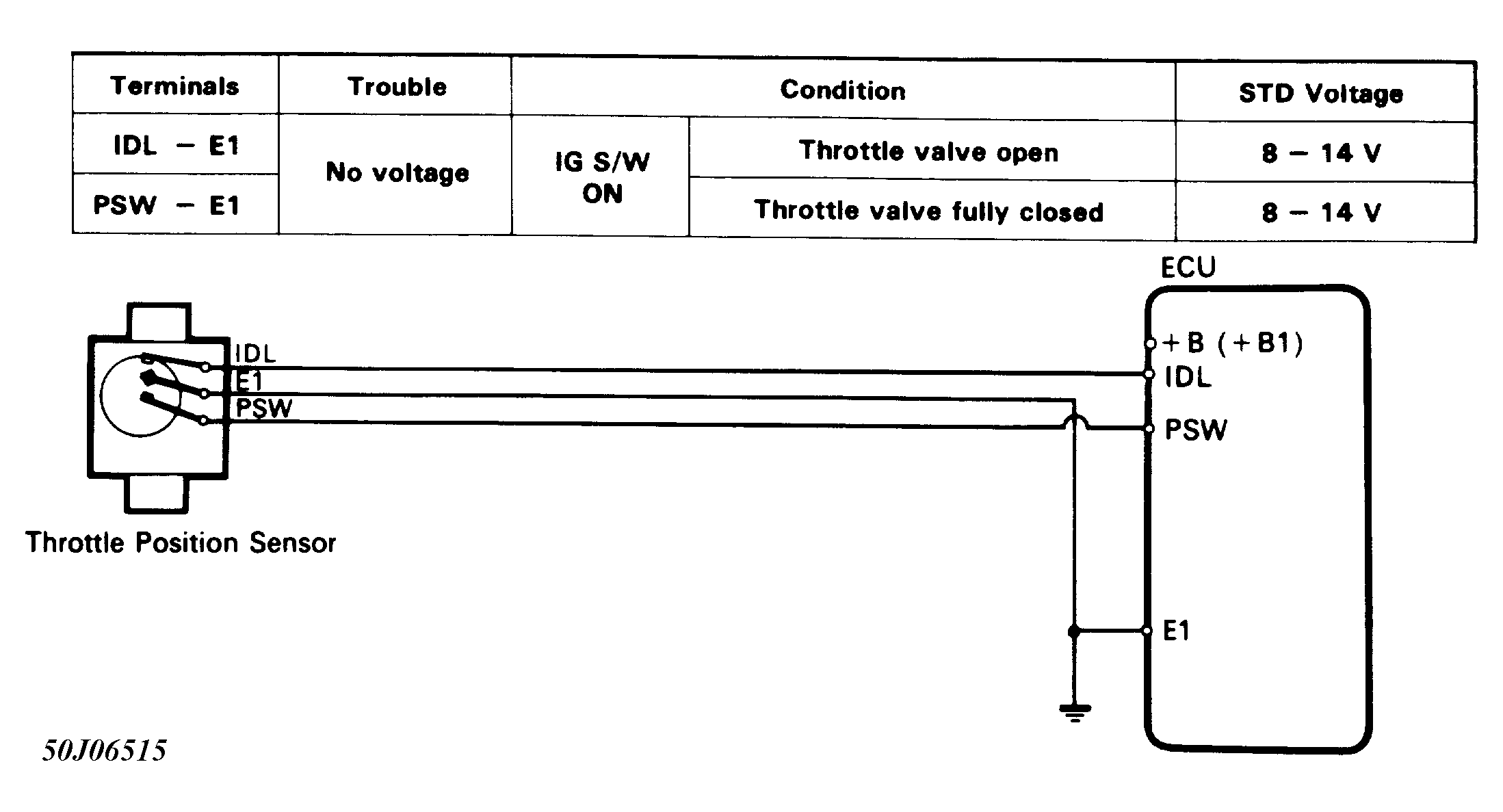

Fig 1: No. 8 Test Schematic, Code 41 (Code 7 on Turbo), TPS Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

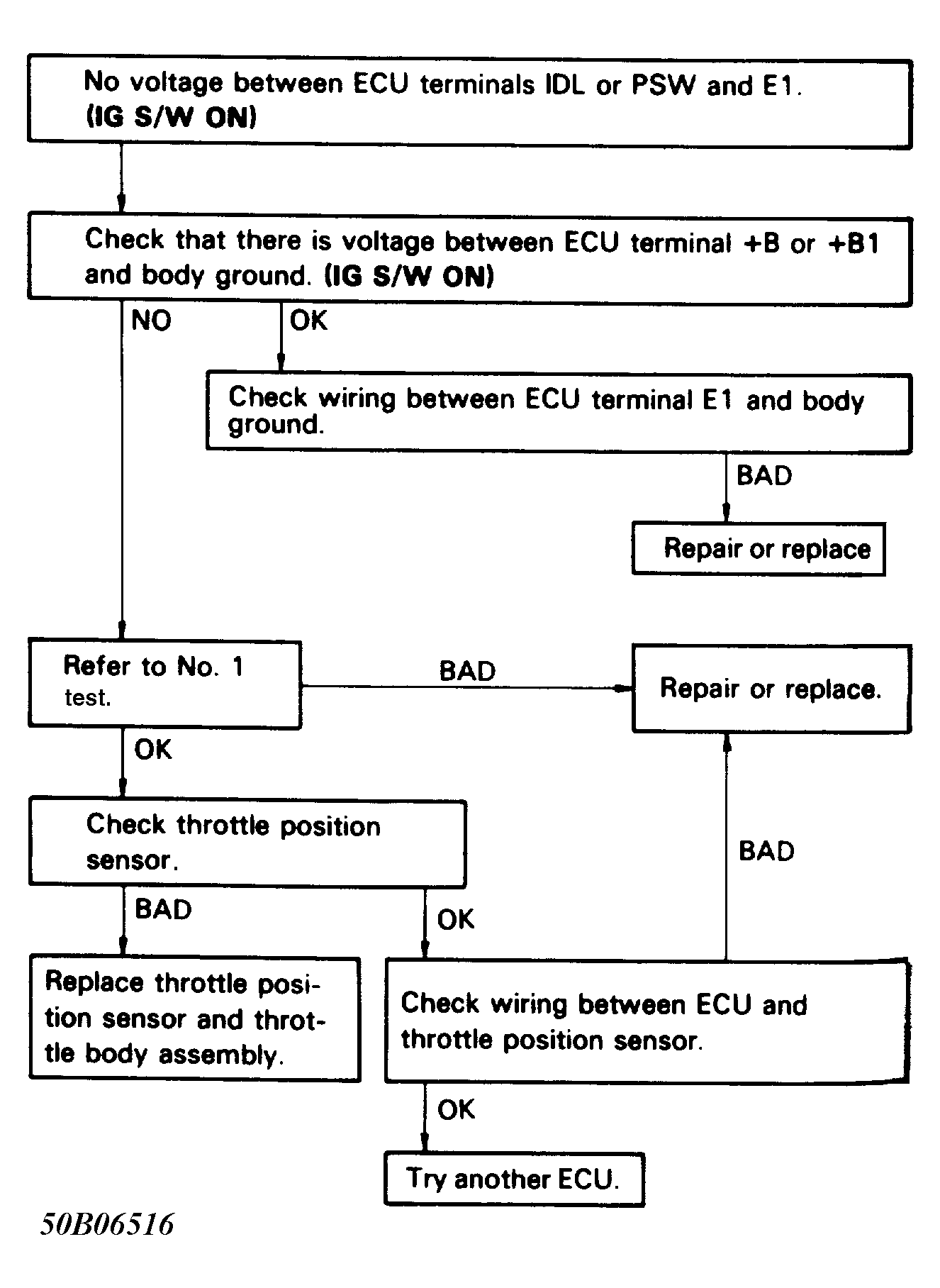

Fig 2: No. 8 Test Flow Chart, Code 41 (Code 7 on Turbo), TPS Sensor Signal

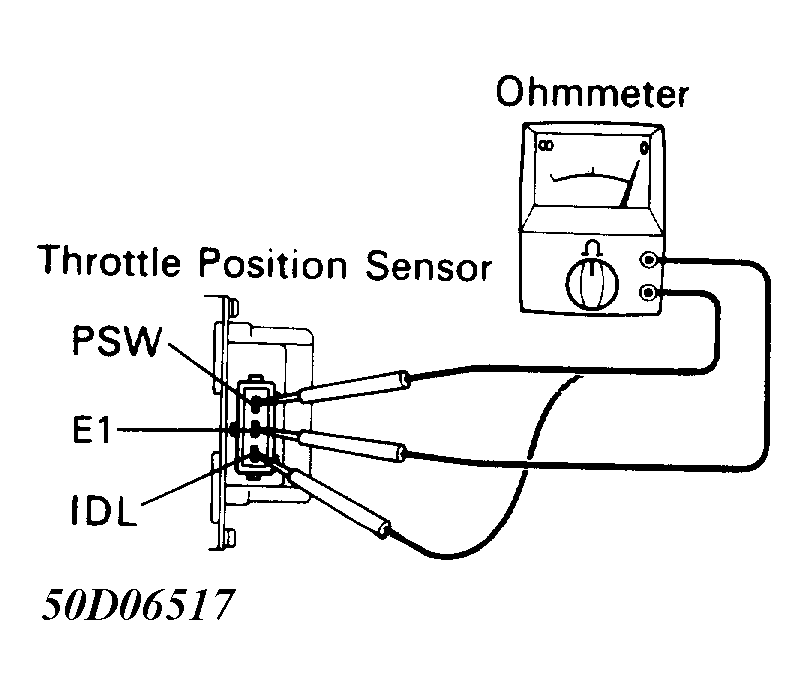

Fig 3: No. 8 Test, Code 41 (Code 7 on Turbo), TPS Sensor Check Signal
