Test 4 Or Code 22 - Coolant Temperature Sensor Signal
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Test 4 Or Code 22 - Coolant Temperature Sensor Signal

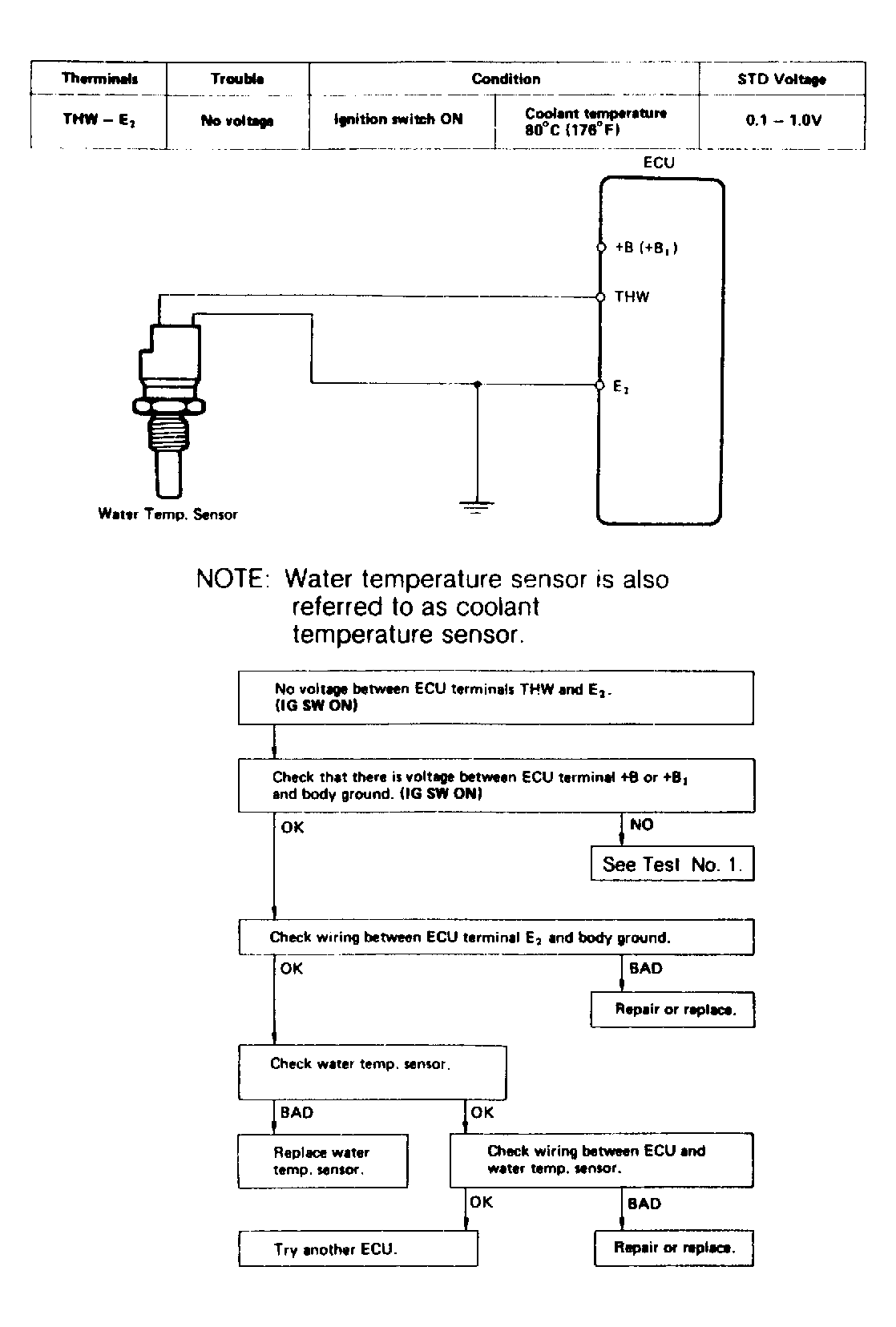

Fig 1: Test 4 or Code 22 Diagram & Flow Chart (22R)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
