System Flow Charts: Supra

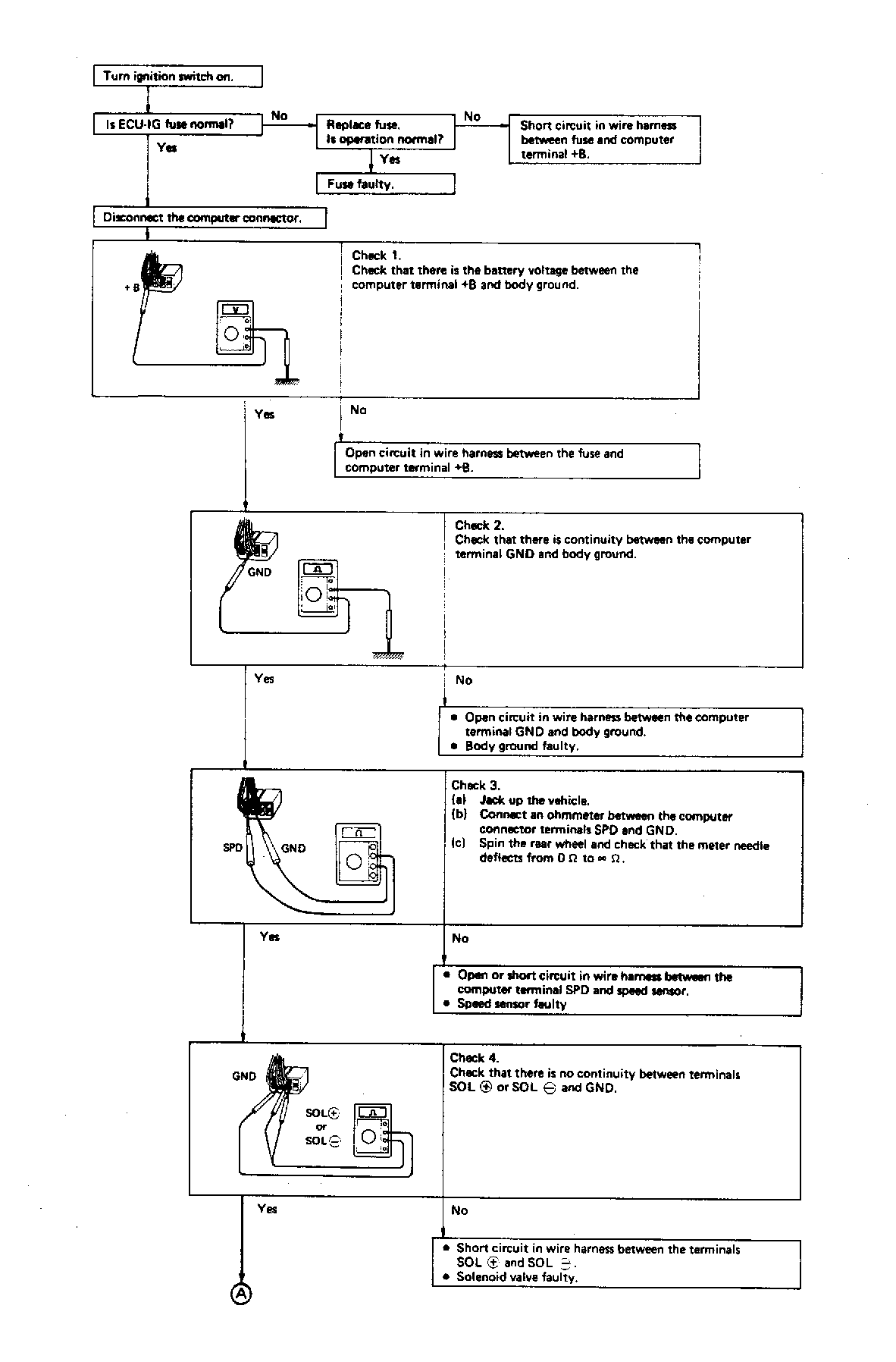

Fig 1: Supra Flow Chart (Part 1 of 2
G90D04660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

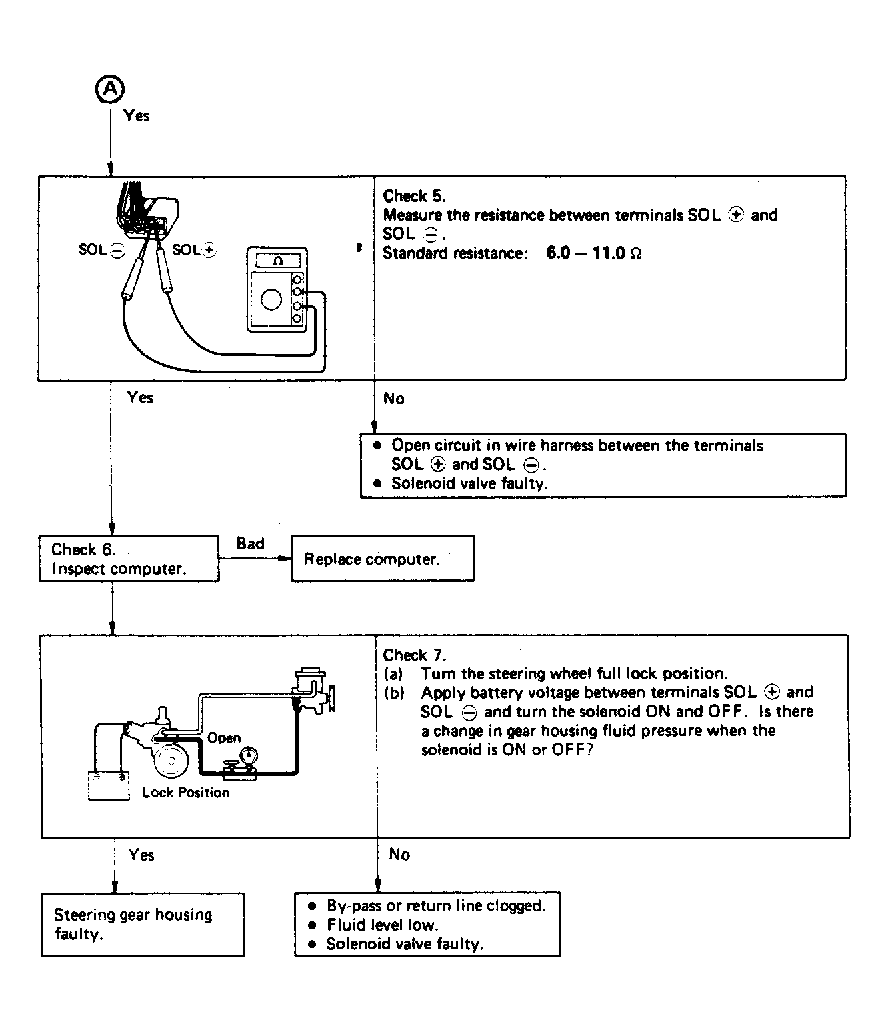

Fig 2: Supra Flow Chart (Part 2 of 2)
G90F04661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
