Cold Enrichment Breaker System No. 2: Tercel

Check Vacuum Switching Valve (VSV). Connect battery to VSV terminals as shown. See Fig 1. Blow air into nozzle. Check that VSV is open.
Disconnect battery positive terminal. Blow air into nozzle. Check that VFV is closed. See Fig 2. If VSV does not function as described, replace valve.

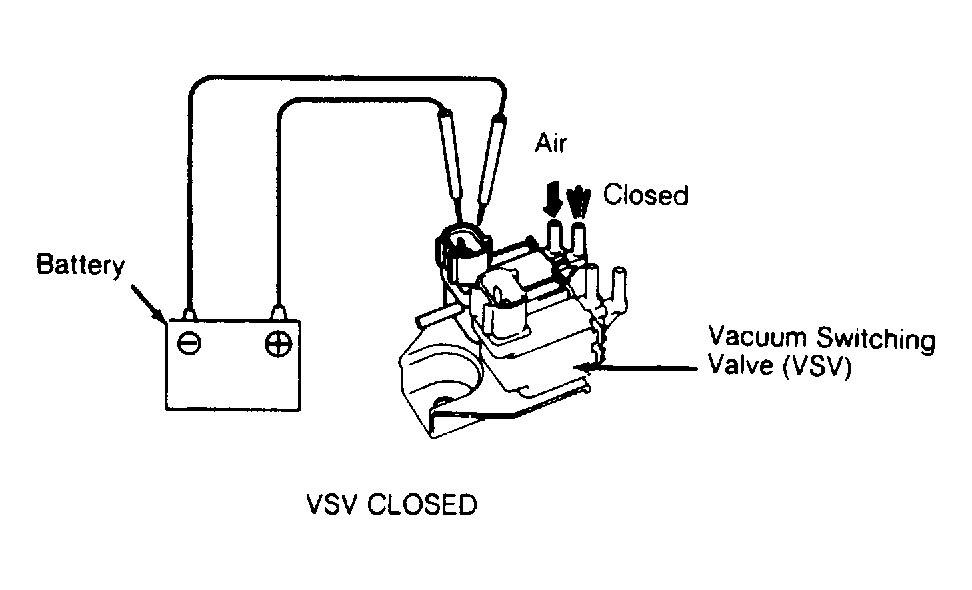

Fig 1: Testing VSV Open (Tercel)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

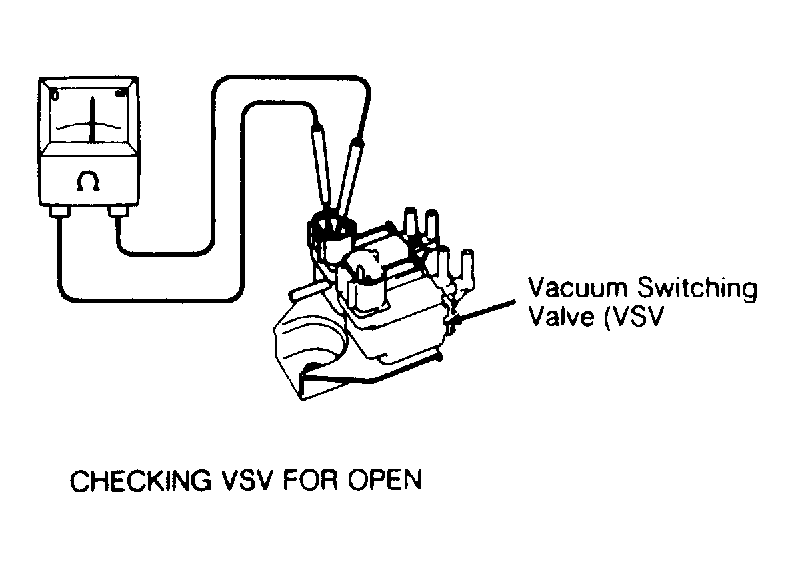

Fig 2: Testing VSV Closed (Tercel)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Check VSV for short. Using an ohmmeter, check that continuity does not exist between positive terminal and VSV body. See Fig 3. If continuity exists, replace VSV.
Check VSV for open. Using an ohmmeter, check resistance between VSV terminals. See Fig 4. Resistance should be 38-44 ohms at 68°F (20°C). If resistance is not within specification, replace VSV.

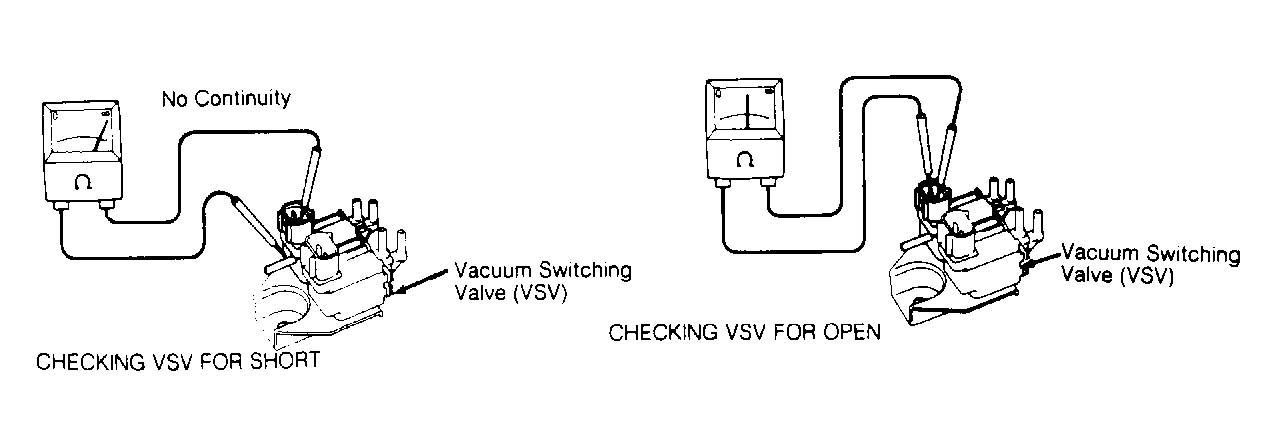

Fig 3: Testing Vacuum Switching Valve For Short (Tercel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Testing Vacuum Switching Valve For Open (Tercel)

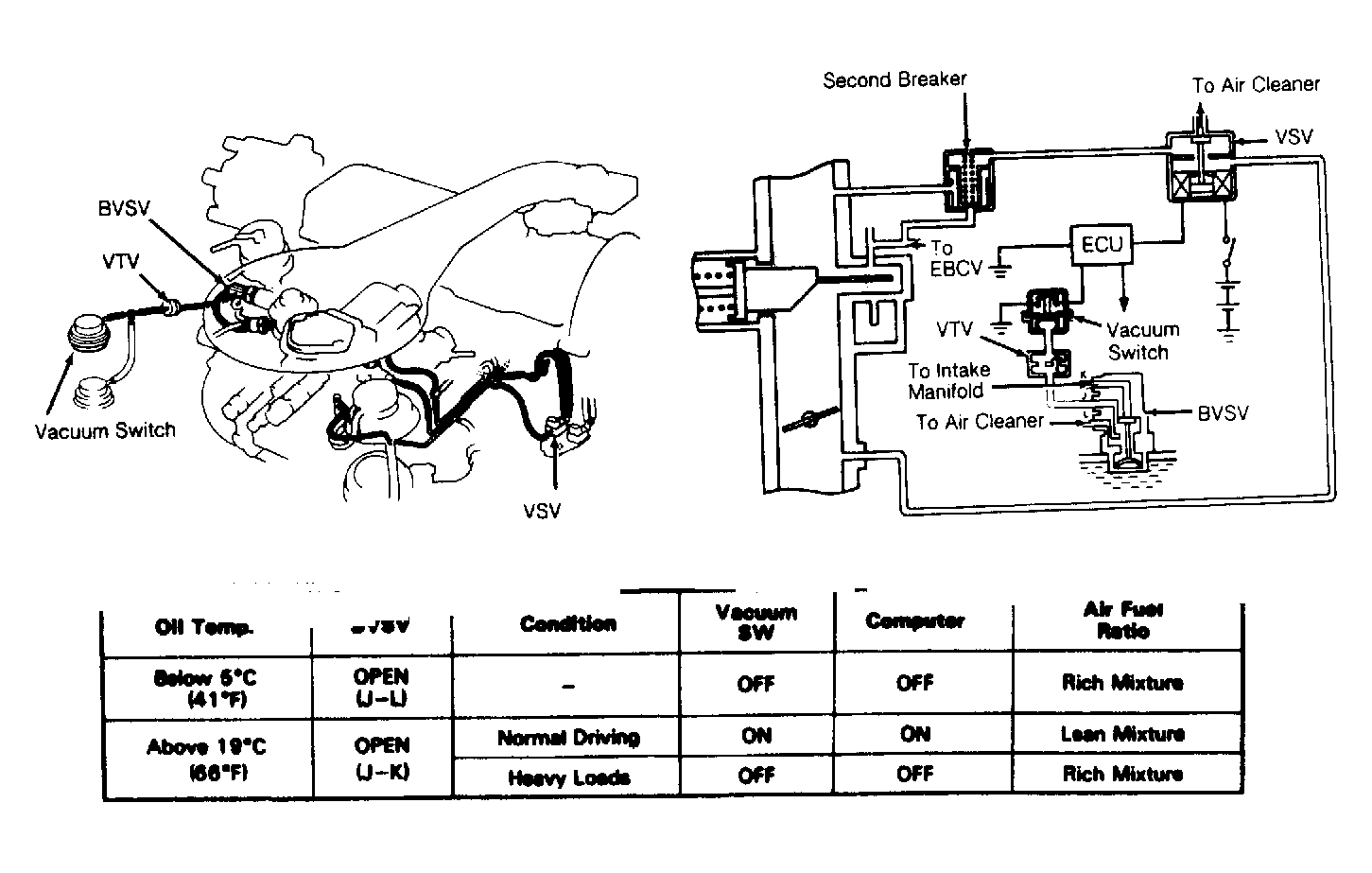

Fig 5: Cold Enrichment Breaker System No. 2 Comp & Param (Tercel)
