Pickup (California 22R)

Check O2 sensor heater resistance. Using an ohmmeter, measure resistance between terminals "B+" and "HT". See Fig 1. Resistance should measure 5.1-6.3 ohms at 68°F (20°C). If resistance is not within specification, replace O2 sensor.

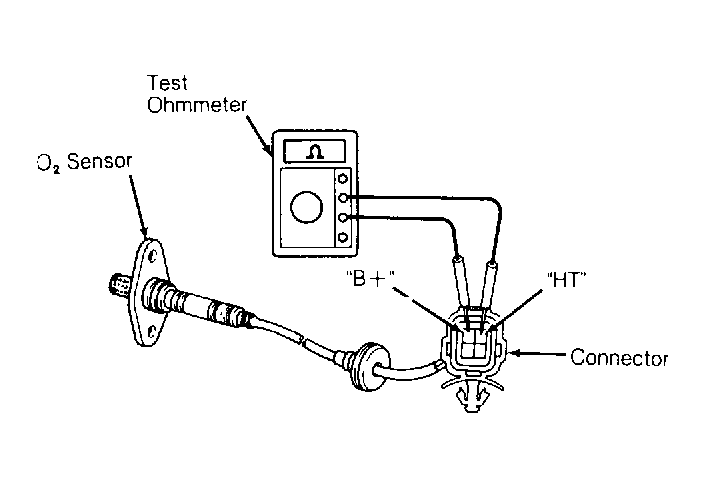

Fig 1: Checking O2 Sensor Heater Resistance (Pickup 22R Calif.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
