Test 9 Or Code 72 - Fuel Cut Solenoid Signal

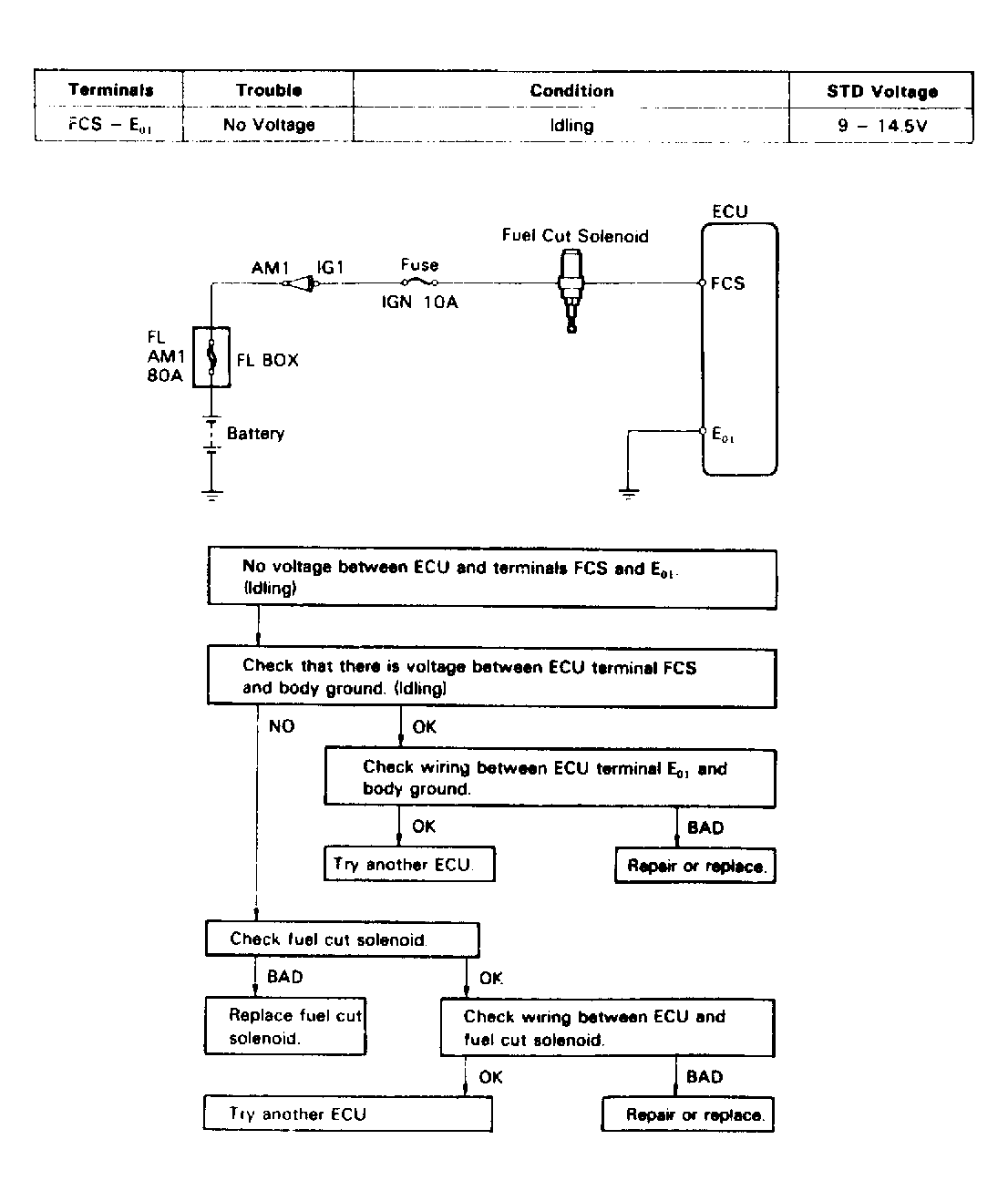

Fig 1: Test 9 or Code 72 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
