Test J: Headlights Flash Even If System Is Not Set

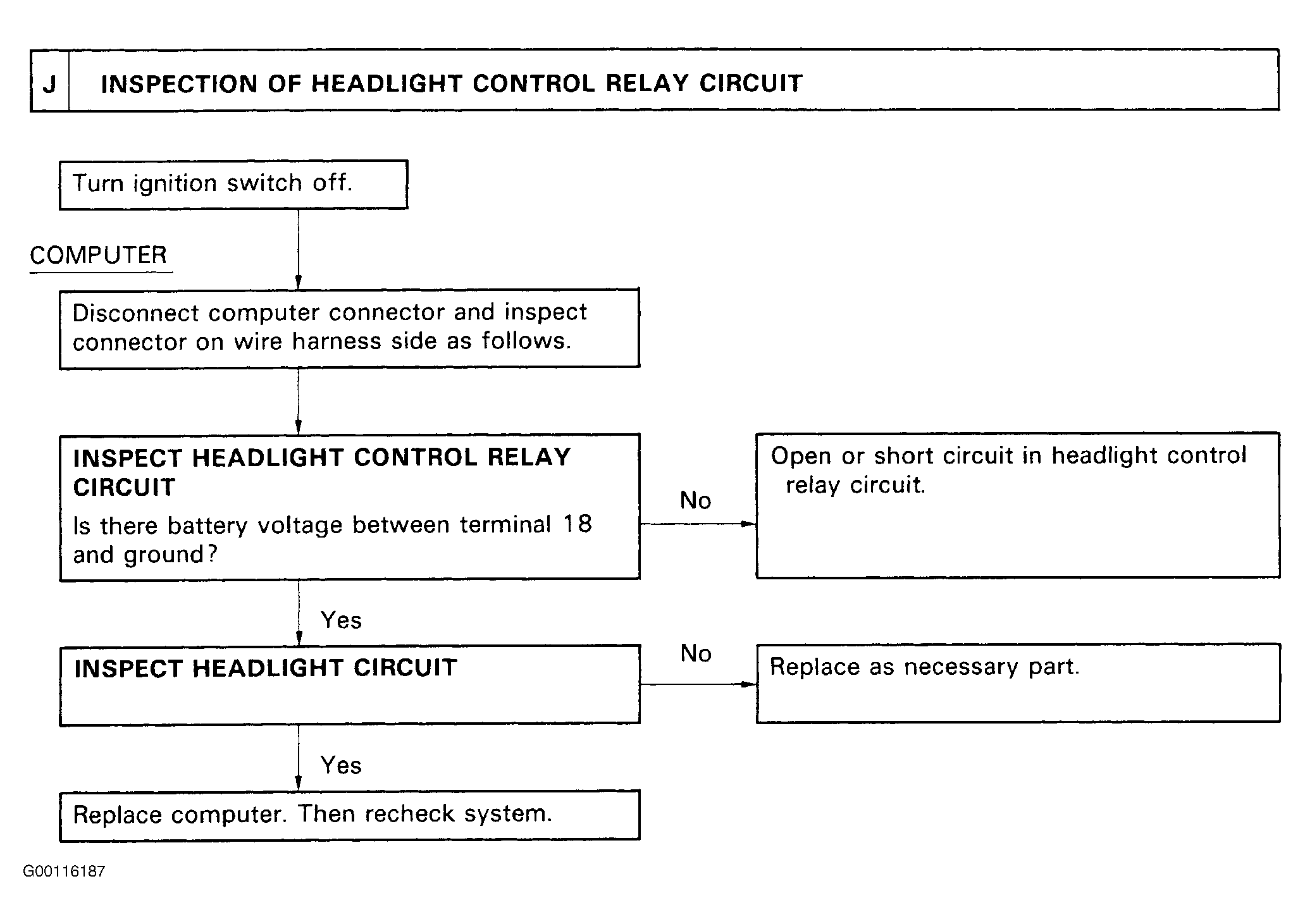

For test procedure, refer to illustration. See
Figure
.
