Engine Main Relay

Engine main relay supplies power to cooling fan relay. Relay is located in engine compartment relay and fuse box. On all models, use illustration as guide to test relay. See Fig 1.

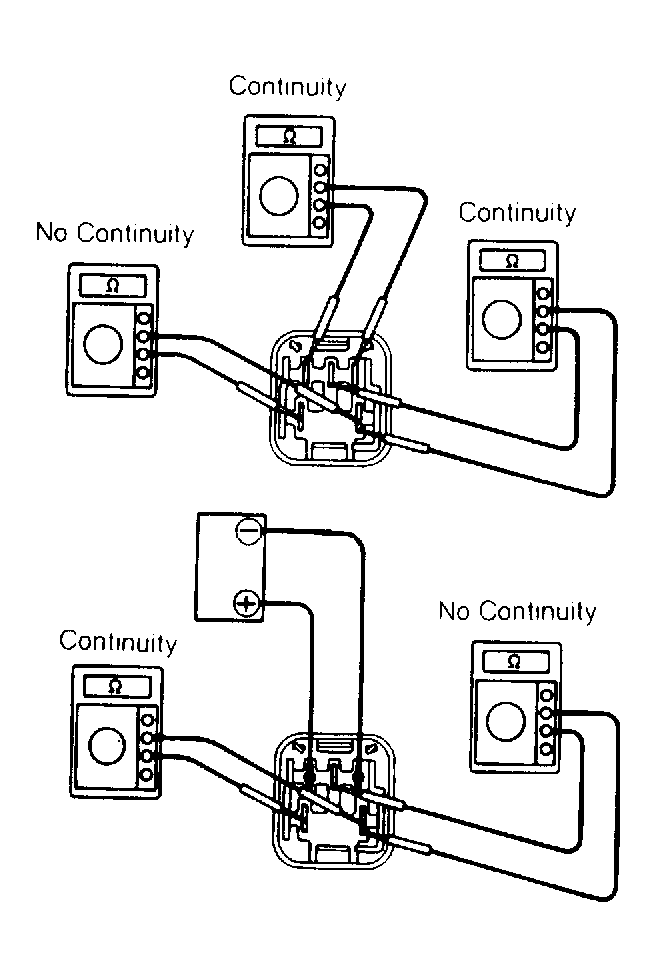

Fig 1: Testing Engine Main Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
