Mixture Control (MC) System: Pickup

Remove air cleaner. Start engine. Disconnect vacuum hose from MC valve. Check that vacuum is felt from MC valve air inlet. See Fig 1.
NOTE: When vacuum hose to MC valve is reconnected, it is normal for engine to idle rough or stall.
Reconnect vacuum hose and check that vacuum is momentarily felt. If MC Valve does not function as described, replace MC valve.

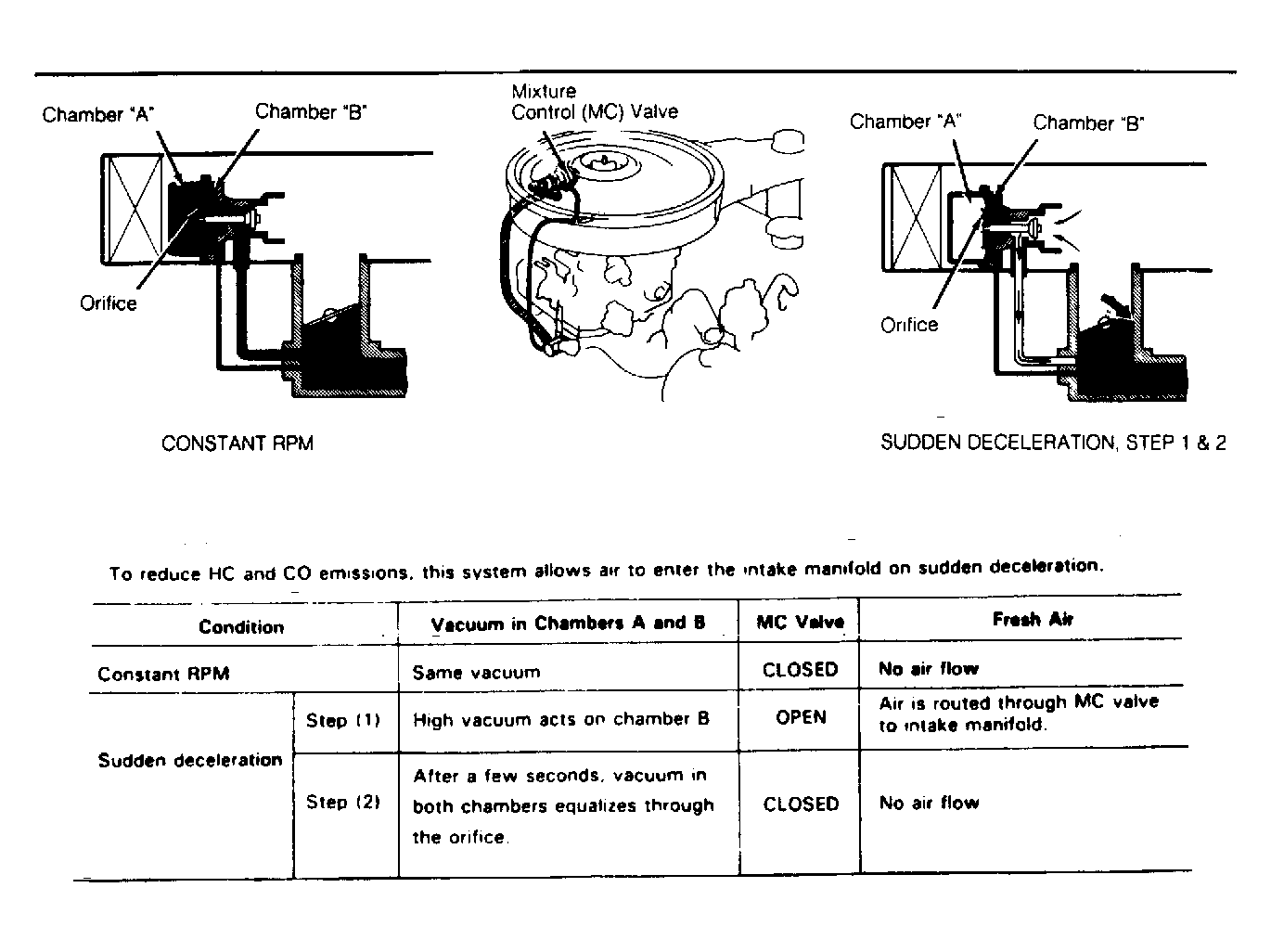

Fig 1: MC System Components & Parameters (Pickup)

G119368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

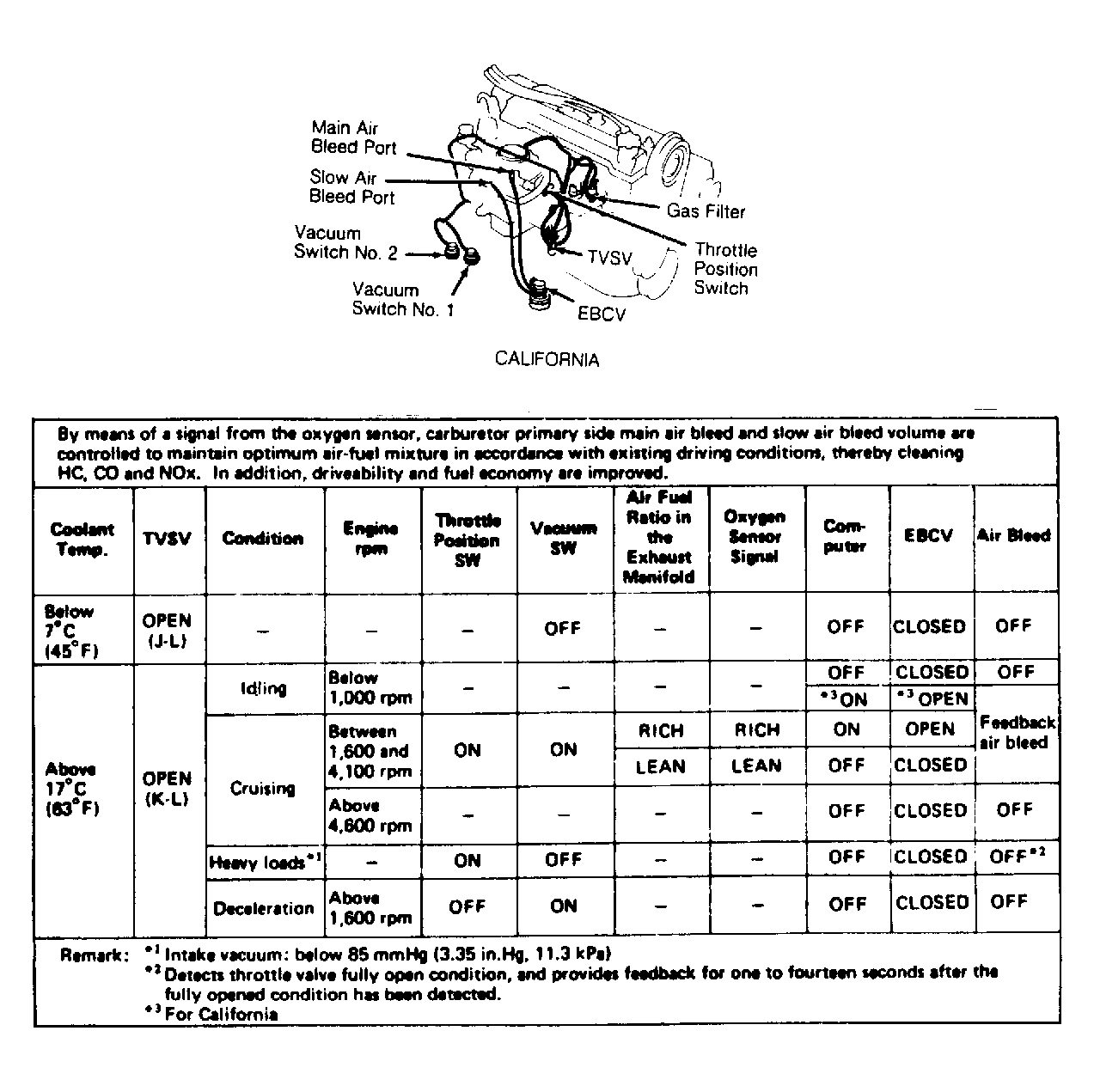

Fig 2: Corolla (Calif.) Carb Feedback Vacuum Diagram & Parameters

G119277

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

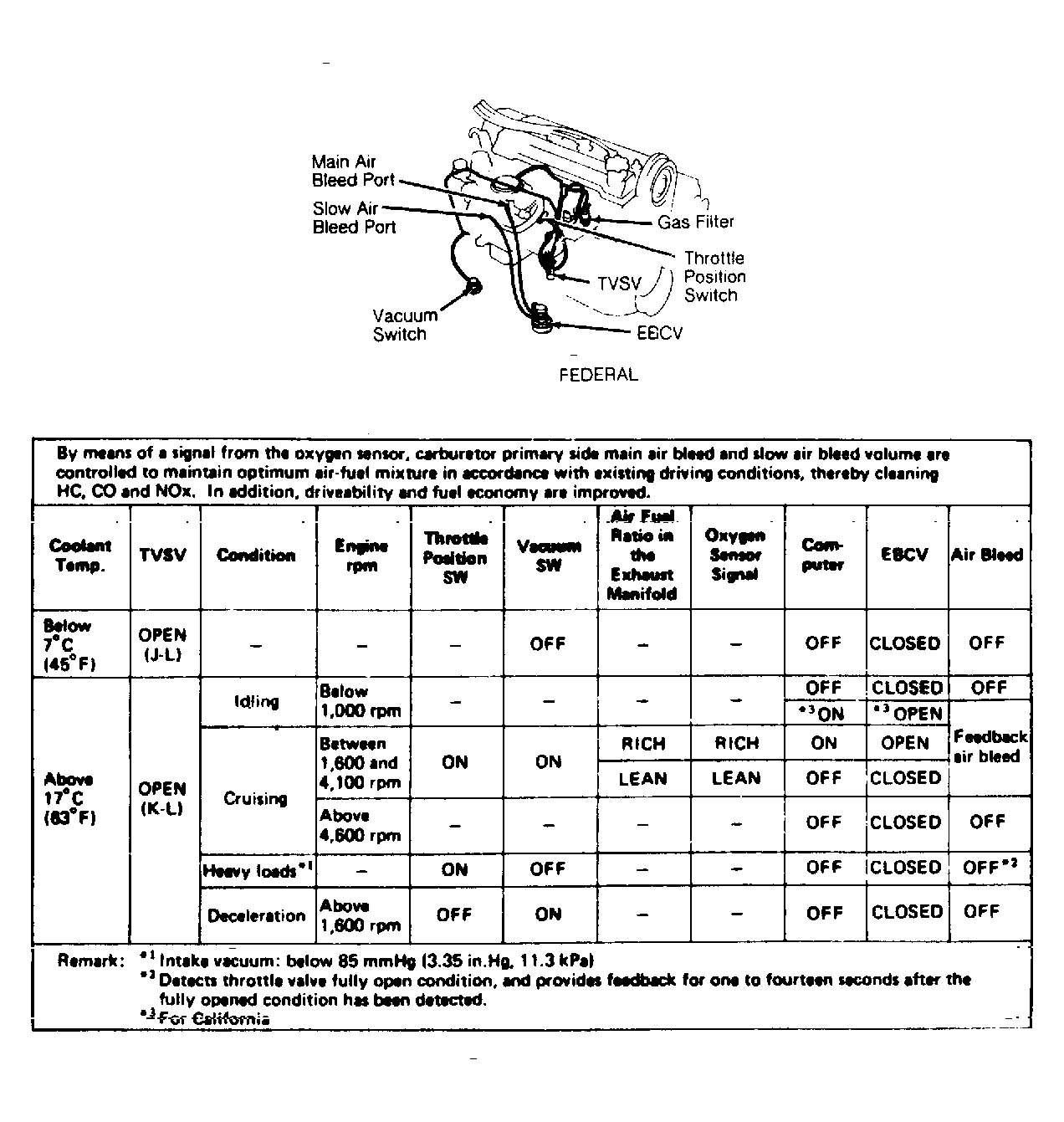

Fig 3: Corolla (Federal) Carb Feedback Vacuum Diagram & Parameters

G119278

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

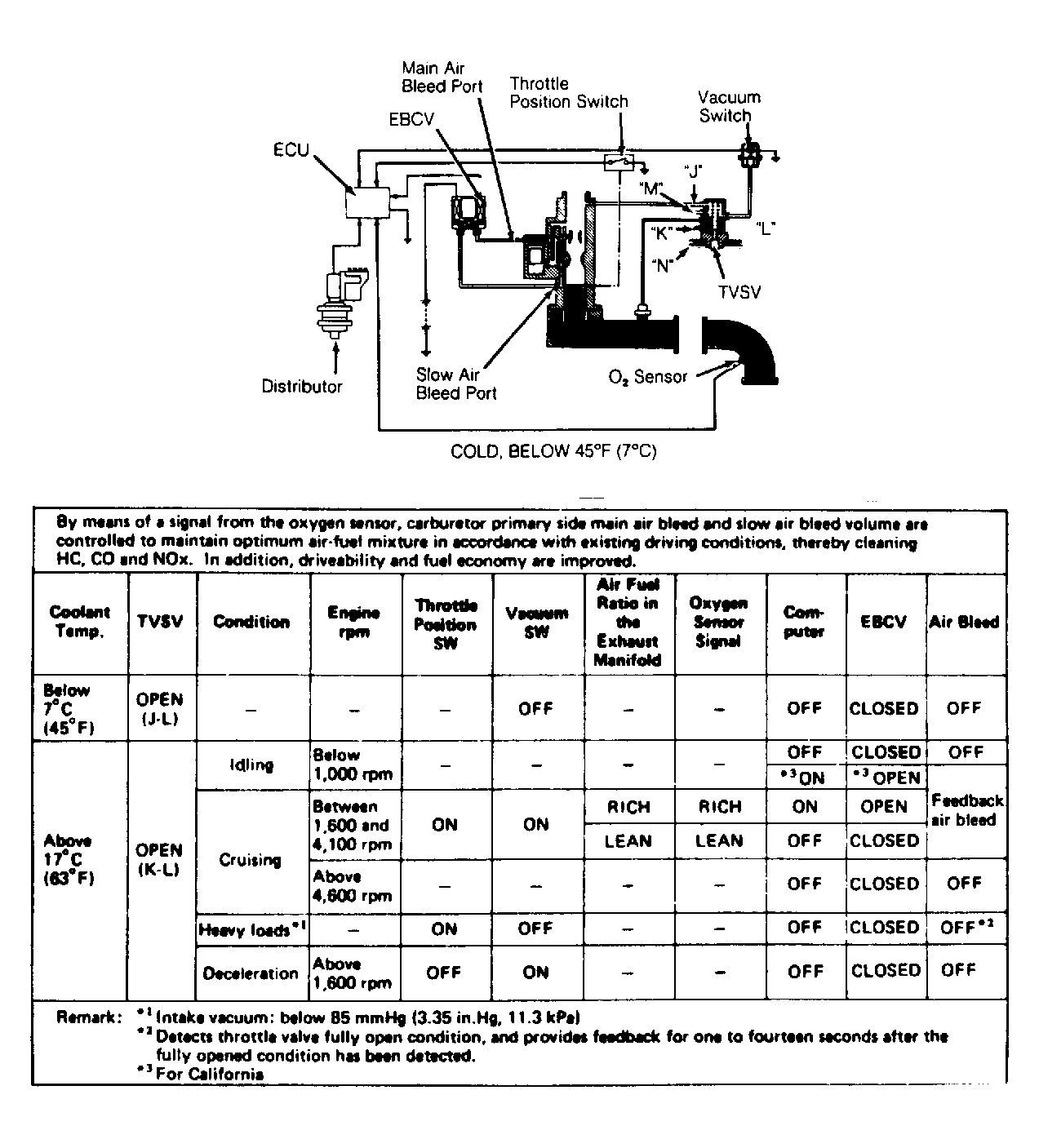

Fig 4: Corolla Carb bk Comp & Parameters (Cold, Below 45°F (7°C))

G119279

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

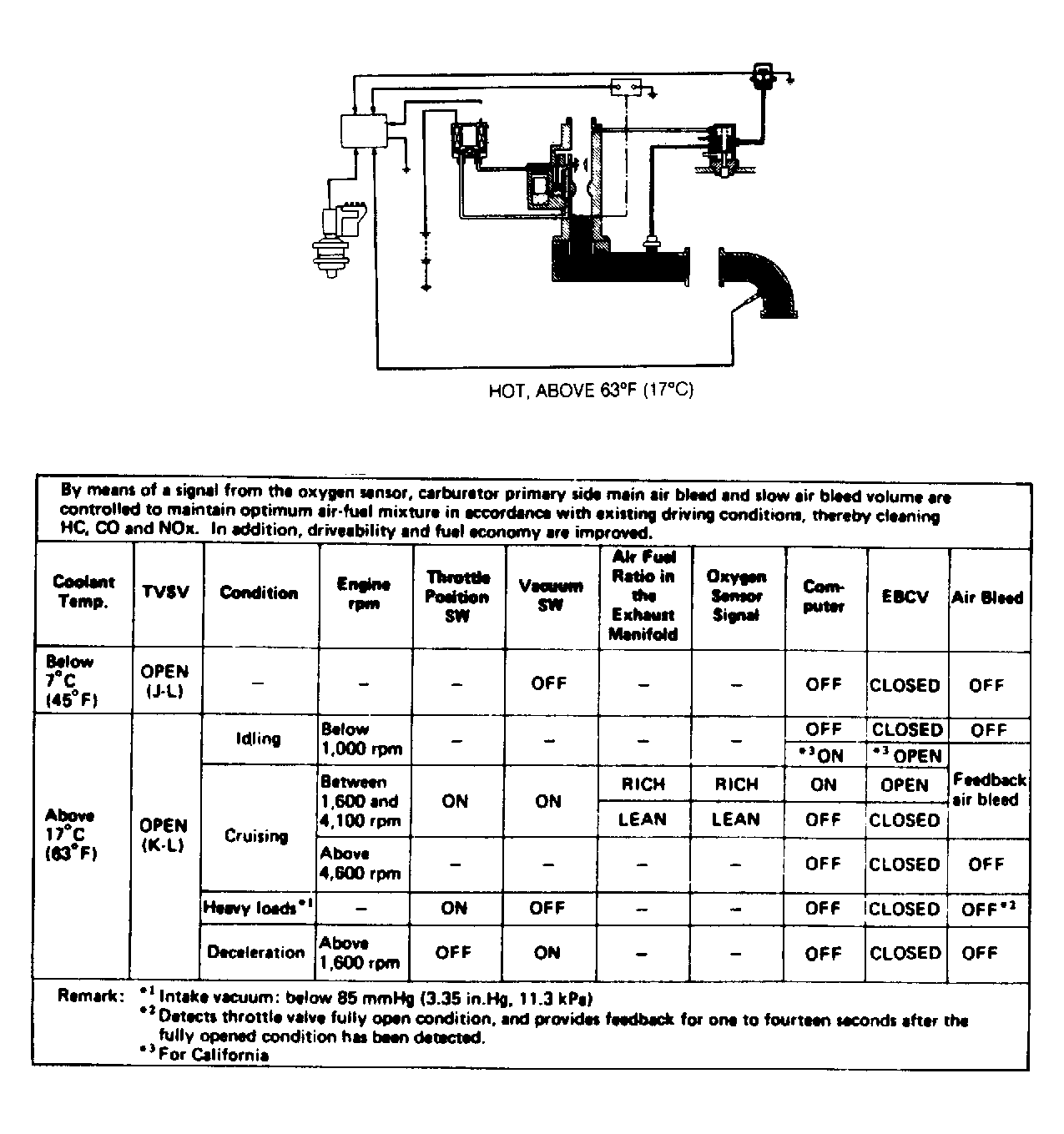

Fig 5: Corolla Carb bk Comp & Parameters (Hot, Above 63°F (17°C))

G119280

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

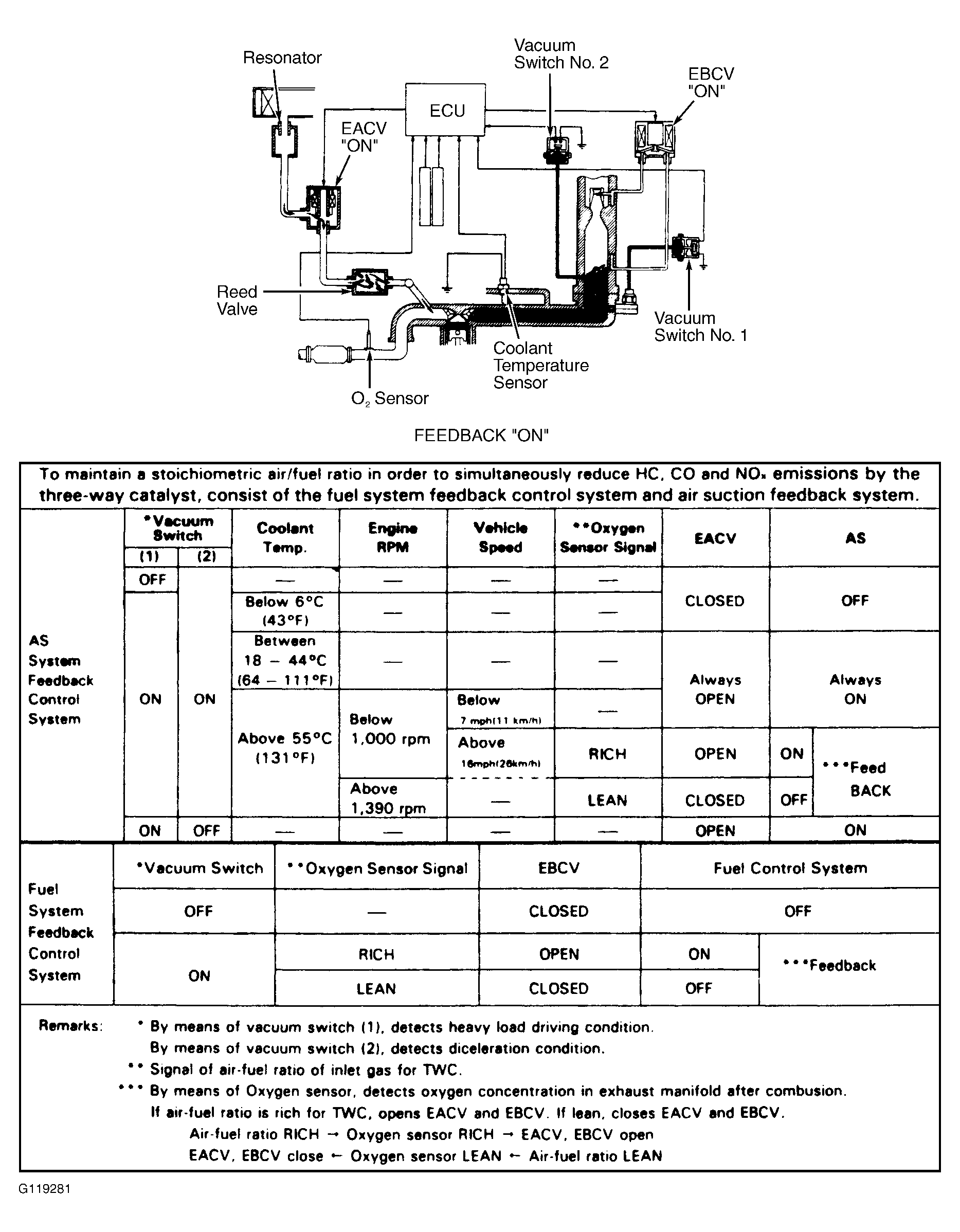

Fig 6: Pickup (22R Calif.) Carb bk Comp & Param (bk On)

G119281

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

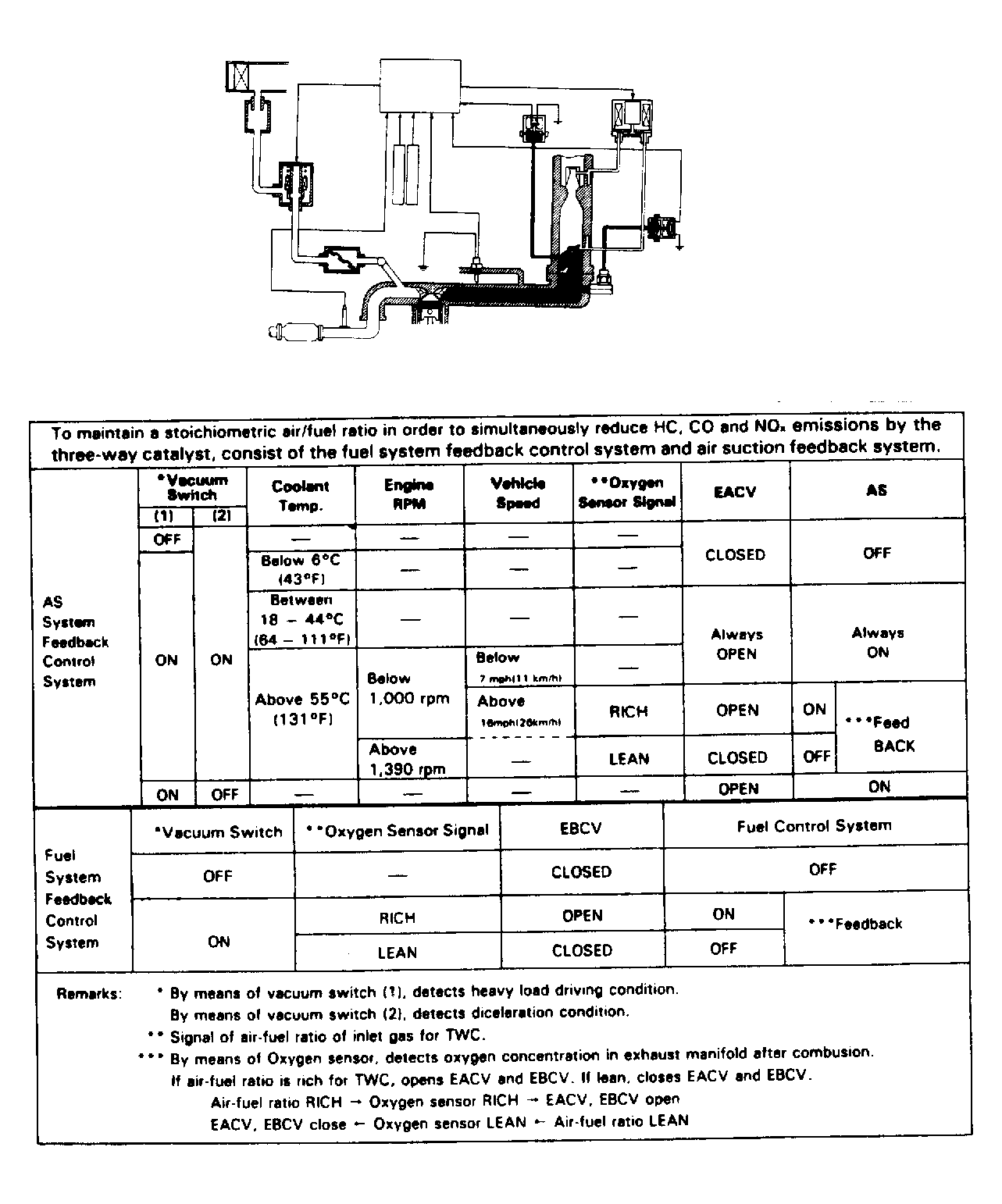

Fig 7: Pickup (22R Calif.) Carb bk Comp & Param (bk OFF)

G119282

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

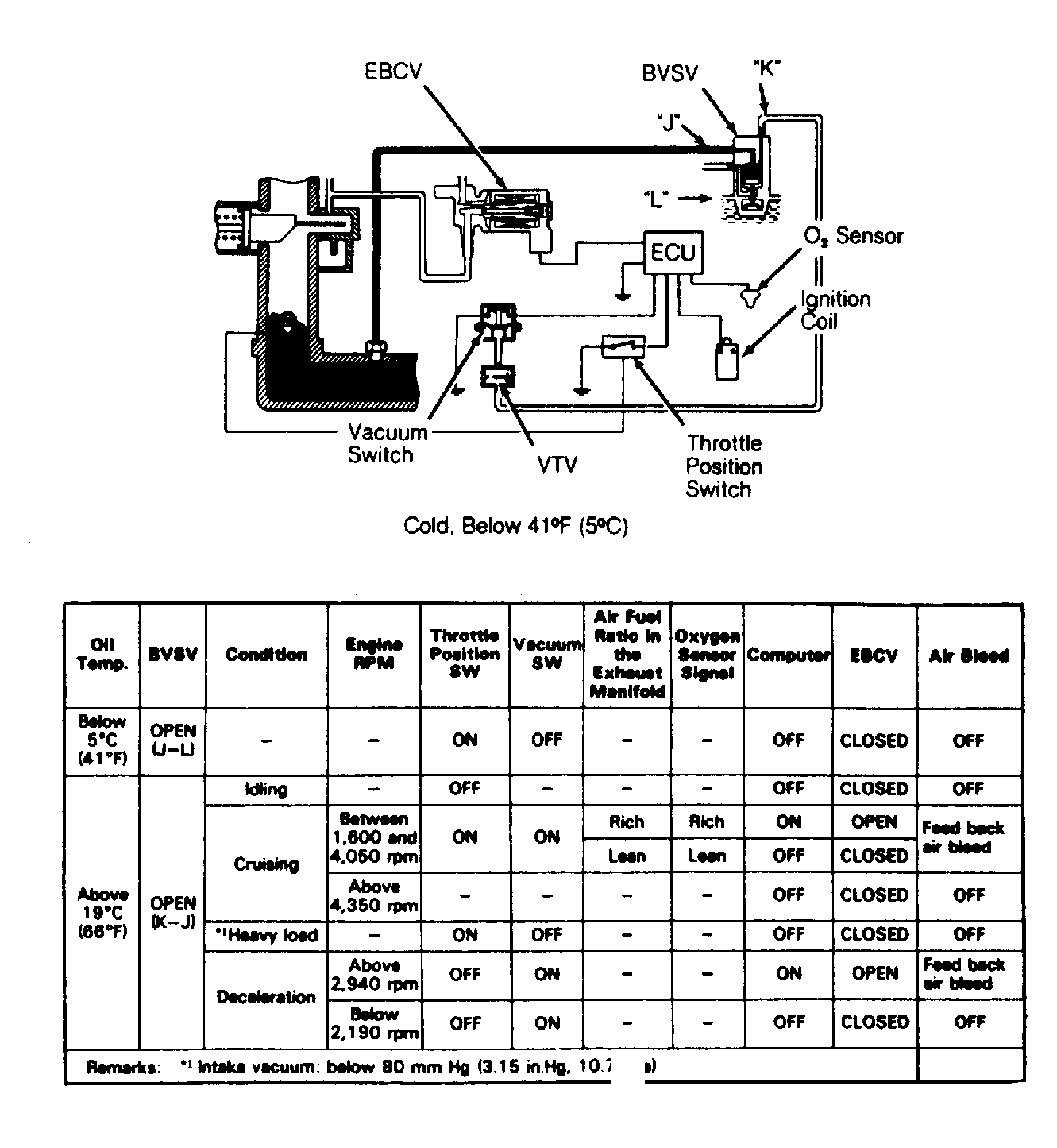

Fig 8: Tercel Carb Feedback Components & Parameters

G119283

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
