Fuel Injector Solenoid Resistor Test

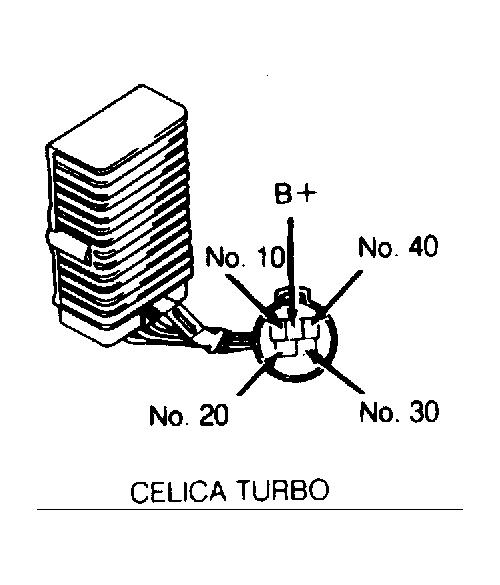

- The fuel injector solenoid resistor is located on the center of the firewall. Turn ignition off. Unplug injector solenoid resistor. Check resistance between terminal + B and other terminals. Resistance should be 4-6 ohms.
- If resistance is not as specified, replace solenoid resistor. If resistance is good, check power feed to fuel injector resistor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
