Fuel Pump Relay & Resistor Test

The fuel pump relay and resistor is located on the center of the firewall. To test relay, see Figure. To test resistor, see Fig 1. Replace relay or resistor if defective.

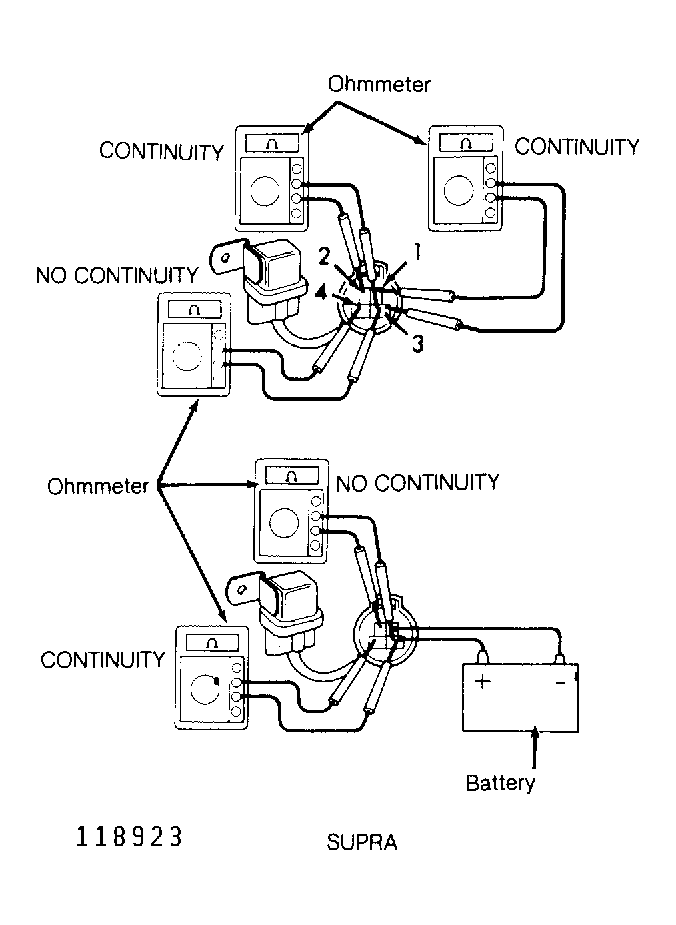

Fig 1: Testing Fuel Pump Relay
G118923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

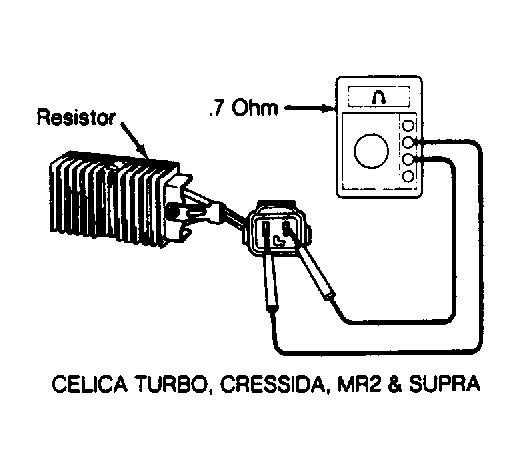

Fig 2: Testing Fuel Pump Resistor
G118924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
