Test 1 - Ecu Power Source

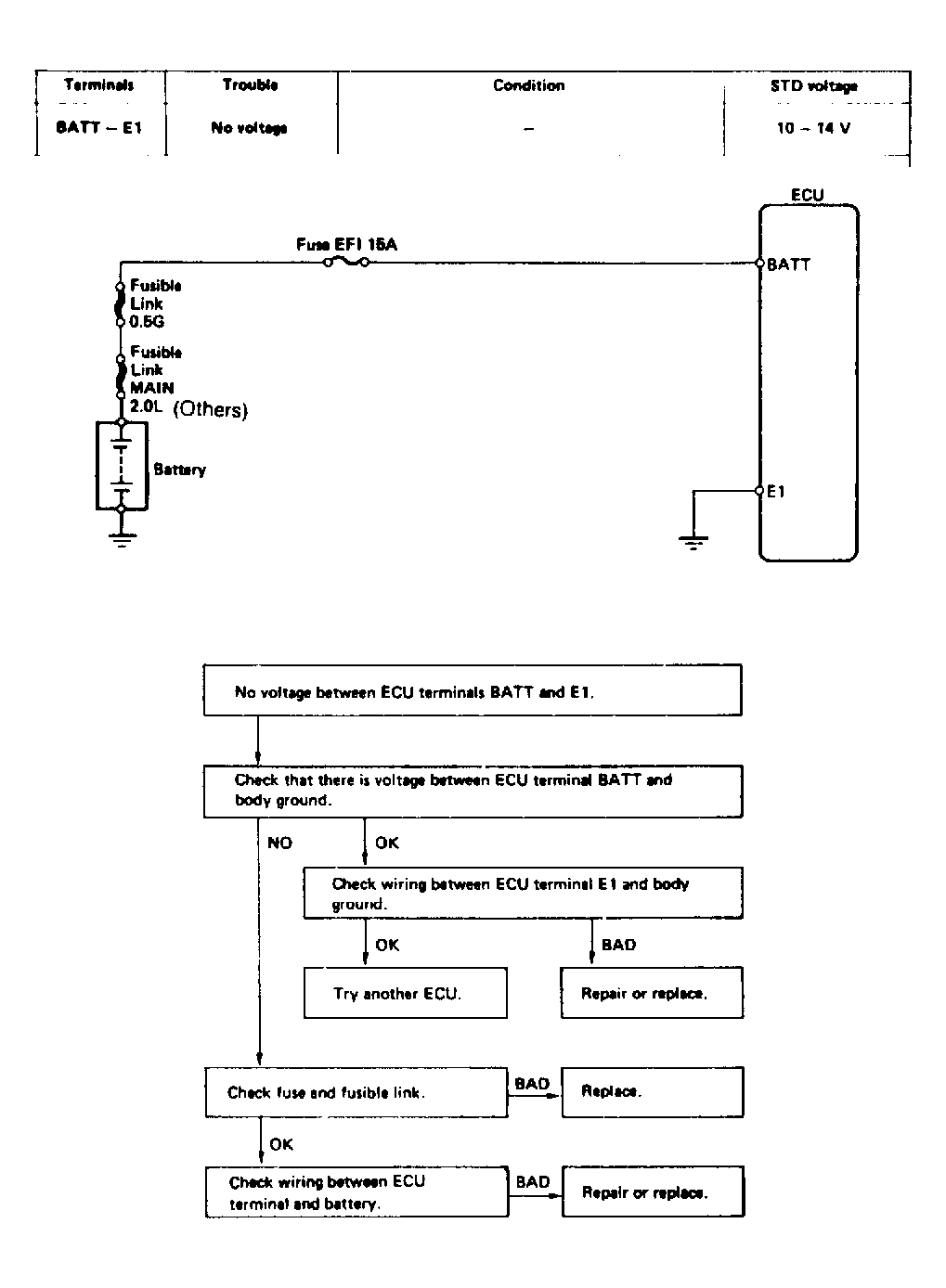

Fig 1: Test No. 1 - ECU Power Source Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
