Test 12 - Injector Circuit

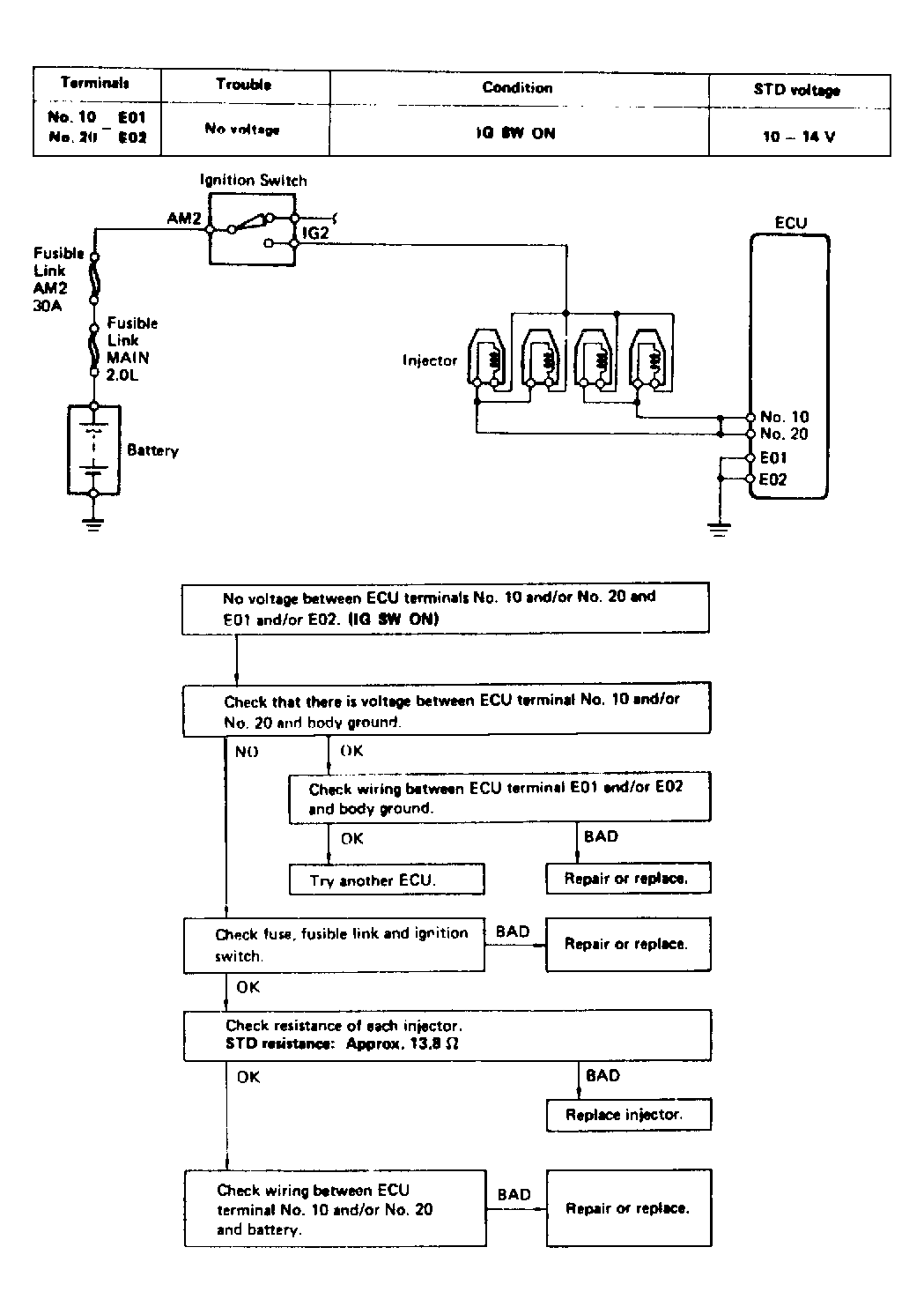

Fig 1: 3S-FE Test No. 12 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

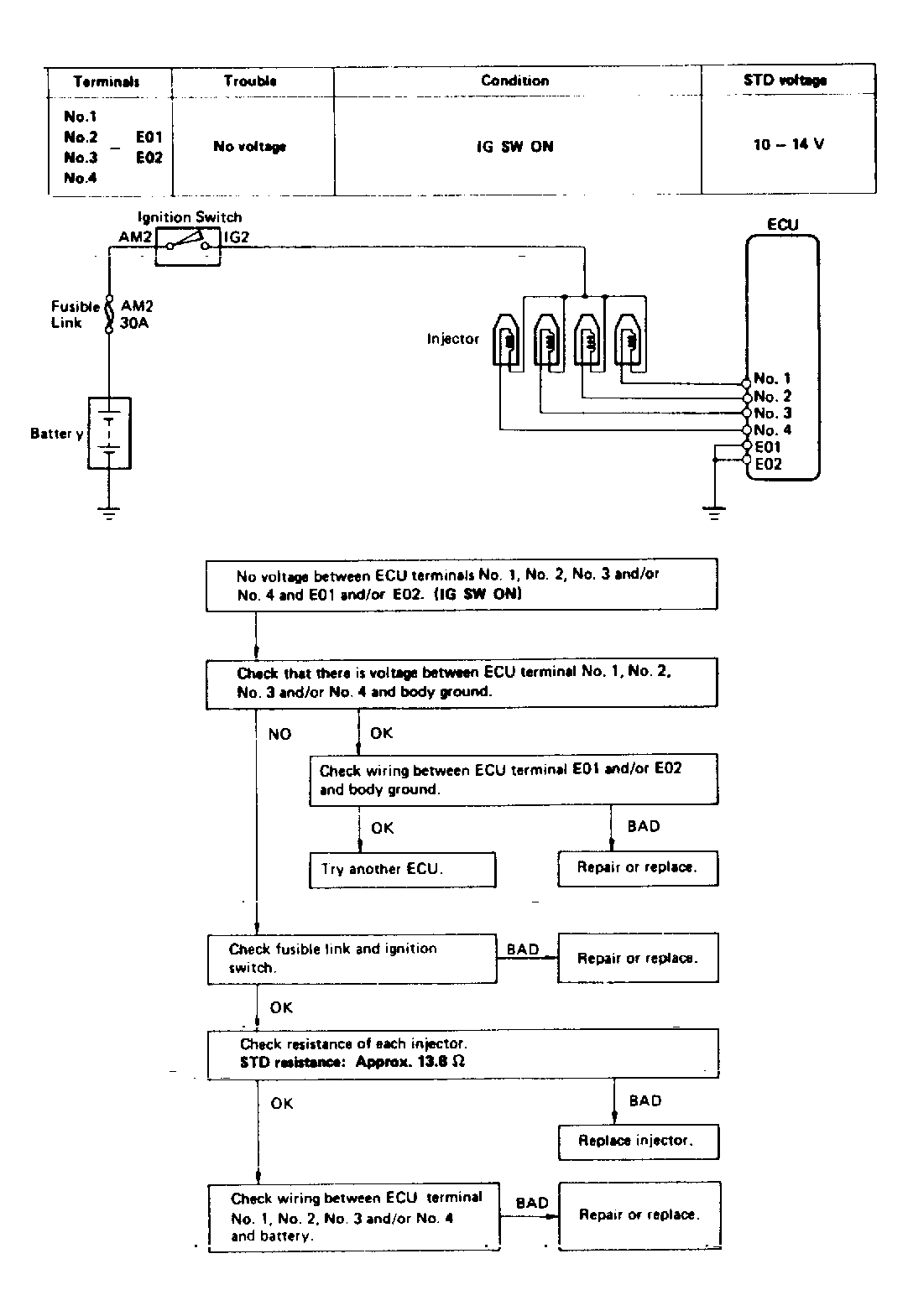

Fig 2: 3S-GE Test No. 12 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

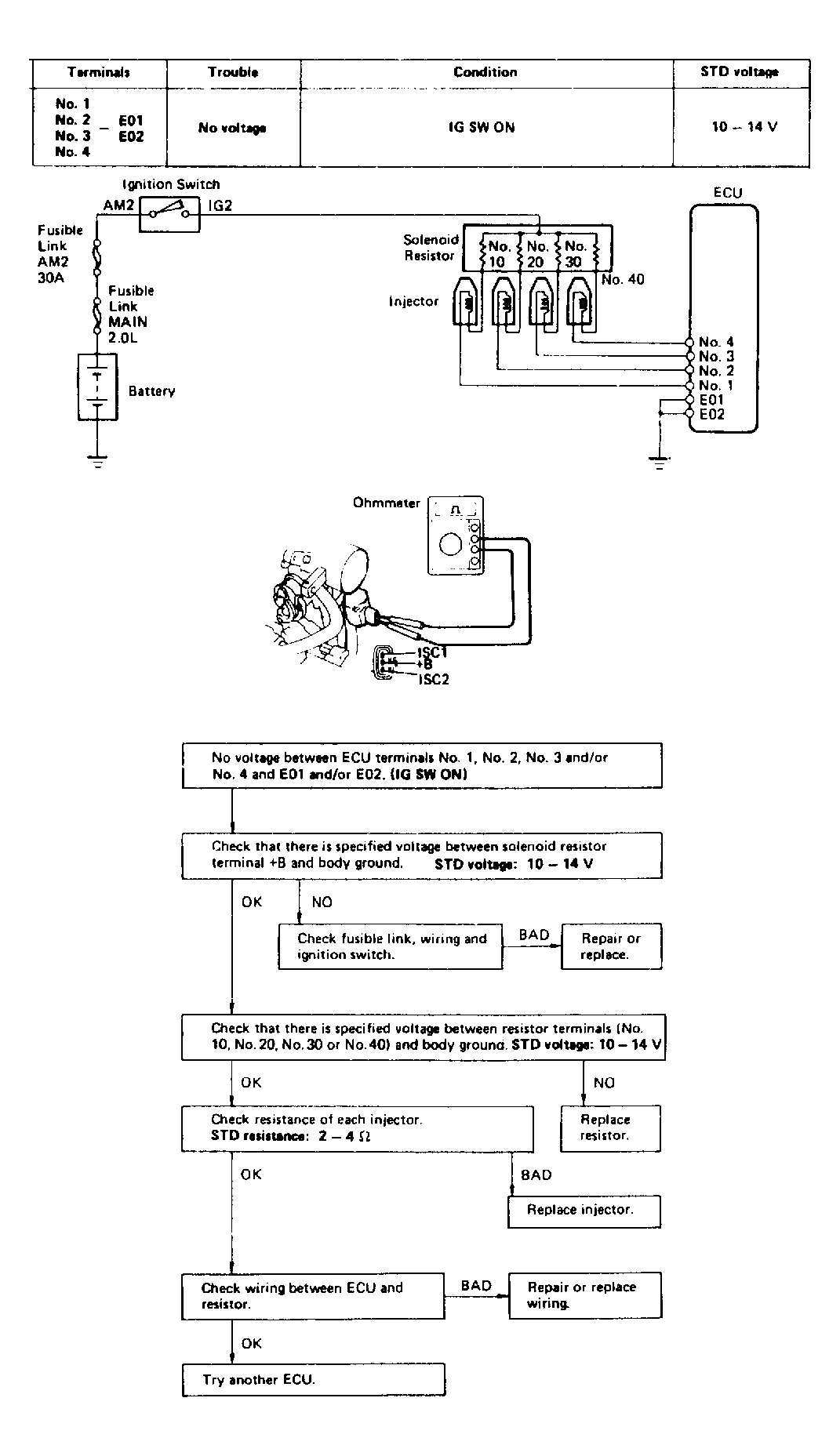

Fig 3: 3S-GTE Test No. 12 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
