Test 6 Or Code 24 - Intake Air Temp Sensor Signal

CODE 24/TEST NO. 6-IAT SENSOR SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
THA - E2	No Voltage	Ignition Switch ON Int. Air Temp. 20°C (68°F)	1.9 - 2.9V

Fig 1: Test No.6 or Code 24 Circuit Diagram

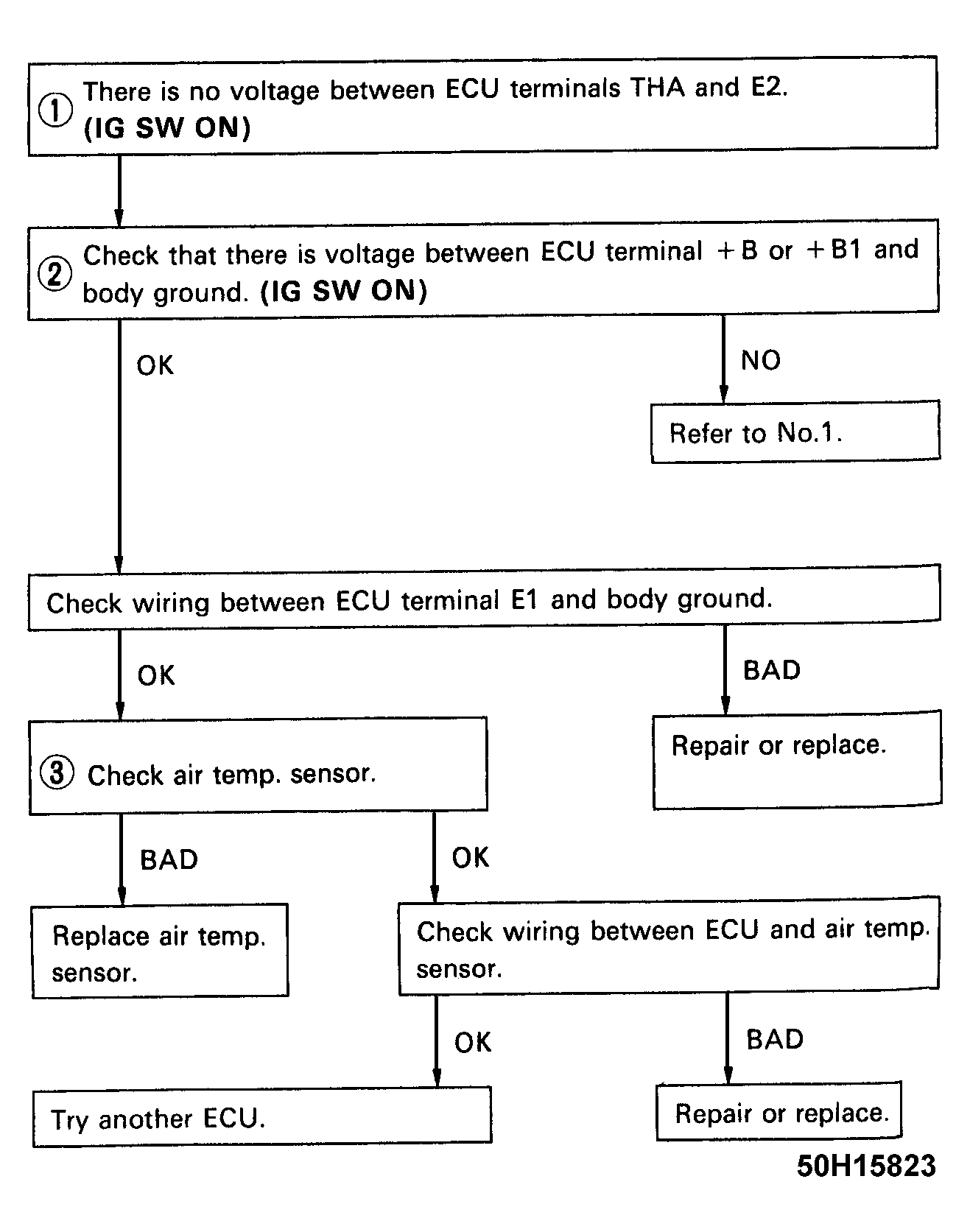

Fig 2: Test No.6 or Code 24 Diagram & Flow Chart
