Throttle Position Sensor (TPS) Signal

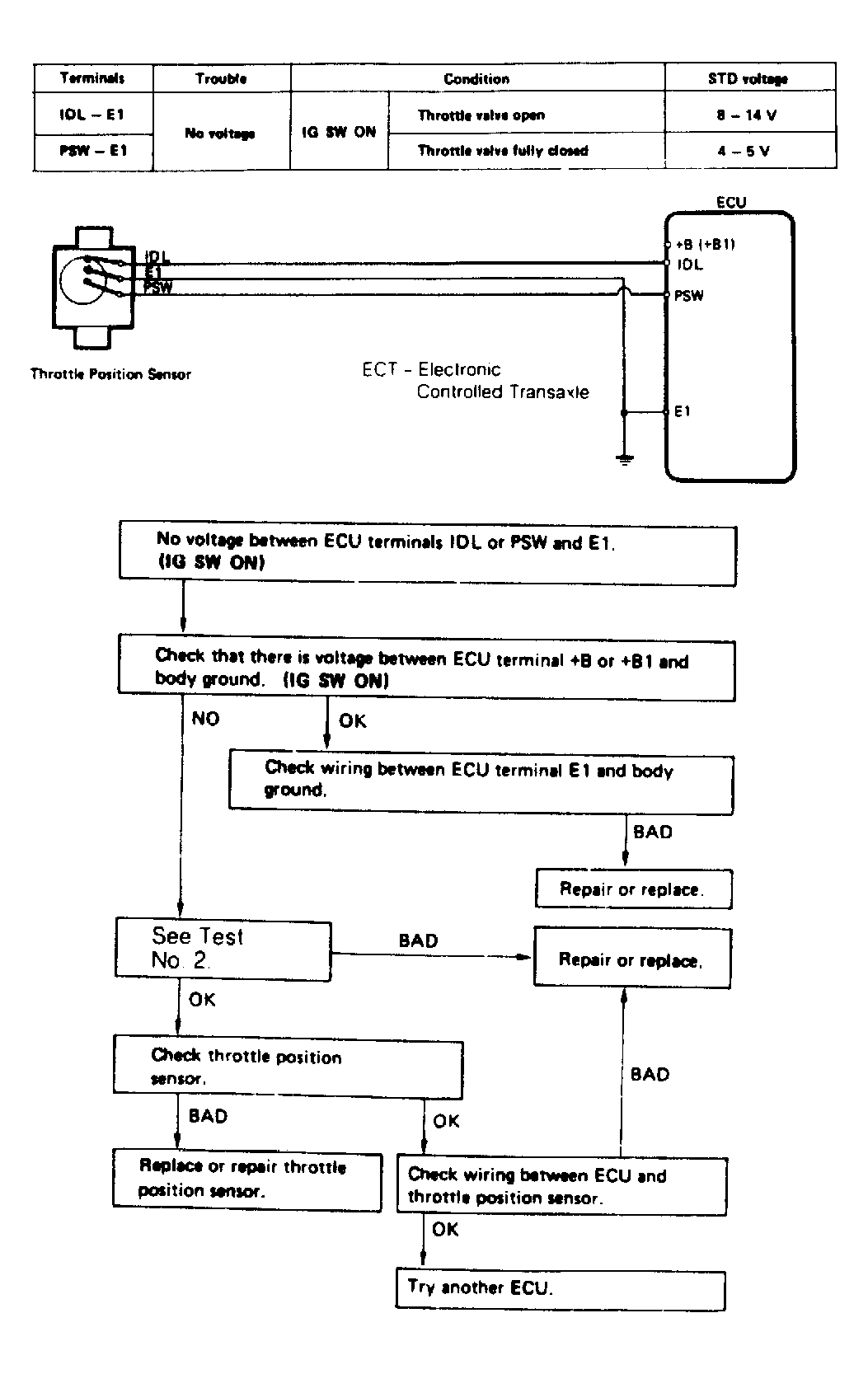

Fig 1: 3S-FE Test No.9 or Code 41 Diagram & Flow Chart
G118651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

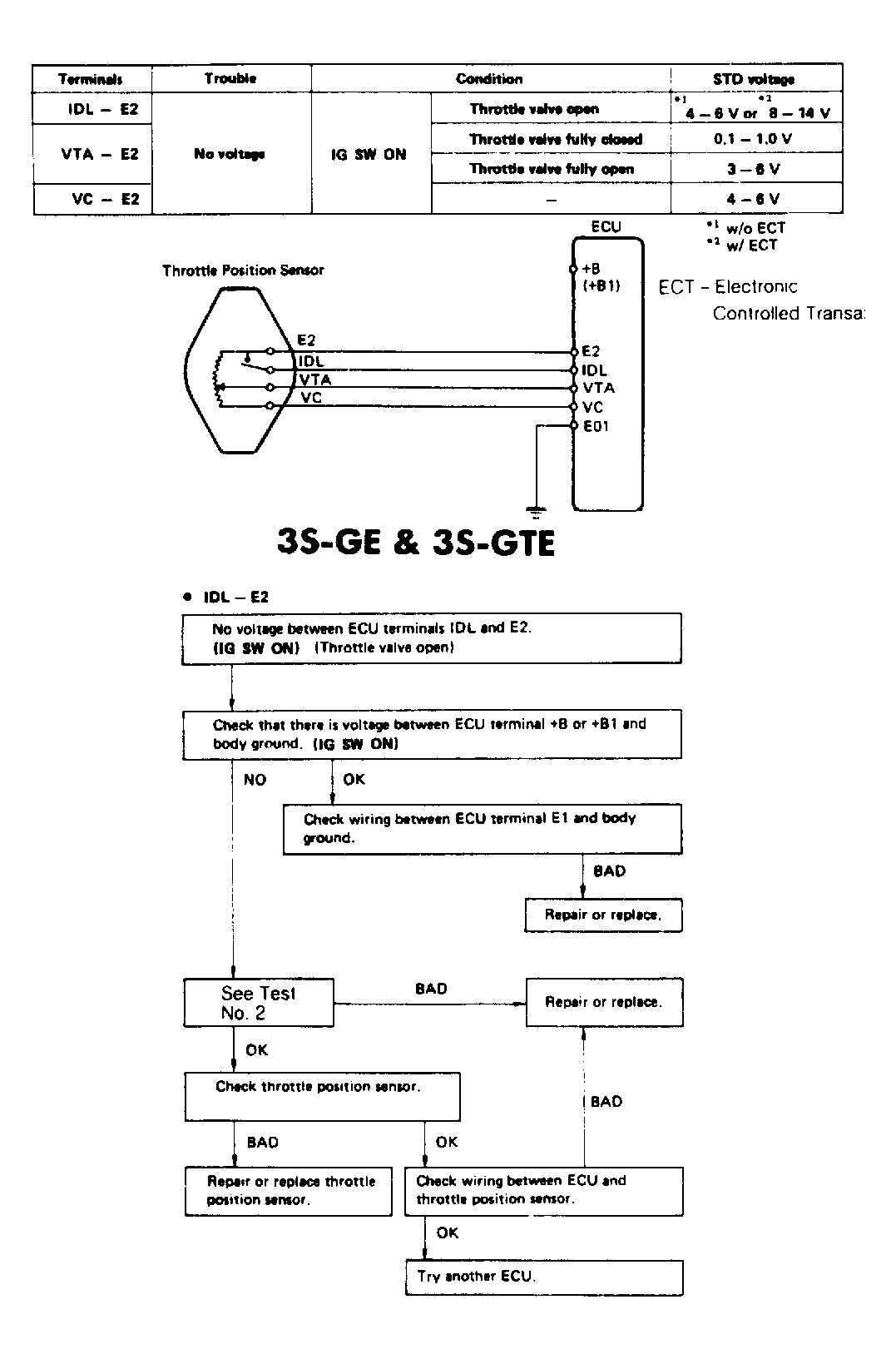

Fig 2: 3S-GE & 3S-GTE Test No.9 or Code 41 Diagram & Flow Chart (1 of 3)
G118652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

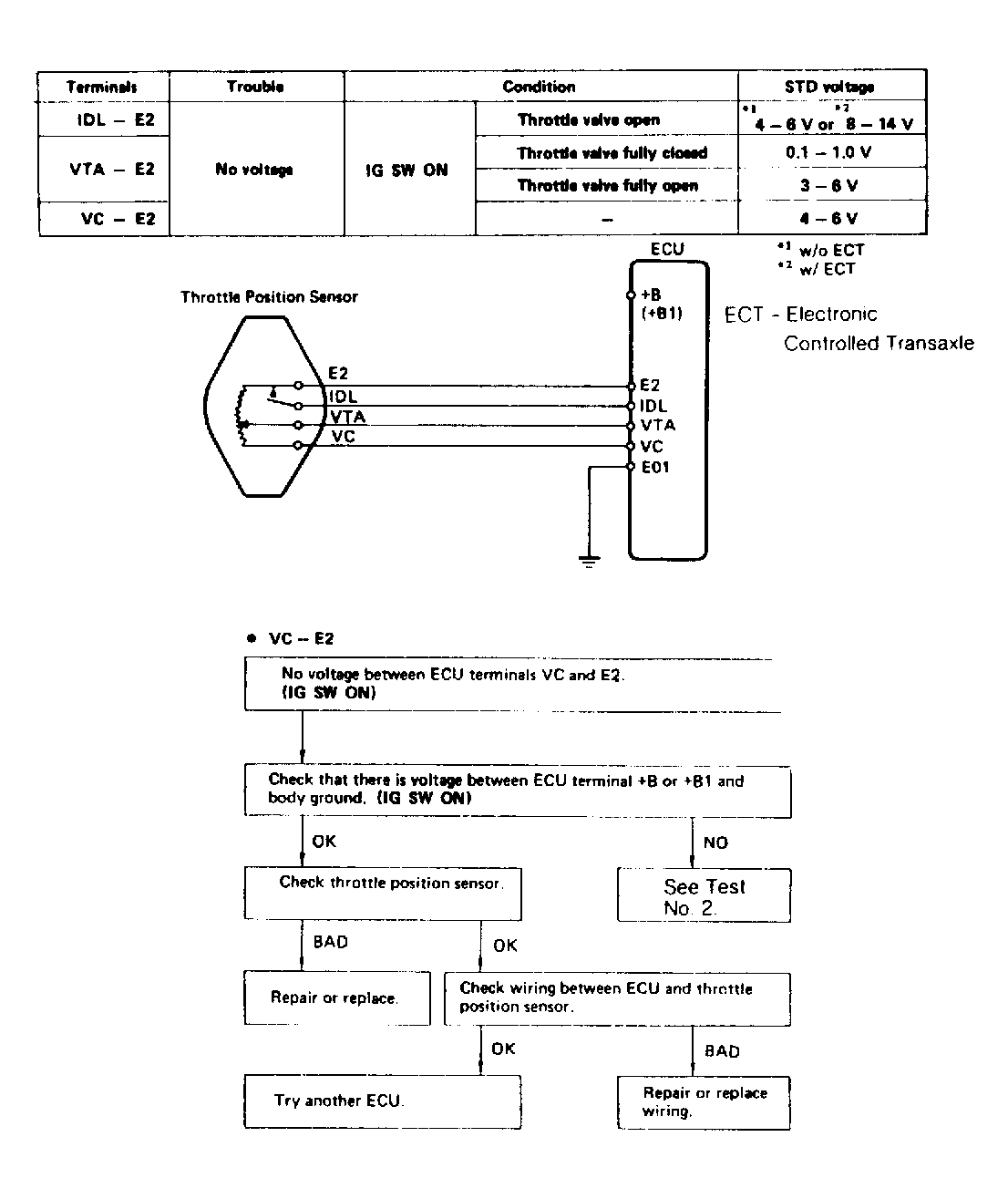

Fig 3: 3S-GE & 3S-GTE Test No.9 or Code 41 Diagram & Flow Chart (2 of 3)
G118653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

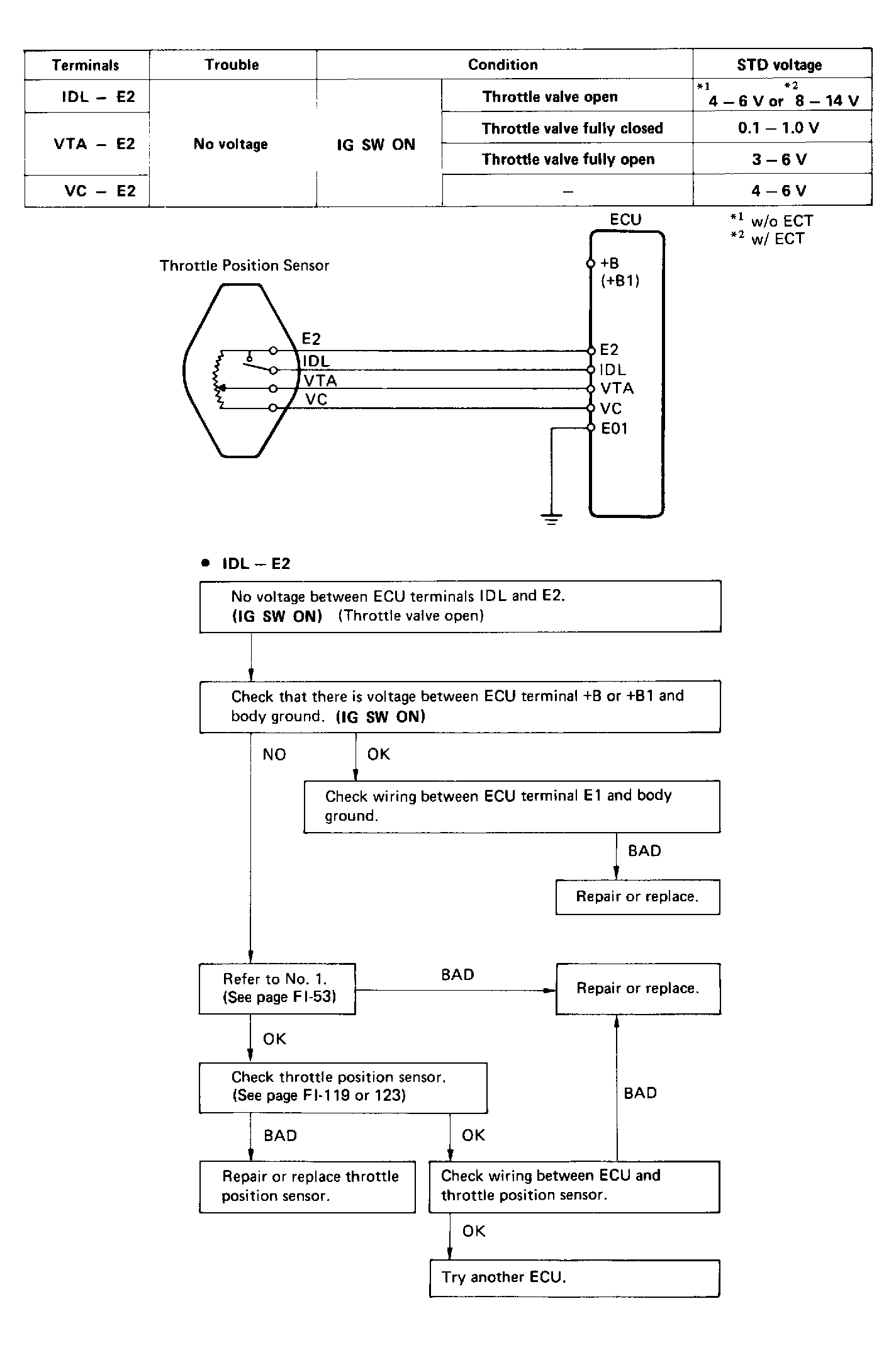

Fig 4: 3S-GE & 3S-GTE Test No.9 or Code 41 Diagram & Flow Chart (3 of 3)
G118654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
