Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

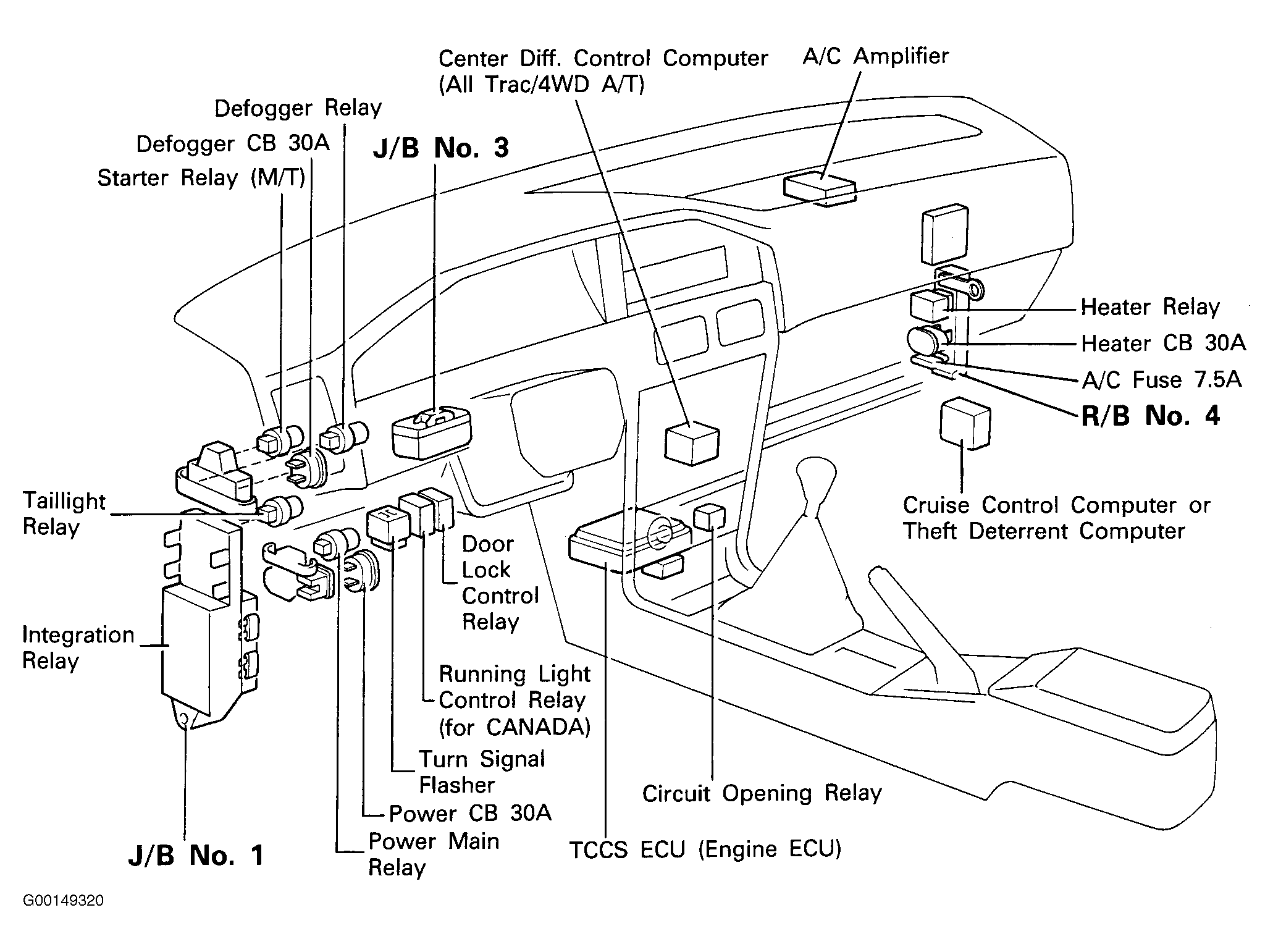

| Cruise Control ECU | Behind Right Side Of Instrument Panel. See Fig 1. |
| Diode D14 (Auto. Trans.) | Behind Far Left Side Of Instrument Panel, Above J/B No. 1 |
| Ground EA | In Engine Compartment, Right Front Fender Apron |
| Ground EC | In Engine Compartment, Left Front Fender Apron |
| Ground IE | Behind Center Of Instrument Panel, To Left Of A/C Heater Controls |
| Ground IF | Behind Center Of Instrument Panel, To Right Of A/C Heater Controls |
| Ground IG | Behind Right Kick Panel, On Relay Block Set Bolt |

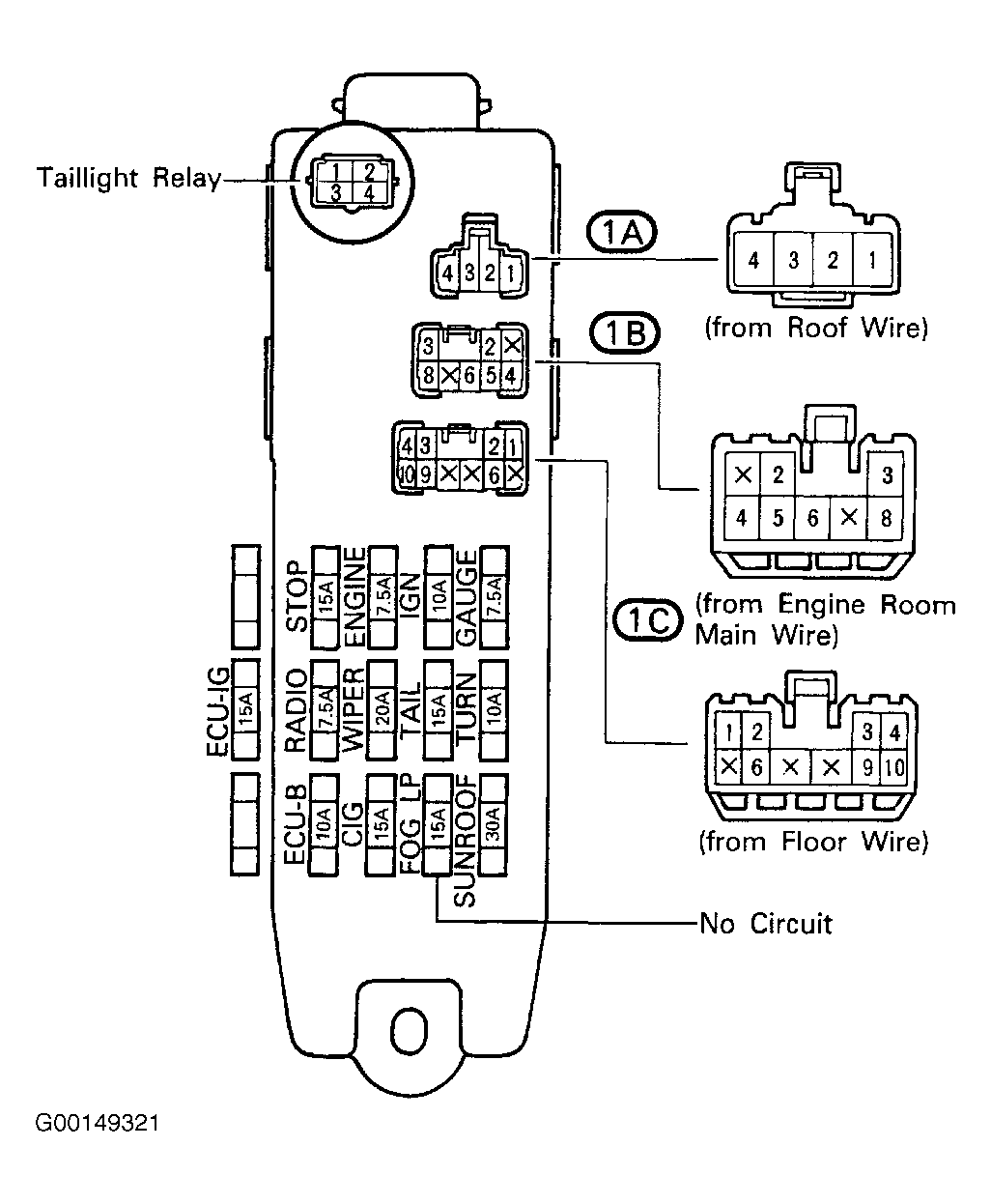

| Junction Block (J/B) No. 1 | Behind Left Side Of Instrument Panel. See Fig 1. |
| Junction Block (J/B) No. 3 | Behind Instrument Panel, To Left Of Steering Column. See Fig 1. |
| Neutral Start Switch (Auto. Trans.) | On transaxle. See Fig 3. |
| Speed Sensor | Mounted On Instrument Cluster |
