Test 11 - Idle Speed Control Circuit

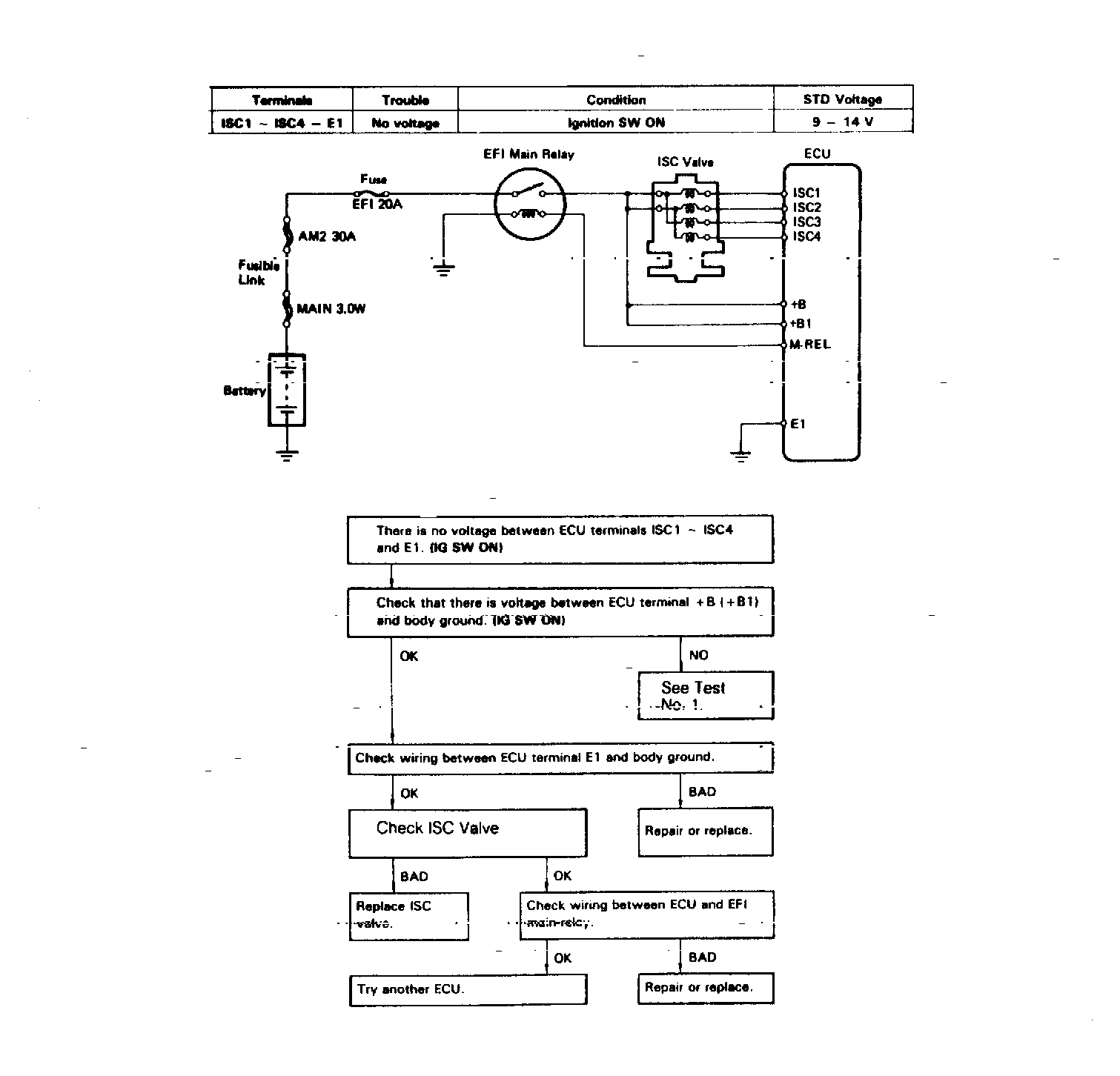

Fig 1: Test No. 11 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
