Test 3 Or Code 22 - Coolant Temperature Sensor Signal

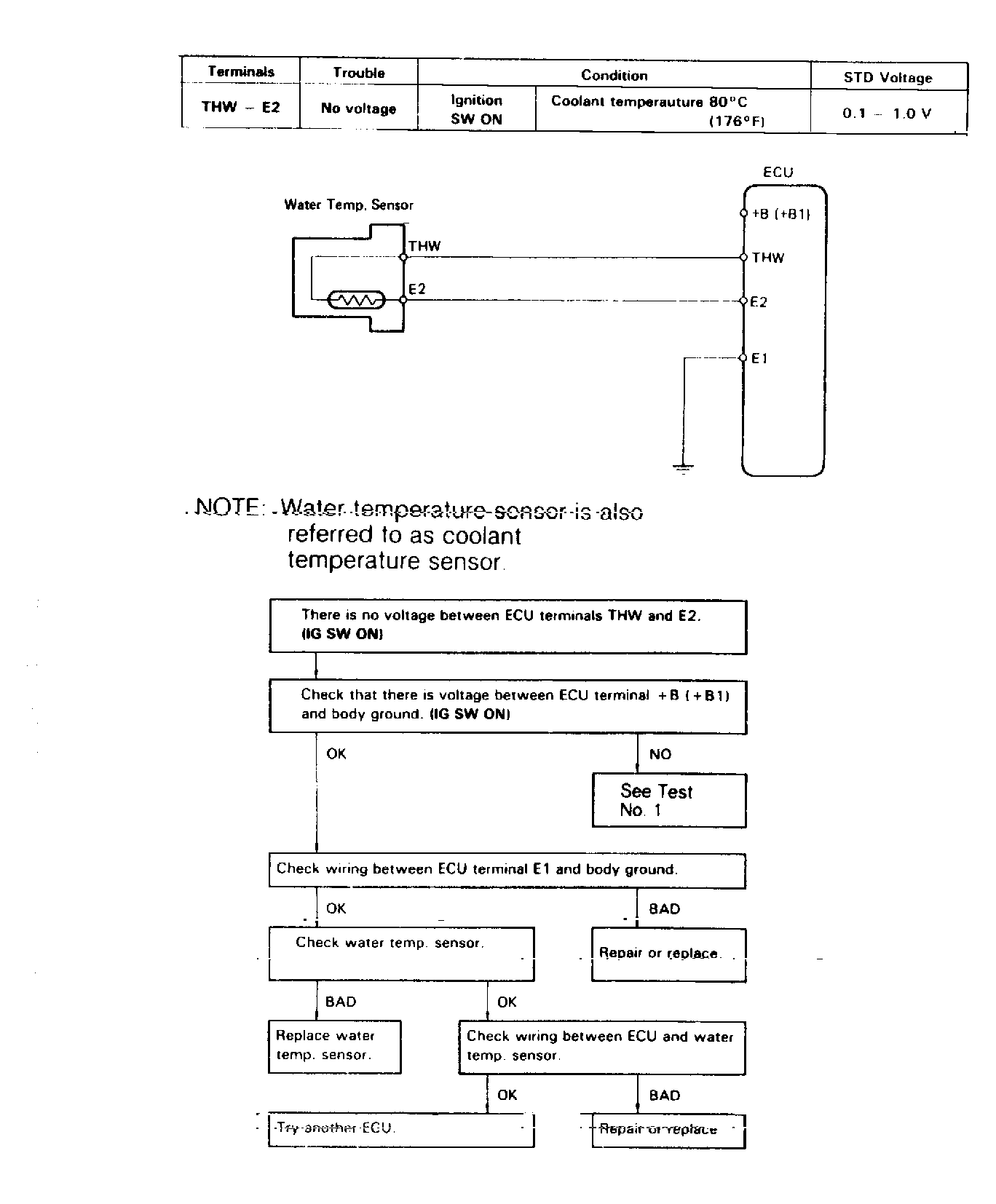

Fig 1: Test No.3 or Code 22 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
Diagnostic chart not available from manufacturer.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
