Power Mirror Control Switch

Test power mirror control switch continuity between specified terminals. See Fig 1. If continuity is not as specified, replace the switch.

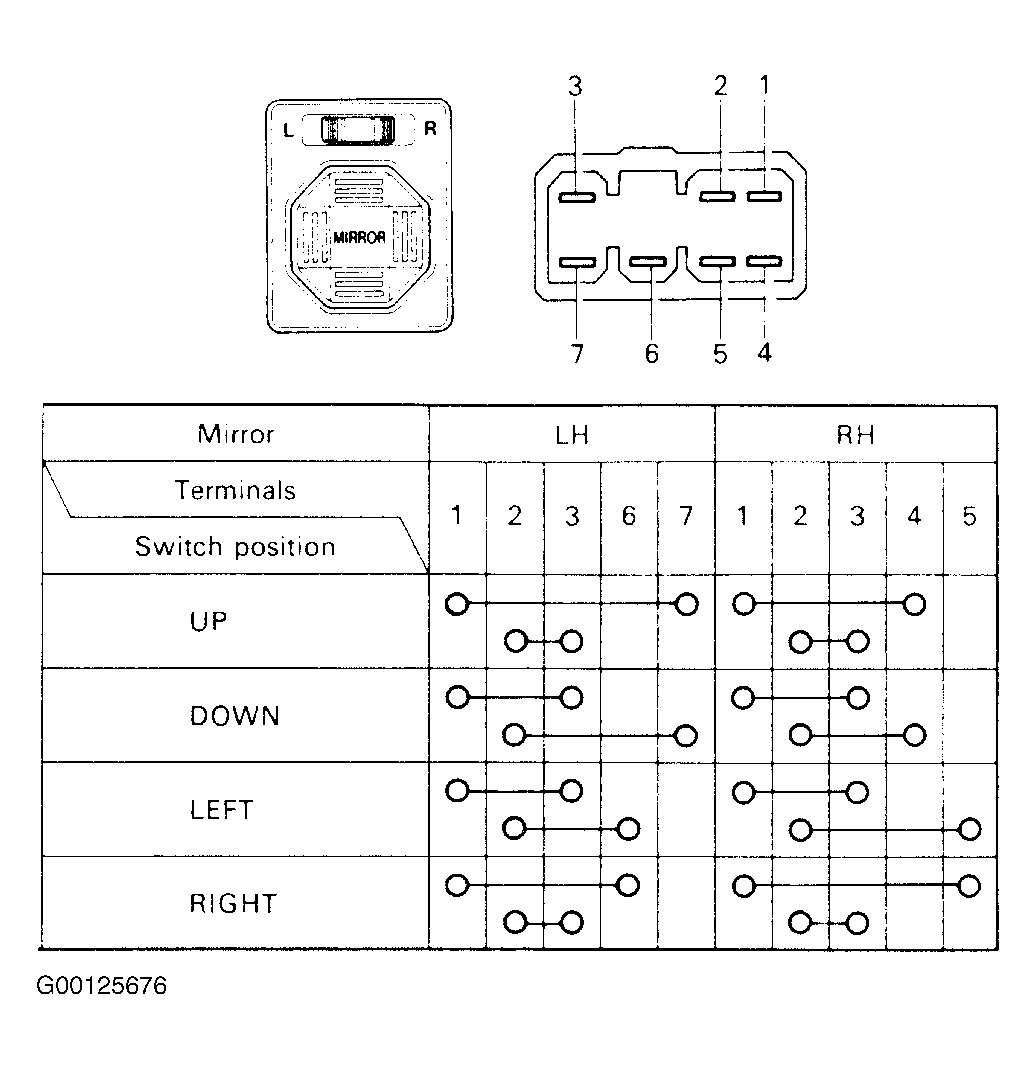

Fig 1: Testing Power Mirror Control Switch Continuity
G00125676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
