Test 5 Or Code 24 - Intake Air Temp Sensor Signal

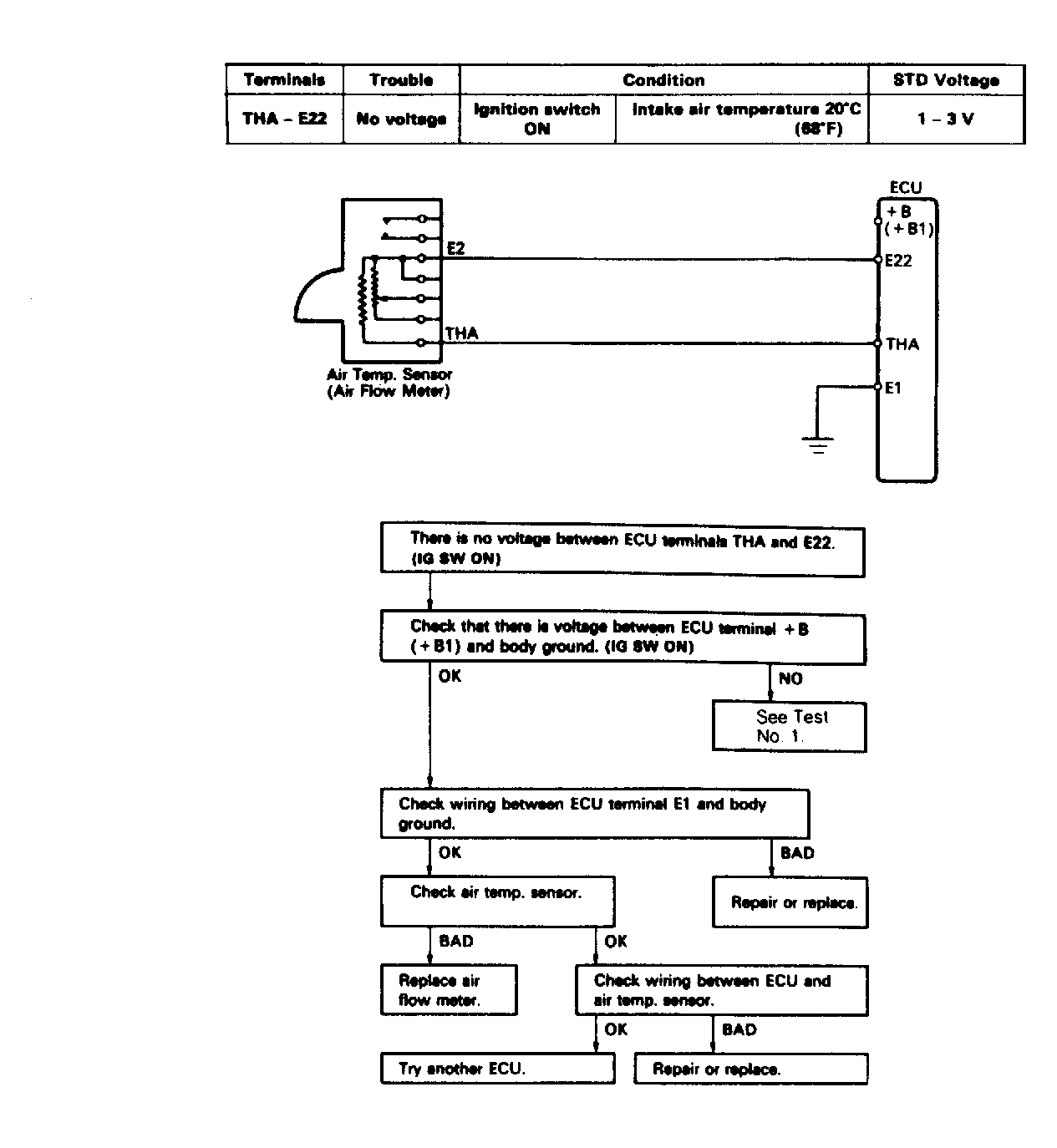

Fig 1: Test No. 5 or Code 24 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
