Emission: PCV System: Overview

To reduce HC emissions, crankcase blow-by gas (HC) is routed through the PCV valve to the intake manifold for combustion in the cylinders.

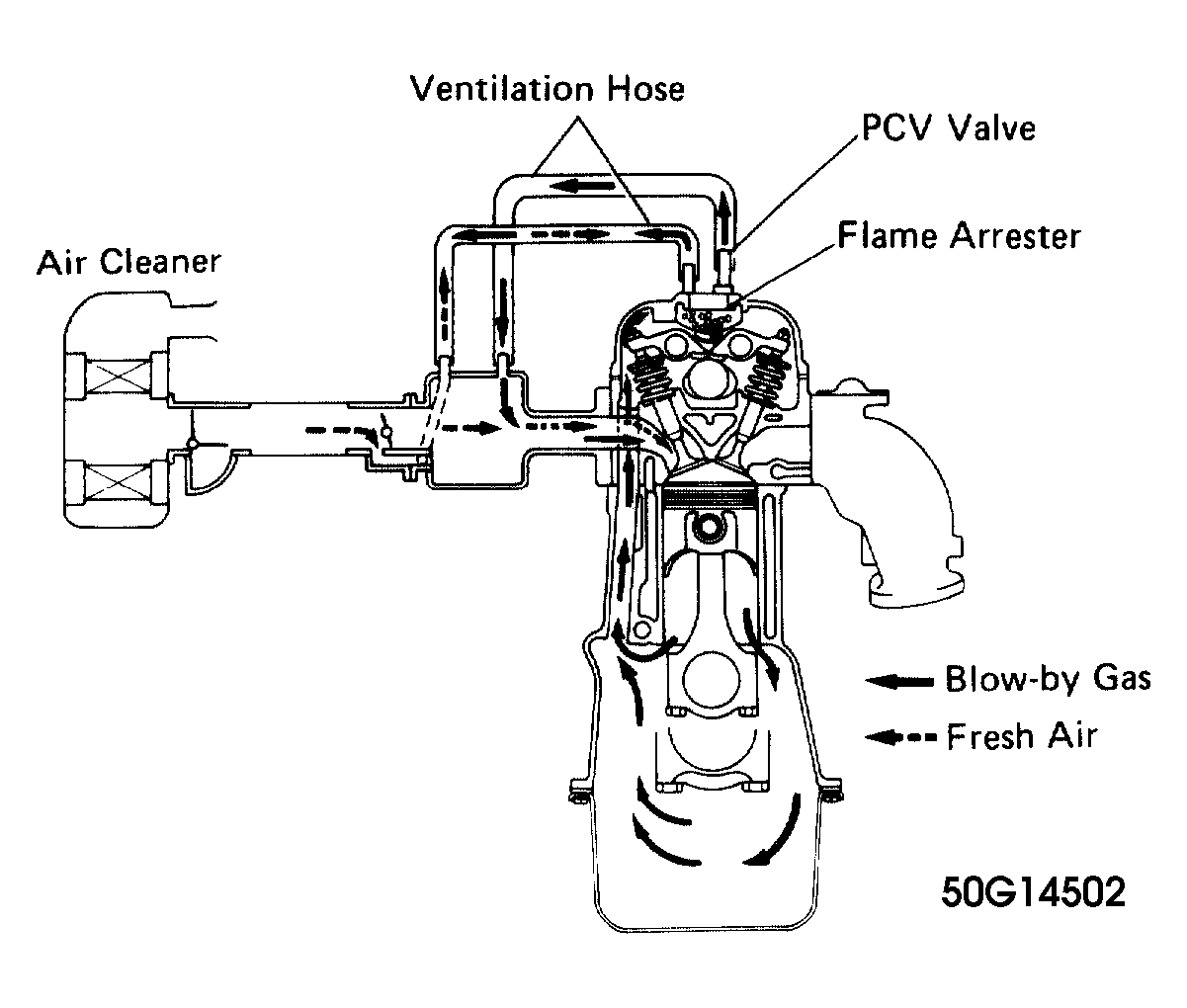

Fig 1: Overview Of Entire PCV System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

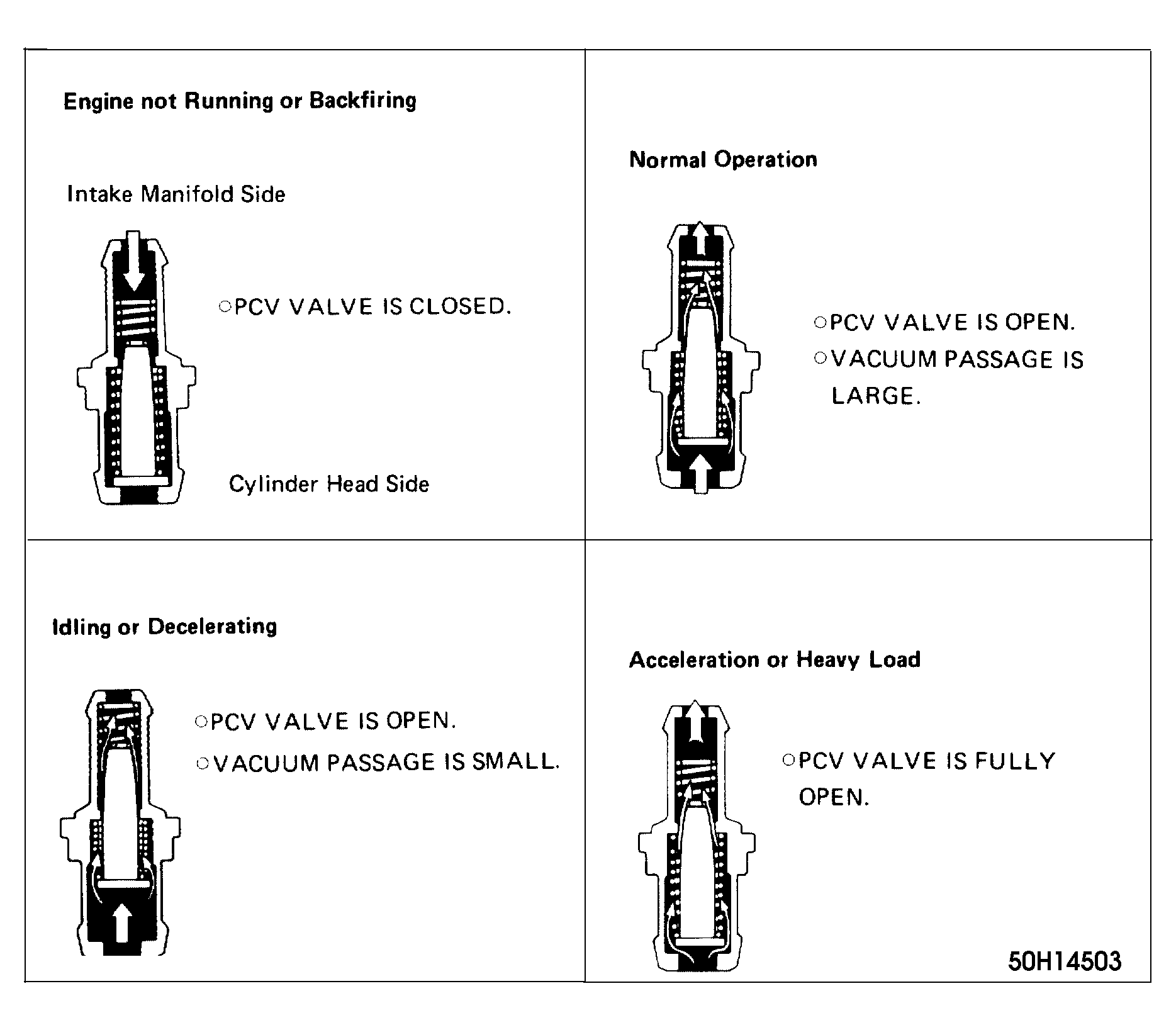

Fig 2: Operation Of PCV Valve Under Different Circumstances

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
