Component Locations

For component locations, refer to illustrations. See Fig 1-Fig 3 .

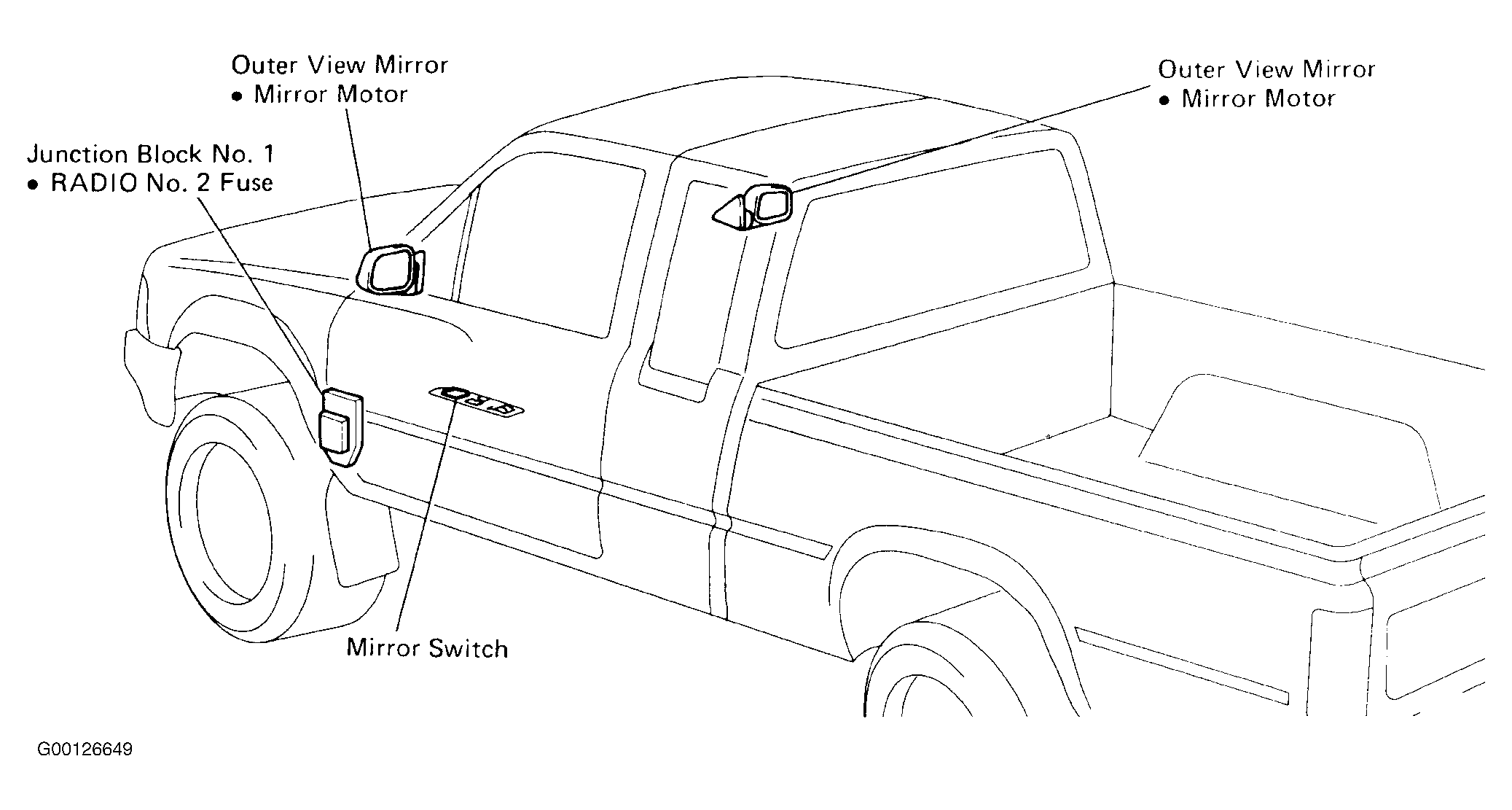

Fig 1: Locating Power Mirror Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

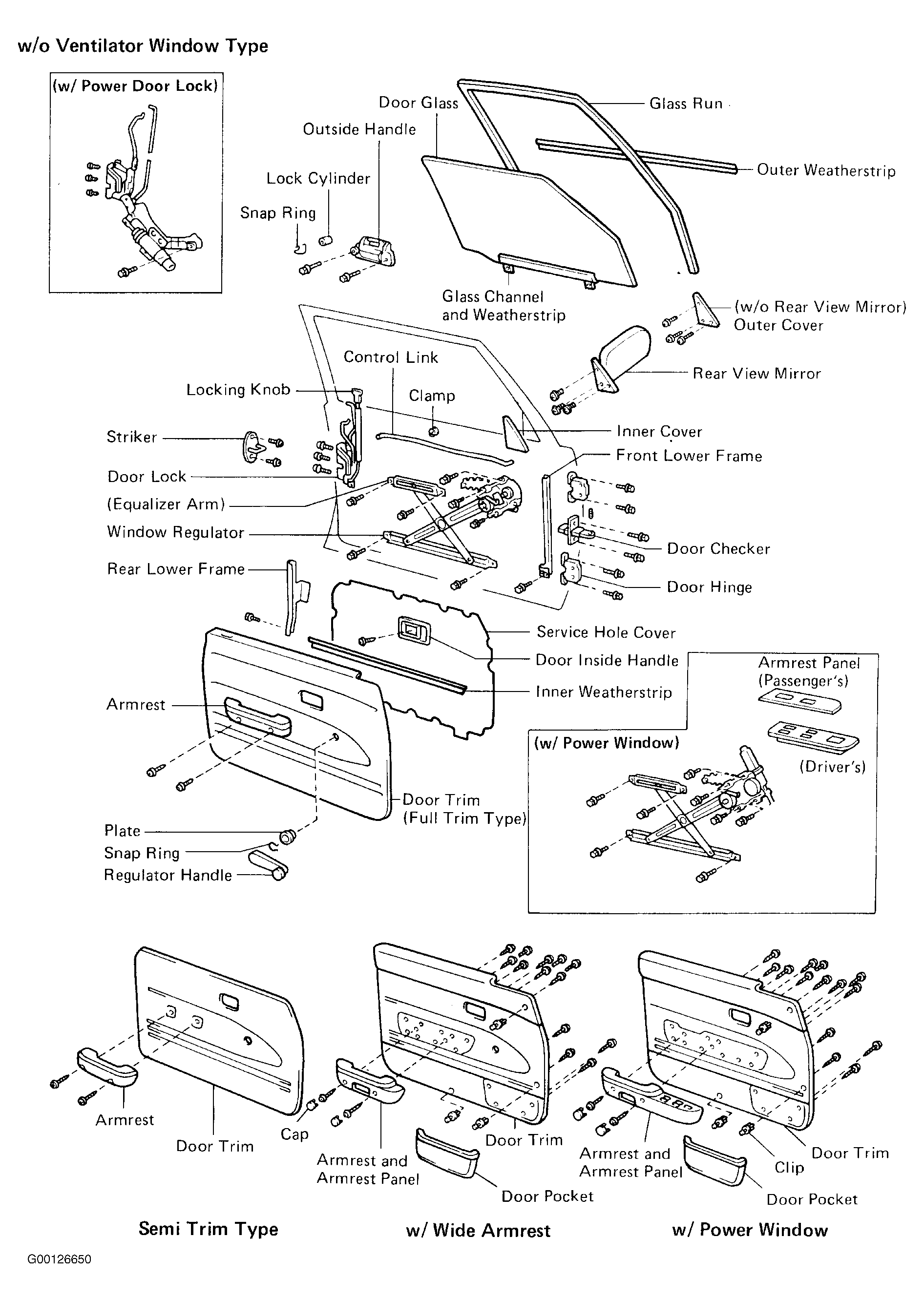

Fig 2: Exploded View Of Front Door Components (Without Ventilator Window)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

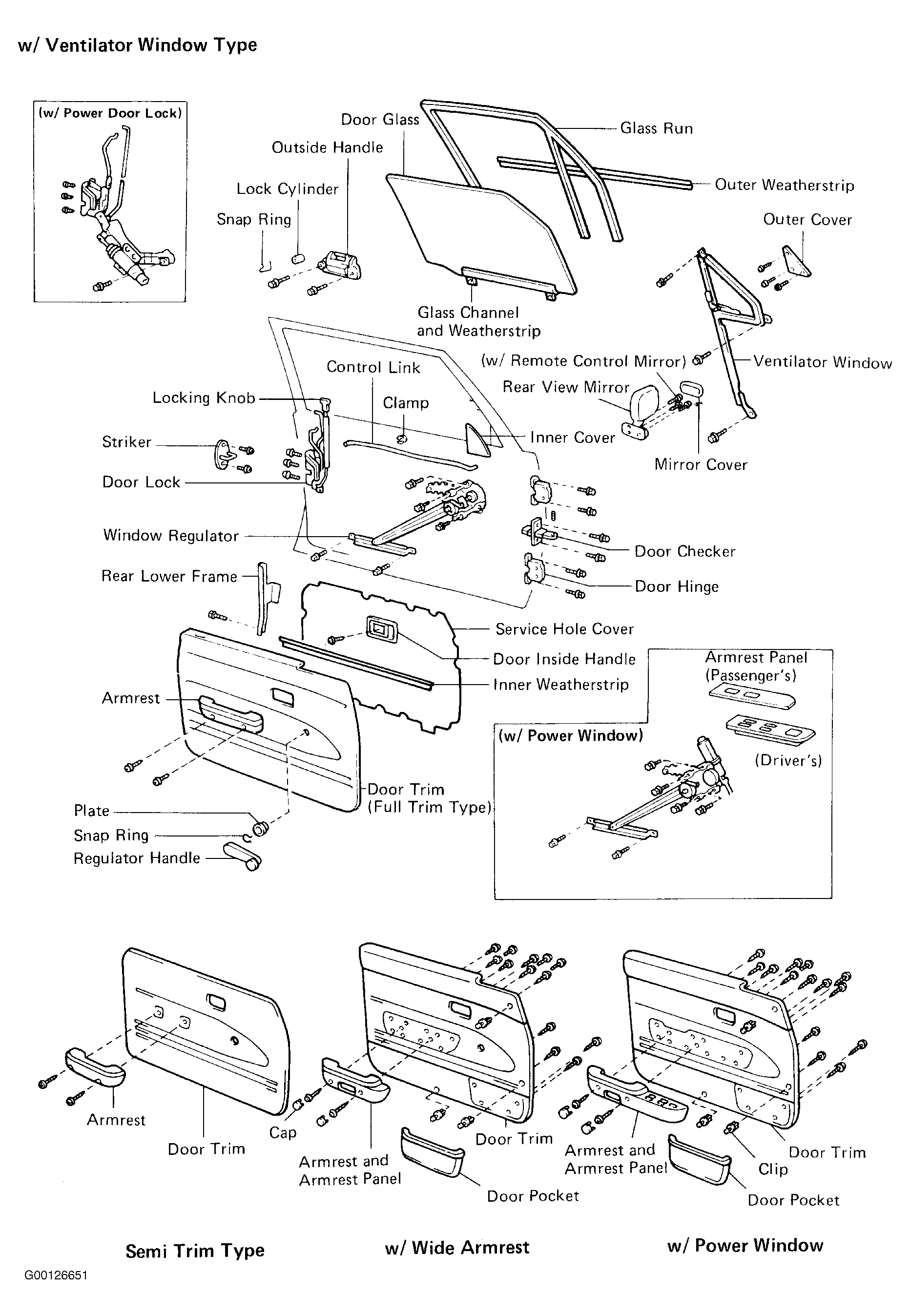

Fig 3: Exploded View Of Front Door Components (With Ventilator Window)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
