Speed Sensor: Installation
- If removed, install the differential carrier assembly.

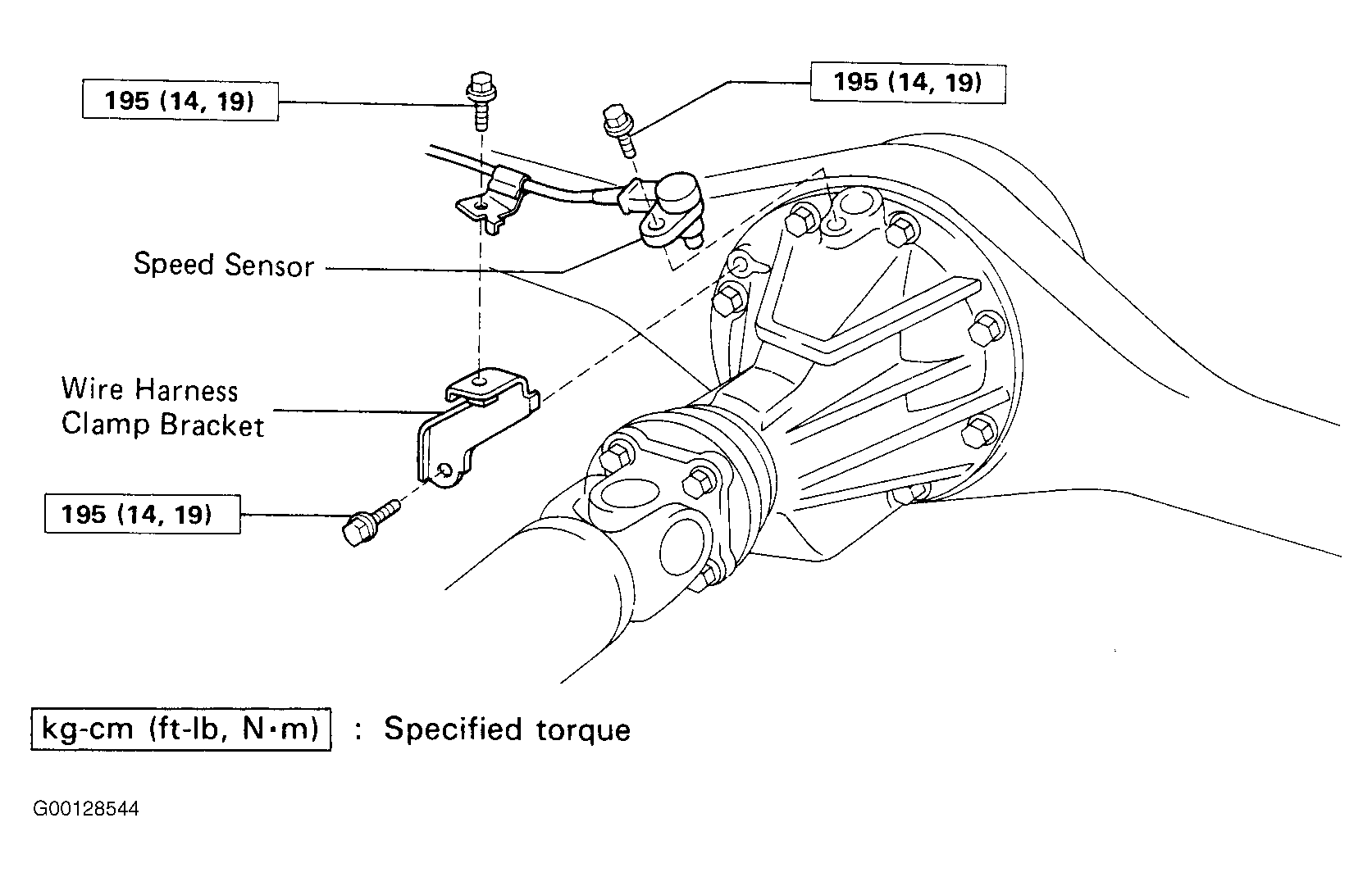

- Install the speed sensor and tighten the installation bolt. See Fig 1. See TORQUE SPECIFICATIONS .
- Set the speed sensor wire harness clamp in place and tighten the clamp bolt.
